Garmin G3X Touch
™
Pilot’s Guide for Certified Aircraft
190-02472-00 Rev. D
288
Additional Features
System
Overview
Flight
InstrumentsEIS
CNS
Interface
GPS
Navigation
Flight
Planning
Hazard
Avoidance
Additional
FeaturesAFCSAnnun/AlertsAppendixIndex

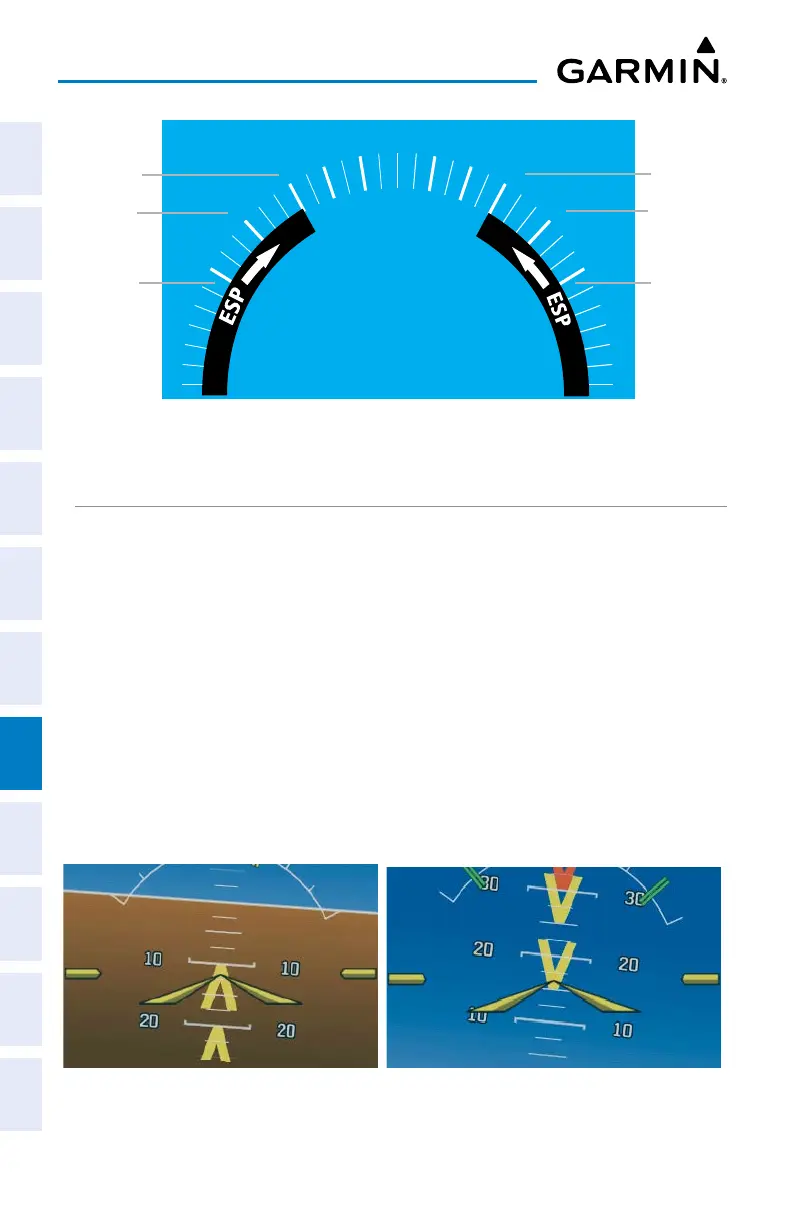

ESP Roll Operating Range When Engaged
(Force Increases as Roll Increases & Decreases as Roll Decreases)
0º
10º
10º
20º
20º
30º
30º
45º
45º
60º
60º
75º
75º
90º
90º
Configured
Bank Limit
(45
º)
Minimum
ESP Torque
(30
º)
Maximum
ESP Torque
(60
º)
Maximum
ESP Torque
(60
º)
Minimum
ESP Torque
(30
º)
Configured
Bank Limit
(45
º)
PITCH ENGAGEMENT
ESP pitch engagement is configurable between 10º and 25º nose-up and between
5º and 25º nose-down. Once engaged, the torque applied by ESP is at its maximum
when pitch is 5º more than the configured nose-up and nose-down pitch limits, and
tapers to the minimum applied torque when pitch is 5º less than the configured nose-
up and nose-down pitch limits. When beyond 5º of the configured pitch limit, the
maximum torque is held until the aircraft returns inside the protected envelope.
The opposing force increases or decreases depending on the pitch angle and the
direction of pitch travel. This force is intended to encourage movement in the pitch axis
in the direction of the normal pitch attitude range for the aircraft.
The presence of yellow chevrons indicate that ESP is engaged in these nose-up/
nose-down conditions.
ESP Engaged (Nose-Low) ESP Engaged (Nose-High)
