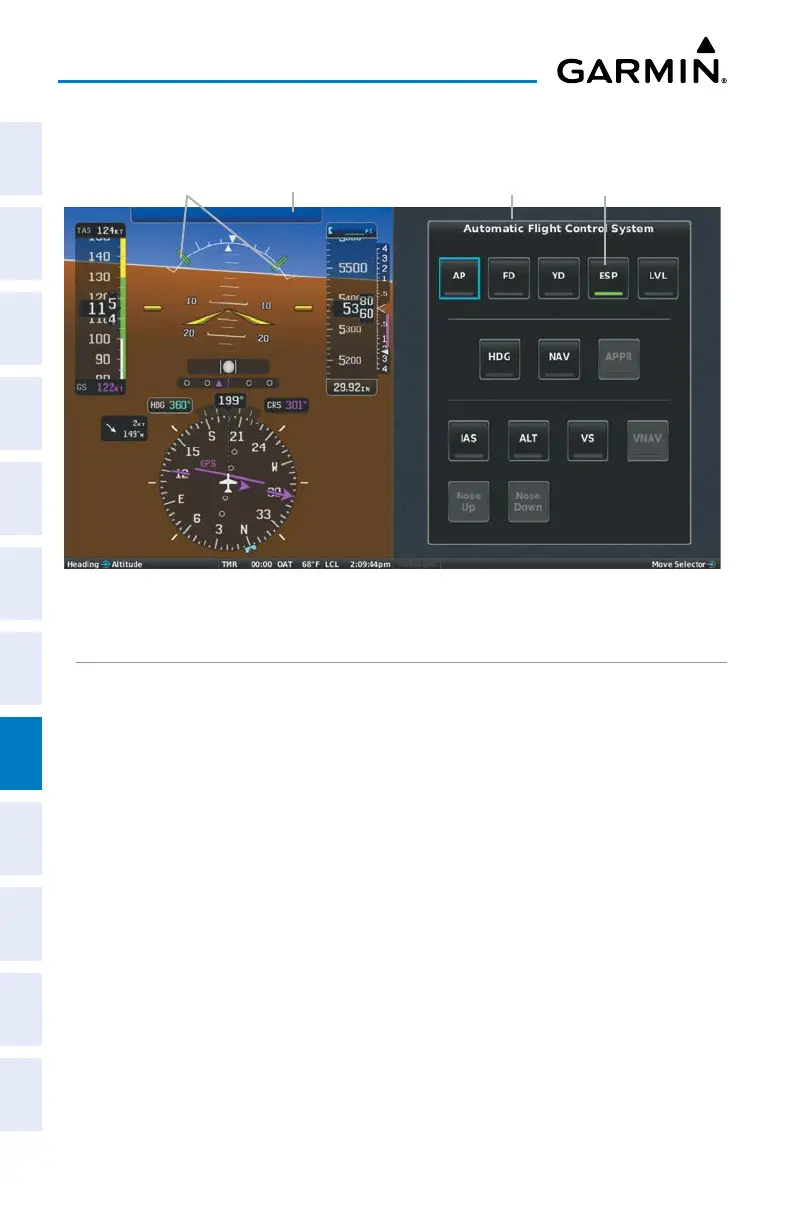

AFCS (ESP Enabled)
ESP Roll Engage-
ment Indication
(ESP NOT Engaged)
Autopilot Status
Box - Touch To
Display the G3X Touch
Autopilot Interface
G3X Touch
Autopilot
Interface
Touch To
Enable/
Disable ESP
ROLL ENGAGEMENT
Roll Limit Indicators displayed on the roll scale are configurable between 45º and
60º right and left, indicating where ESP will engage. As roll attitude exceeds the
configured limit, ESP will engage and the Roll Limit Indicators will move to 15º less
than the configured ESP bank limit. The Roll Limit Indicator now indicates where ESP
will disengage as roll attitude decreases.

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
