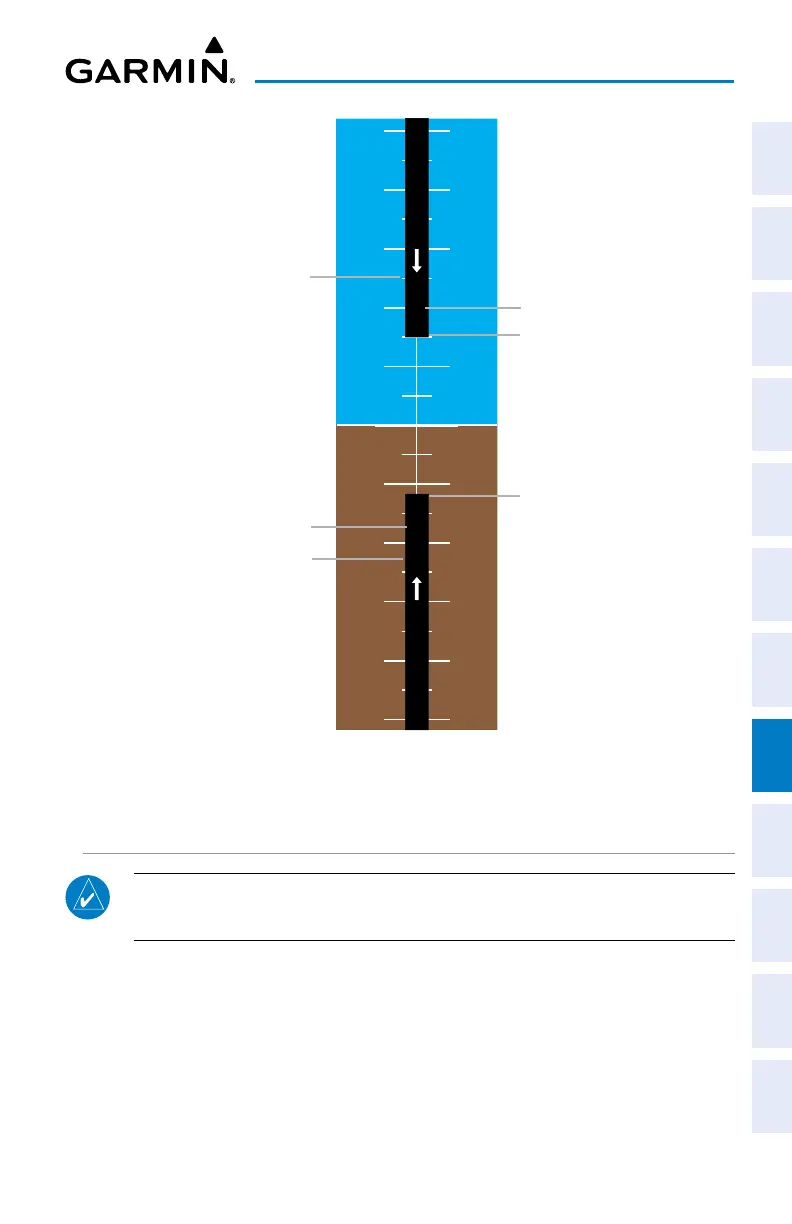

ESP Pitch Operating Range When Engaged
(Force Increases as Pitch Increases & Decreases as Pitch Decreases)
30˚
25˚
20˚
15˚
10˚
5˚
0˚
5˚
10˚
15˚
20˚
25˚
30˚
30˚
25˚
20˚
15˚
10˚
5˚
0˚
5˚
10˚
15˚
20˚
25˚
30˚
35˚
40˚
45˚
50˚
35˚
40˚
45˚
50˚
50˚
45˚
40˚
35˚
50˚
45˚
40˚
35˚
ESPESP
Minimum
ESP Torque
(-12.5 º)
Maximum
ESP Torque
(25 º)
Minimum
ESP Torque
(15 º)
Maximum
ESP Torque
(-22.5 º)
Configured Roll Limit (20 º)
Configured Roll Limit (-17.5 º)
AIRSPEED PROTECTION
NOTE: If AGL height data is unavailable (i.e., GPS altitude or terrain data is
unavailable), low-airspeed protection is not supported.
An airspeed below the minimum configured airspeed or above maximum
configured airspeed will result in ESP applying force to raise or lower the nose
of the aircraft. When the high or low airspeed condition is remedied, ESP
force is no longer applied. An audible "Airspeed" alert may be configured.

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
