GE Power Management 750/760 Feeder Management Relay 6
-
21

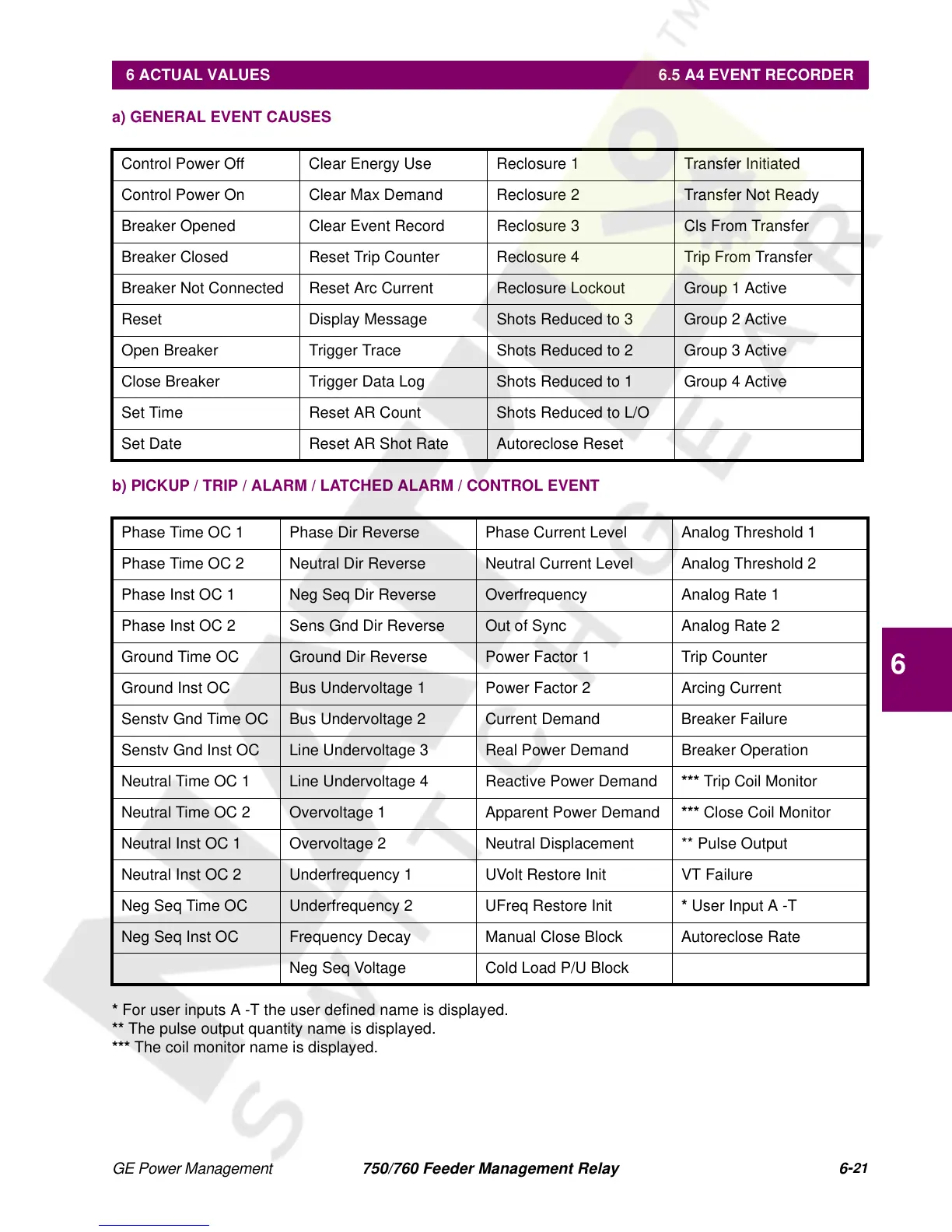

6 ACTUAL VALUES 6.5 A4 EVENT RECORDER
6
a) GENERAL EVENT CAUSES
b) PICKUP / TRIP / ALARM / LATCHED ALARM / CONTROL EVENT
*
For user inputs A -T the user defined name is displayed.
**
The pulse output quantity name is displayed.
***
The coil monitor name is displayed.
Control Power Off Clear Energy Use Reclosure 1 Transfer Initiated
Control Power On Clear Max Demand Reclosure 2 Transfer Not Ready
Breaker Opened Clear Event Record Reclosure 3 Cls From Transfer
Breaker Closed Reset Trip Counter Reclosure 4 Trip From Transfer
Breaker Not Connected Reset Arc Current Reclosure Lockout Group 1 Active
Reset Display Message Shots Reduced to 3 Group 2 Active
Open Breaker Trigger Trace Shots Reduced to 2 Group 3 Active
Close Breaker Trigger Data Log Shots Reduced to 1 Group 4 Active
Set Time Reset AR Count Shots Reduced to L/O
Set Date Reset AR Shot Rate Autoreclose Reset
Phase Time OC 1 Phase Dir Reverse Phase Current Level Analog Threshold 1
Phase Time OC 2 Neutral Dir Reverse Neutral Current Level Analog Threshold 2
Phase Inst OC 1 Neg Seq Dir Reverse Overfrequency Analog Rate 1
Phase Inst OC 2 Sens Gnd Dir Reverse Out of Sync Analog Rate 2
Ground Time OC Ground Dir Reverse Power Factor 1 Trip Counter
Ground Inst OC Bus Undervoltage 1 Power Factor 2 Arcing Current
Senstv Gnd Time OC Bus Undervoltage 2 Current Demand Breaker Failure
Senstv Gnd Inst OC Line Undervoltage 3 Real Power Demand Breaker Operation
Neutral Time OC 1 Line Undervoltage 4 Reactive Power Demand
***
Trip Coil Monitor
Neutral Time OC 2 Overvoltage 1 Apparent Power Demand
***
Close Coil Monitor
Neutral Inst OC 1 Overvoltage 2 Neutral Displacement ** Pulse Output
Neutral Inst OC 2 Underfrequency 1 UVolt Restore Init VT Failure
Neg Seq Time OC Underfrequency 2 UFreq Restore Init
*
User Input A -T
Neg Seq Inst OC Frequency Decay Manual Close Block Autoreclose Rate
Neg Seq Voltage Cold Load P/U Block
