GE Power Management 750/760 Feeder Management Relay 5-
7
5 FRONT PANEL OPERATION 5.5 FLASH MESSAGES
5

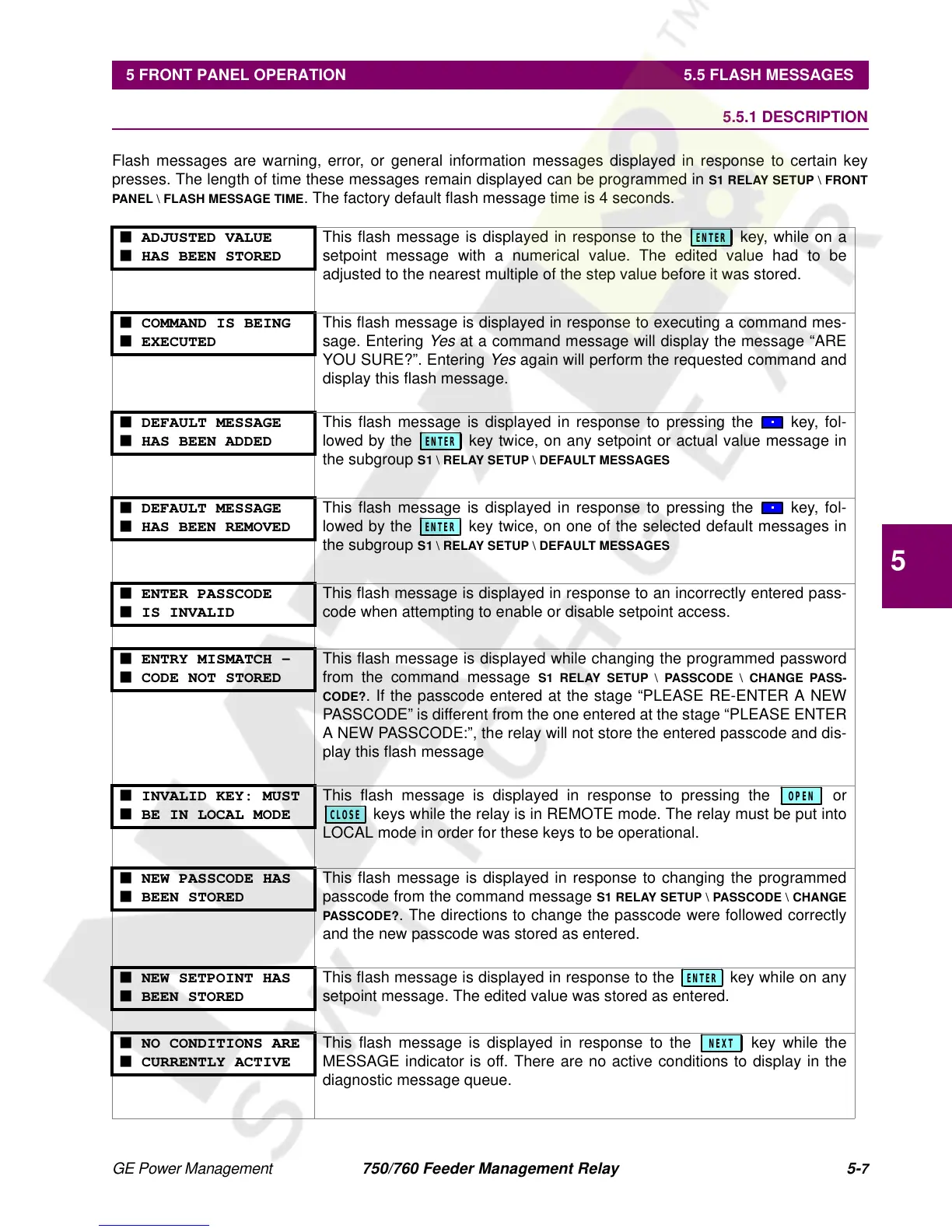

5.5 FLASH MESSAGES 5.5.1 DESCRIPTION
Flash messages are warning, error, or general information messages displayed in response to certain key
presses. The length of time these messages remain displayed can be programmed in
S1 RELAY SETUP \ FRONT
PANEL \ FLASH MESSAGE TIME
. The factory default flash message time is 4 seconds.
■ ADJUSTED VALUE
■ HAS BEEN STORED
This flash message is displayed in response to the key, while on a
setpoint message with a numerical value. The edited value had to be
adjusted to the nearest multiple of the step value before it was stored.
■ COMMAND IS BEING
■ EXECUTED
This flash message is displayed in response to executing a command mes-
sage. Entering
Yes
at a command message will display the message “ARE
YOU SURE?”. Entering
Yes
again will perform the requested command and
display this flash message.
■ DEFAULT MESSAGE
■ HAS BEEN ADDED
This flash message is displayed in response to pressing the key, fol-
lowed by the key twice, on any setpoint or actual value message in
the subgroup
S1 \ RELAY SETUP \ DEFAULT MESSAGES
■ DEFAULT MESSAGE
■ HAS BEEN REMOVED
This flash message is displayed in response to pressing the key, fol-
lowed by the key twice, on one of the selected default messages in
the subgroup
S1 \ RELAY SETUP \ DEFAULT MESSAGES
■ ENTER PASSCODE
■ IS INVALID
This flash message is displayed in response to an incorrectly entered pass-
code when attempting to enable or disable setpoint access.
■ ENTRY MISMATCH -
■ CODE NOT STORED
This flash message is displayed while changing the programmed password
from the command message
S1 RELAY SETUP \ PASSCODE \ CHANGE PASS-
CODE?
. If the passcode entered at the stage “PLEASE RE-ENTER A NEW
PASSCODE” is different from the one entered at the stage “PLEASE ENTER
A NEW PASSCODE:”, the relay will not store the entered passcode and dis-
play this flash message
■ INVALID KEY: MUST
■ BE IN LOCAL MODE
This flash message is displayed in response to pressing the or
keys while the relay is in REMOTE mode. The relay must be put into
LOCAL mode in order for these keys to be operational.
■ NEW PASSCODE HAS
■ BEEN STORED
This flash message is displayed in response to changing the programmed
passcode from the command message
S1 RELAY SETUP \ PASSCODE \ CHANGE
PASSCODE?
. The directions to change the passcode were followed correctly
and the new passcode was stored as entered.
■ NEW SETPOINT HAS
■ BEEN STORED
This flash message is displayed in response to the key while on any
setpoint message. The edited value was stored as entered.
■ NO CONDITIONS ARE
■ CURRENTLY ACTIVE
This flash message is displayed in response to the key while the
MESSAGE indicator is off. There are no active conditions to display in the
diagnostic message queue.
ENTER
ENTER
ENTER
OPEN
CLOSE
ENTER
NEXT
