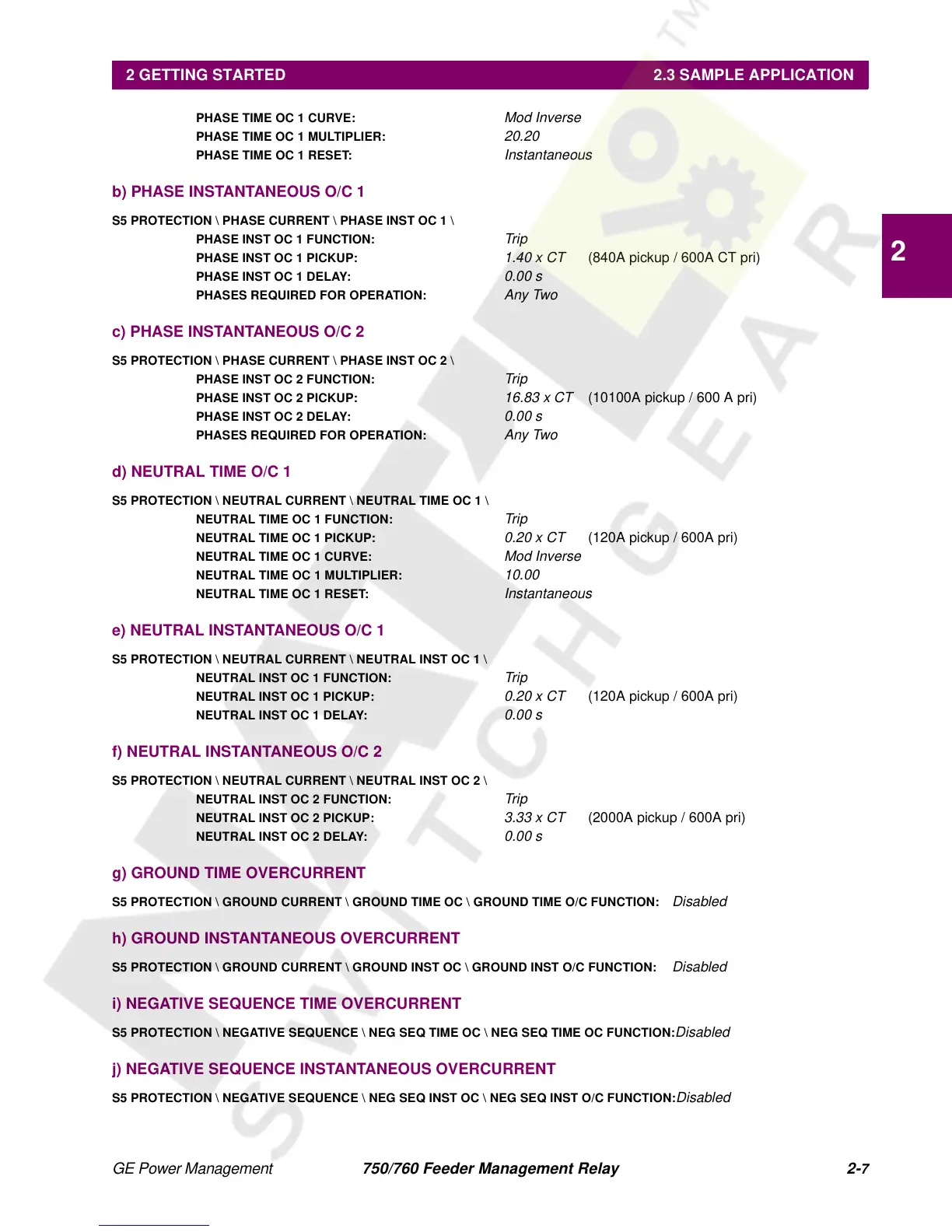

GE Power Management 750/760 Feeder Management Relay 2-
7
2 GETTING STARTED 2.3 SAMPLE APPLICATION
2
PHASE TIME OC 1 CURVE:
Mod Inverse
PHASE TIME OC 1 MULTIPLIER:
20.20
PHASE TIME OC 1 RESET:
Instantaneous
b) PHASE INSTANTANEOUS O/C 1
S5 PROTECTION \ PHASE CURRENT \ PHASE INST OC 1 \
PHASE INST OC 1 FUNCTION:
Trip
PHASE INST OC 1 PICKUP:
1.40 x CT
(840A pickup / 600A CT pri)
PHASE INST OC 1 DELAY:
0.00 s
PHASES REQUIRED FOR OPERATION:
Any Two
c) PHASE INSTANTANEOUS O/C 2
S5 PROTECTION \ PHASE CURRENT \ PHASE INST OC 2 \
PHASE INST OC 2 FUNCTION:
Trip
PHASE INST OC 2 PICKUP:
16.83 x CT
(10100A pickup / 600 A pri)
PHASE INST OC 2 DELAY:
0.00 s
PHASES REQUIRED FOR OPERATION:
Any Two
d) NEUTRAL TIME O/C 1
S5 PROTECTION \ NEUTRAL CURRENT \ NEUTRAL TIME OC 1 \
NEUTRAL TIME OC 1 FUNCTION:
Trip
NEUTRAL TIME OC 1 PICKUP:
0.20 x CT
(120A pickup / 600A pri)
NEUTRAL TIME OC 1 CURVE:
Mod Inverse
NEUTRAL TIME OC 1 MULTIPLIER:
10.00
NEUTRAL TIME OC 1 RESET:
Instantaneous
e) NEUTRAL INSTANTANEOUS O/C 1
S5 PROTECTION \ NEUTRAL CURRENT \ NEUTRAL INST OC 1 \
NEUTRAL INST OC 1 FUNCTION:
Trip
NEUTRAL INST OC 1 PICKUP:
0.20 x CT
(120A pickup / 600A pri)
NEUTRAL INST OC 1 DELAY:
0.00 s
f) NEUTRAL INSTANTANEOUS O/C 2
S5 PROTECTION \ NEUTRAL CURRENT \ NEUTRAL INST OC 2 \
NEUTRAL INST OC 2 FUNCTION:
Trip
NEUTRAL INST OC 2 PICKUP:
3.33 x CT
(2000A pickup / 600A pri)
NEUTRAL INST OC 2 DELAY:
0.00 s
g) GROUND TIME OVERCURRENT
S5 PROTECTION \ GROUND CURRENT \ GROUND TIME OC \ GROUND TIME O/C FUNCTION:
Disabled
h) GROUND INSTANTANEOUS OVERCURRENT
S5 PROTECTION \ GROUND CURRENT \ GROUND INST OC \ GROUND INST O/C FUNCTION:
Disabled
i) NEGATIVE SEQUENCE TIME OVERCURRENT
S5 PROTECTION \ NEGATIVE SEQUENCE \ NEG SEQ TIME OC \ NEG SEQ TIME OC FUNCTION:
Disabled
j) NEGATIVE SEQUENCE INSTANTANEOUS OVERCURRENT
S5 PROTECTION \ NEGATIVE SEQUENCE \ NEG SEQ INST OC \ NEG SEQ INST O/C FUNCTION:
Disabled
