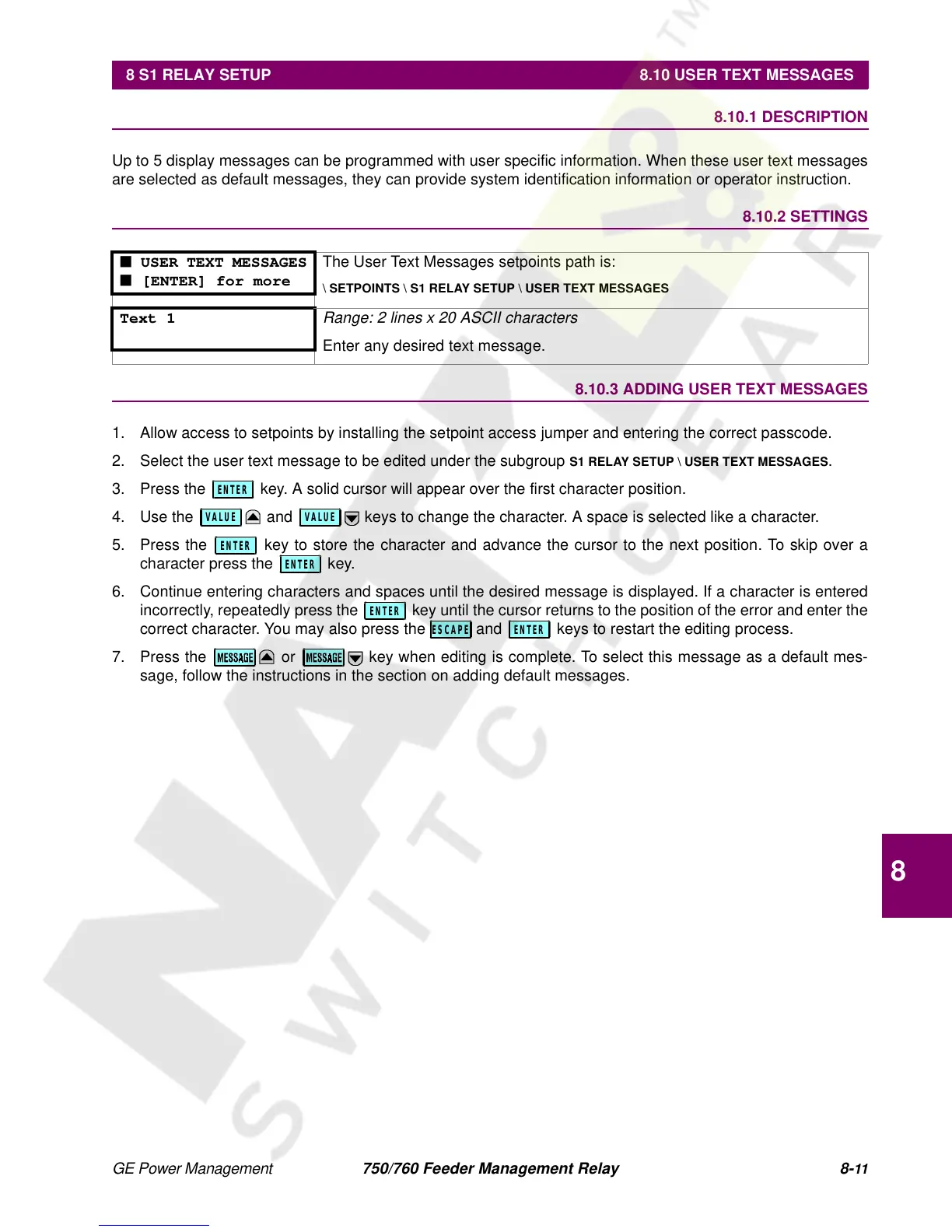

GE Power Management 750/760 Feeder Management Relay 8-
11
8 S1 RELAY SETUP 8.10 USER TEXT MESSAGES
8
8.10 USER TEXT MESSAGES 8.10.1 DESCRIPTION
Up to 5 display messages can be programmed with user specific information. When these user text messages
are selected as default messages, they can provide system identification information or operator instruction.
8.10.2 SETTINGS
8.10.3 ADDING USER TEXT MESSAGES
1. Allow access to setpoints by installing the setpoint access jumper and entering the correct passcode.
2. Select the user text message to be edited under the subgroup
S1 RELAY SETUP \ USER TEXT MESSAGES
.
3. Press the key. A solid cursor will appear over the first character position.
4. Use the and keys to change the character. A space is selected like a character.
5. Press the key to store the character and advance the cursor to the next position. To skip over a
character press the key.
6. Continue entering characters and spaces until the desired message is displayed. If a character is entered
incorrectly, repeatedly press the key until the cursor returns to the position of the error and enter the
correct character. You may also press the and keys to restart the editing process.
7. Press the or key when editing is complete. To select this message as a default mes-
sage, follow the instructions in the section on adding default messages.
â– USER TEXT MESSAGES
â– [ENTER] for more
The User Text Messages setpoints path is:
\ SETPOINTS \ S1 RELAY SETUP \ USER TEXT MESSAGES
Text 1
Range: 2 lines x 20 ASCII characters
Enter any desired text message.
ENTER
VALUE VALUE
ENTER
ENTER
ENTER
ESCAPE
