750/760 Feeder Management Relay GE Power Management

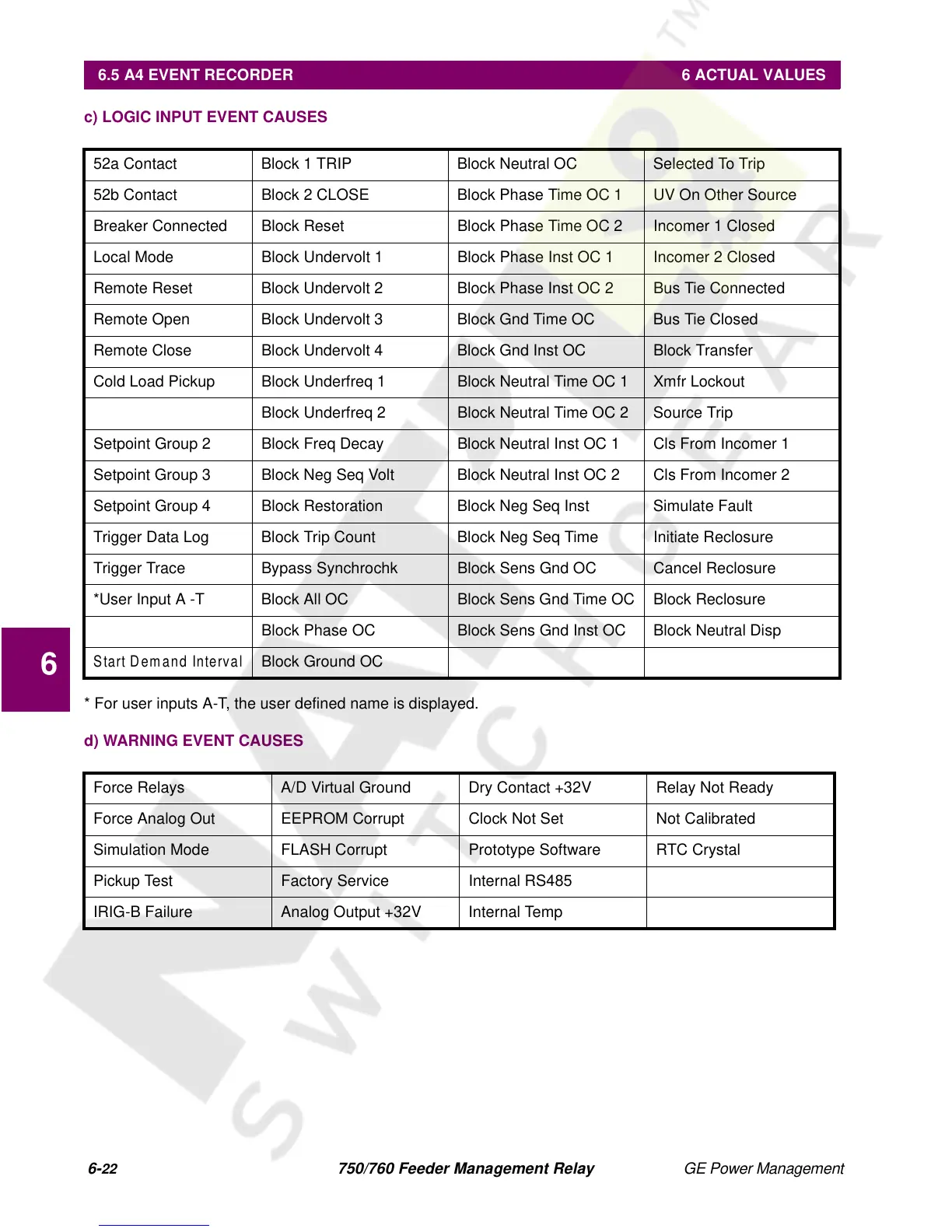

6.5 A4 EVENT RECORDER 6 ACTUAL VALUES
6
c) LOGIC INPUT EVENT CAUSES
* For user inputs A-T, the user defined name is displayed.
d) WARNING EVENT CAUSES
52a Contact Block 1 TRIP Block Neutral OC Selected To Trip
52b Contact Block 2 CLOSE Block Phase Time OC 1 UV On Other Source
Breaker Connected Block Reset Block Phase Time OC 2 Incomer 1 Closed
Local Mode Block Undervolt 1 Block Phase Inst OC 1 Incomer 2 Closed
Remote Reset Block Undervolt 2 Block Phase Inst OC 2 Bus Tie Connected
Remote Open Block Undervolt 3 Block Gnd Time OC Bus Tie Closed
Remote Close Block Undervolt 4 Block Gnd Inst OC Block Transfer
Cold Load Pickup Block Underfreq 1 Block Neutral Time OC 1 Xmfr Lockout
Block Underfreq 2 Block Neutral Time OC 2 Source Trip
Setpoint Group 2 Block Freq Decay Block Neutral Inst OC 1 Cls From Incomer 1
Setpoint Group 3 Block Neg Seq Volt Block Neutral Inst OC 2 Cls From Incomer 2
Setpoint Group 4 Block Restoration Block Neg Seq Inst Simulate Fault
Trigger Data Log Block Trip Count Block Neg Seq Time Initiate Reclosure
Trigger Trace Bypass Synchrochk Block Sens Gnd OC Cancel Reclosure
*User Input A -T Block All OC Block Sens Gnd Time OC Block Reclosure
Block Phase OC Block Sens Gnd Inst OC Block Neutral Disp
Start Demand Interval Block Ground OC
Force Relays A/D Virtual Ground Dry Contact +32V Relay Not Ready
Force Analog Out EEPROM Corrupt Clock Not Set Not Calibrated
Simulation Mode FLASH Corrupt Prototype Software RTC Crystal
Pickup Test Factory Service Internal RS485
IRIG-B Failure Analog Output +32V Internal Temp
