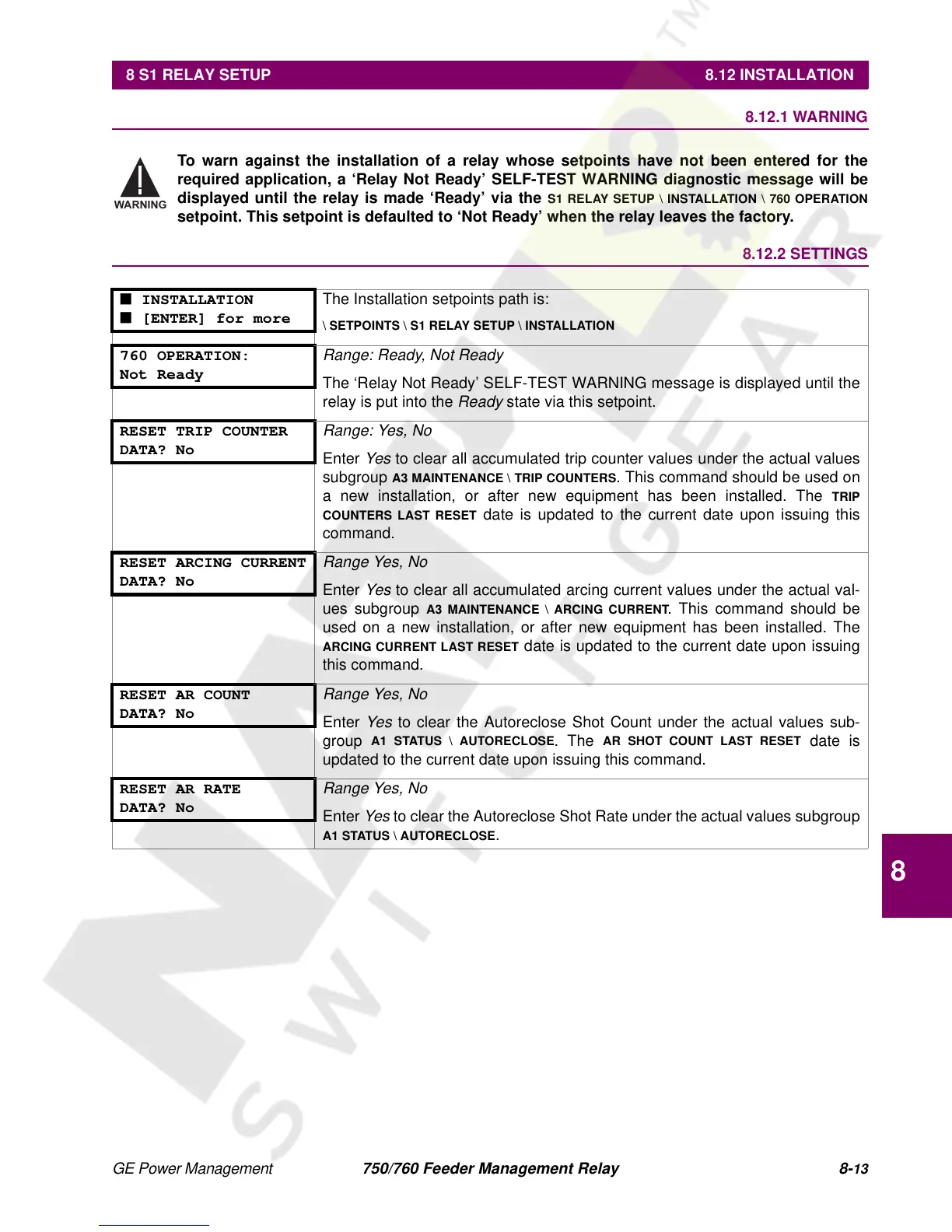

8 S1 RELAY SETUP 8.12 INSTALLATION
8
8.12 INSTALLATION 8.12.1 WARNING
To warn against the installation of a relay whose setpoints have not been entered for the
required application, a ‘Relay Not Ready’ SELF-TEST WARNING diagnostic message will be
displayed until the relay is made ‘Ready’ via the
S1 RELAY SETUP \ INSTALLATION \ 760 OPERATION
setpoint. This setpoint is defaulted to ‘Not Ready’ when the relay leaves the factory.
8.12.2 SETTINGS
â– INSTALLATION
â– [ENTER] for more
The Installation setpoints path is:
\ SETPOINTS \ S1 RELAY SETUP \ INSTALLATION
760 OPERATION:
Not Ready
Range: Ready, Not Ready
The ‘Relay Not Ready’ SELF-TEST WARNING message is displayed until the
relay is put into the
Ready
state via this setpoint.
RESET TRIP COUNTER
DATA? No
Range: Yes, No
Enter
Yes
to clear all accumulated trip counter values under the actual values
subgroup
A3 MAINTENANCE \ TRIP COUNTERS
. This command should be used on
a new installation, or after new equipment has been installed. The
TRIP
COUNTERS LAST RESET
date is updated to the current date upon issuing this
command.
RESET ARCING CURRENT
DATA? No
Range Yes, No
Enter
Yes
to clear all accumulated arcing current values under the actual val-
ues subgroup
A3 MAINTENANCE \ ARCING CURRENT
. This command should be
used on a new installation, or after new equipment has been installed. The
ARCING CURRENT LAST RESET
date is updated to the current date upon issuing
this command.
RESET AR COUNT
DATA? No
Range Yes, No
Enter
Yes
to clear the Autoreclose Shot Count under the actual values sub-
group
A1 STATUS \ AUTORECLOSE
. The
AR SHOT COUNT LAST RESET
date is
updated to the current date upon issuing this command.
RESET AR RATE
DATA? No
Range Yes, No
Enter
Yes
to clear the Autoreclose Shot Rate under the actual values subgroup
A1 STATUS \ AUTORECLOSE
.
WARNING
To Next Page
