750/760 Feeder Management Relay GE Power Management
11.2 1 TRIP AND 2 CLOSE RELAYS 11 S4 OUTPUT RELAYS
11

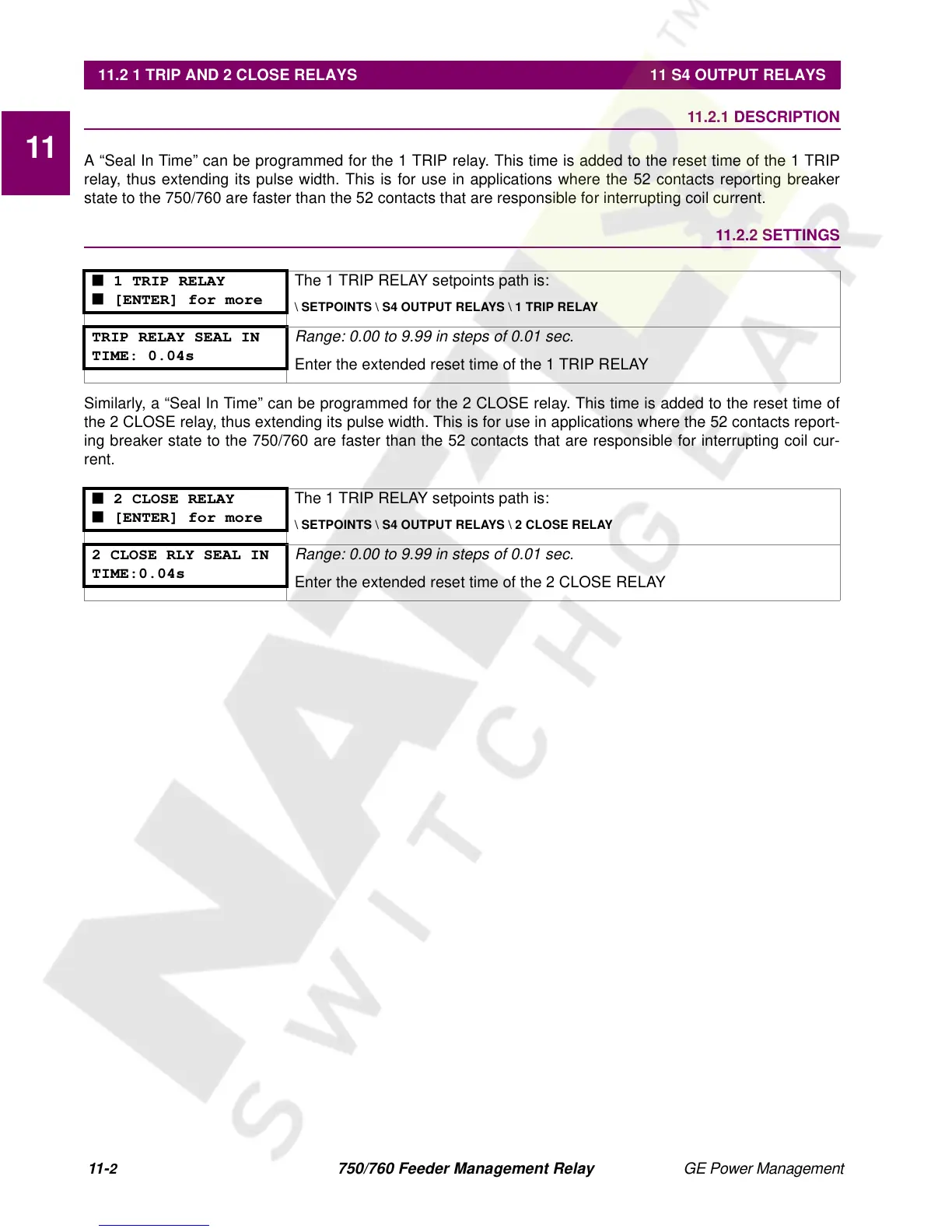

11.2 1 TRIP AND 2 CLOSE RELAYS 11.2.1 DESCRIPTION
A “Seal In Time” can be programmed for the 1 TRIP relay. This time is added to the reset time of the 1 TRIP
relay, thus extending its pulse width. This is for use in applications where the 52 contacts reporting breaker
state to the 750/760 are faster than the 52 contacts that are responsible for interrupting coil current.
11.2.2 SETTINGS
Similarly, a “Seal In Time” can be programmed for the 2 CLOSE relay. This time is added to the reset time of
the 2 CLOSE relay, thus extending its pulse width. This is for use in applications where the 52 contacts report-
ing breaker state to the 750/760 are faster than the 52 contacts that are responsible for interrupting coil cur-
rent.
■ 1 TRIP RELAY
■ [ENTER] for more
The 1 TRIP RELAY setpoints path is:
\ SETPOINTS \ S4 OUTPUT RELAYS \ 1 TRIP RELAY
TRIP RELAY SEAL IN
TIME: 0.04s
Range: 0.00 to 9.99 in steps of 0.01 sec.
Enter the extended reset time of the 1 TRIP RELAY
■ 2 CLOSE RELAY
■ [ENTER] for more
The 1 TRIP RELAY setpoints path is:
\ SETPOINTS \ S4 OUTPUT RELAYS \ 2 CLOSE RELAY
2 CLOSE RLY SEAL IN
TIME:0.04s
Range: 0.00 to 9.99 in steps of 0.01 sec.
Enter the extended reset time of the 2 CLOSE RELAY
