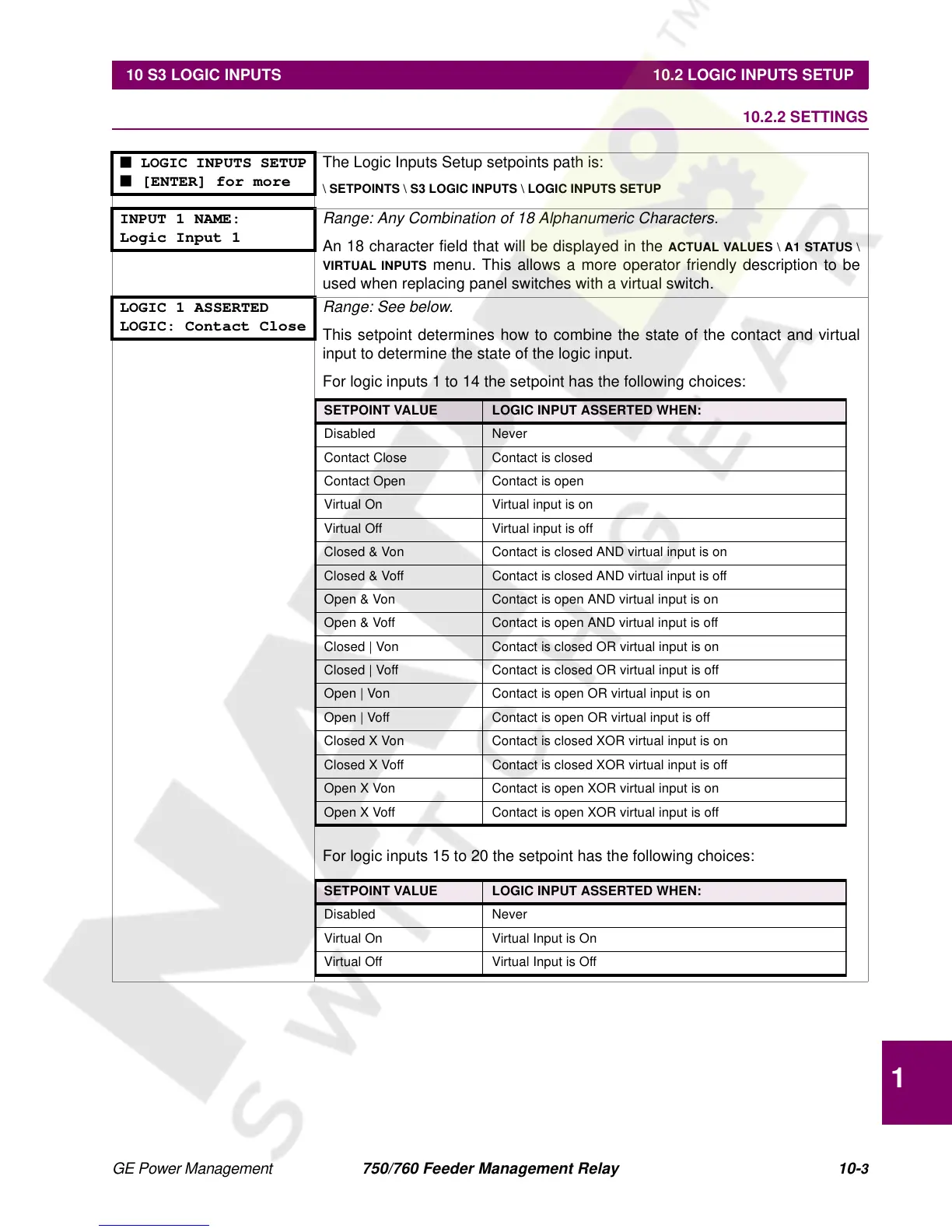

10 S3 LOGIC INPUTS 10.2 LOGIC INPUTS SETUP
10
10.2.2 SETTINGS
■ LOGIC INPUTS SETUP
■ [ENTER] for more
The Logic Inputs Setup setpoints path is:
\ SETPOINTS \ S3 LOGIC INPUTS \ LOGIC INPUTS SETUP
INPUT 1 NAME:
Logic Input 1
Range: Any Combination of 18 Alphanumeric Characters.
An 18 character field that will be displayed in the
ACTUAL VALUES \ A1 STATUS \
VIRTUAL INPUTS
menu. This allows a more operator friendly description to be
used when replacing panel switches with a virtual switch.
LOGIC 1 ASSERTED
LOGIC: Contact Close
Range: See below.
This setpoint determines how to combine the state of the contact and virtual
input to determine the state of the logic input.
For logic inputs 1 to 14 the setpoint has the following choices:
For logic inputs 15 to 20 the setpoint has the following choices:
SETPOINT VALUE LOGIC INPUT ASSERTED WHEN:
Disabled Never
Contact Close Contact is closed
Contact Open Contact is open
Virtual On Virtual input is on
Virtual Off Virtual input is off
Closed & Von Contact is closed AND virtual input is on
Closed & Voff Contact is closed AND virtual input is off
Open & Von Contact is open AND virtual input is on
Open & Voff Contact is open AND virtual input is off
Closed | Von Contact is closed OR virtual input is on
Closed | Voff Contact is closed OR virtual input is off
Open | Von Contact is open OR virtual input is on
Open | Voff Contact is open OR virtual input is off
Closed X Von Contact is closed XOR virtual input is on
Closed X Voff Contact is closed XOR virtual input is off
Open X Von Contact is open XOR virtual input is on
Open X Voff Contact is open XOR virtual input is off
SETPOINT VALUE LOGIC INPUT ASSERTED WHEN:
Disabled Never
Virtual On Virtual Input is On
Virtual Off Virtual Input is Off
