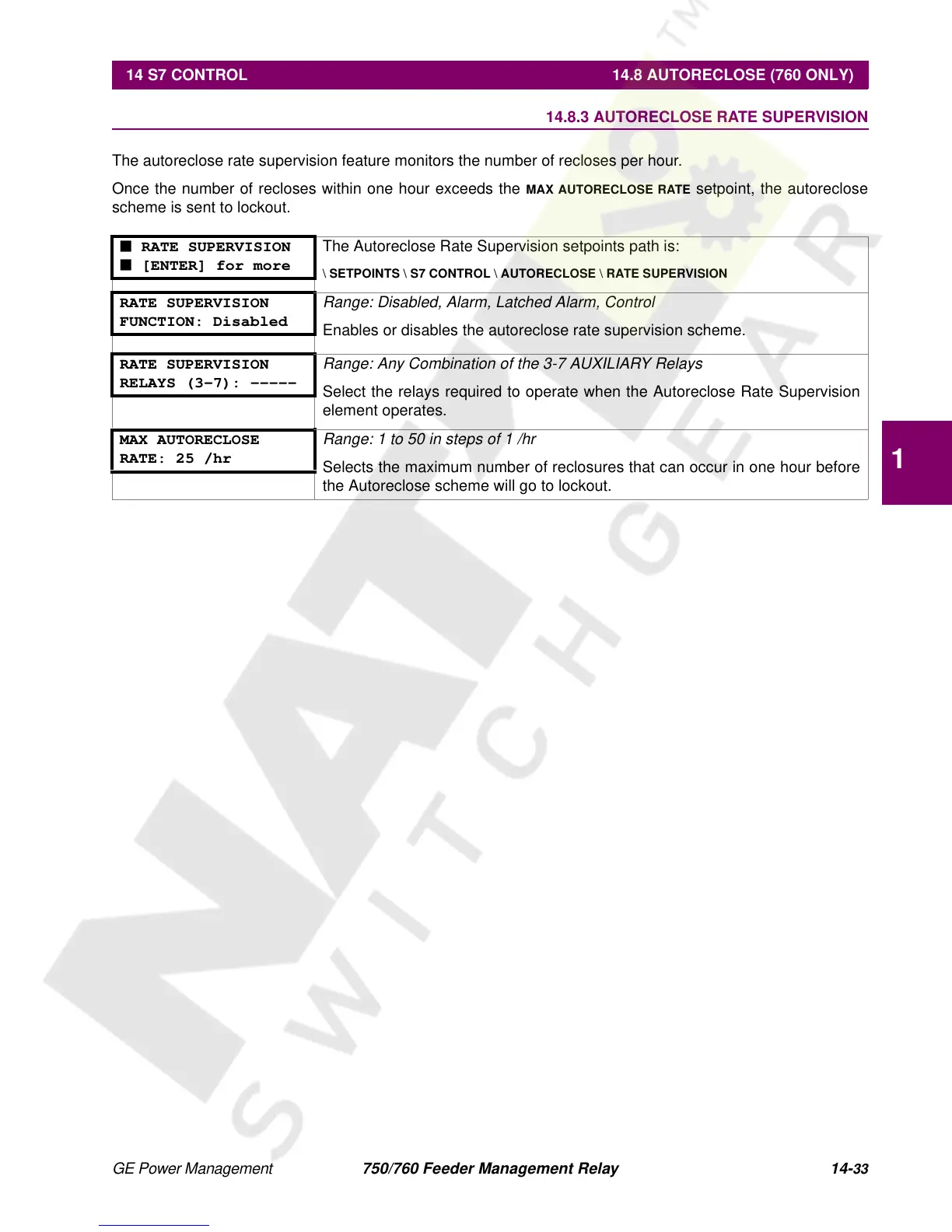

14 S7 CONTROL 14.8 AUTORECLOSE (760 ONLY)
14
14.8.3 AUTORECLOSE RATE SUPERVISION
The autoreclose rate supervision feature monitors the number of recloses per hour.
Once the number of recloses within one hour exceeds the
MAX AUTORECLOSE RATE
setpoint, the autoreclose
scheme is sent to lockout.
â– RATE SUPERVISION
â– [ENTER] for more
The Autoreclose Rate Supervision setpoints path is:
\ SETPOINTS \ S7 CONTROL \ AUTORECLOSE \ RATE SUPERVISION
RATE SUPERVISION
FUNCTION: Disabled
Range: Disabled, Alarm, Latched Alarm, Control
Enables or disables the autoreclose rate supervision scheme.
RATE SUPERVISION
RELAYS (3-7): -----
Range: Any Combination of the 3-7 AUXILIARY Relays
Select the relays required to operate when the Autoreclose Rate Supervision
element operates.
MAX AUTORECLOSE
RATE: 25 /hr
Range: 1 to 50 in steps of 1 /hr
Selects the maximum number of reclosures that can occur in one hour before
the Autoreclose scheme will go to lockout.
