GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A205 - Lift Motor
Page no. 1179 Chapter 9
JC-DR-A-205.fm
Job Card D/R A205 - Lift Motor Chapter 9
1 SUPPLIES
Determine the type of Lift Screw Assembly that is installed in the system, as indicated below.

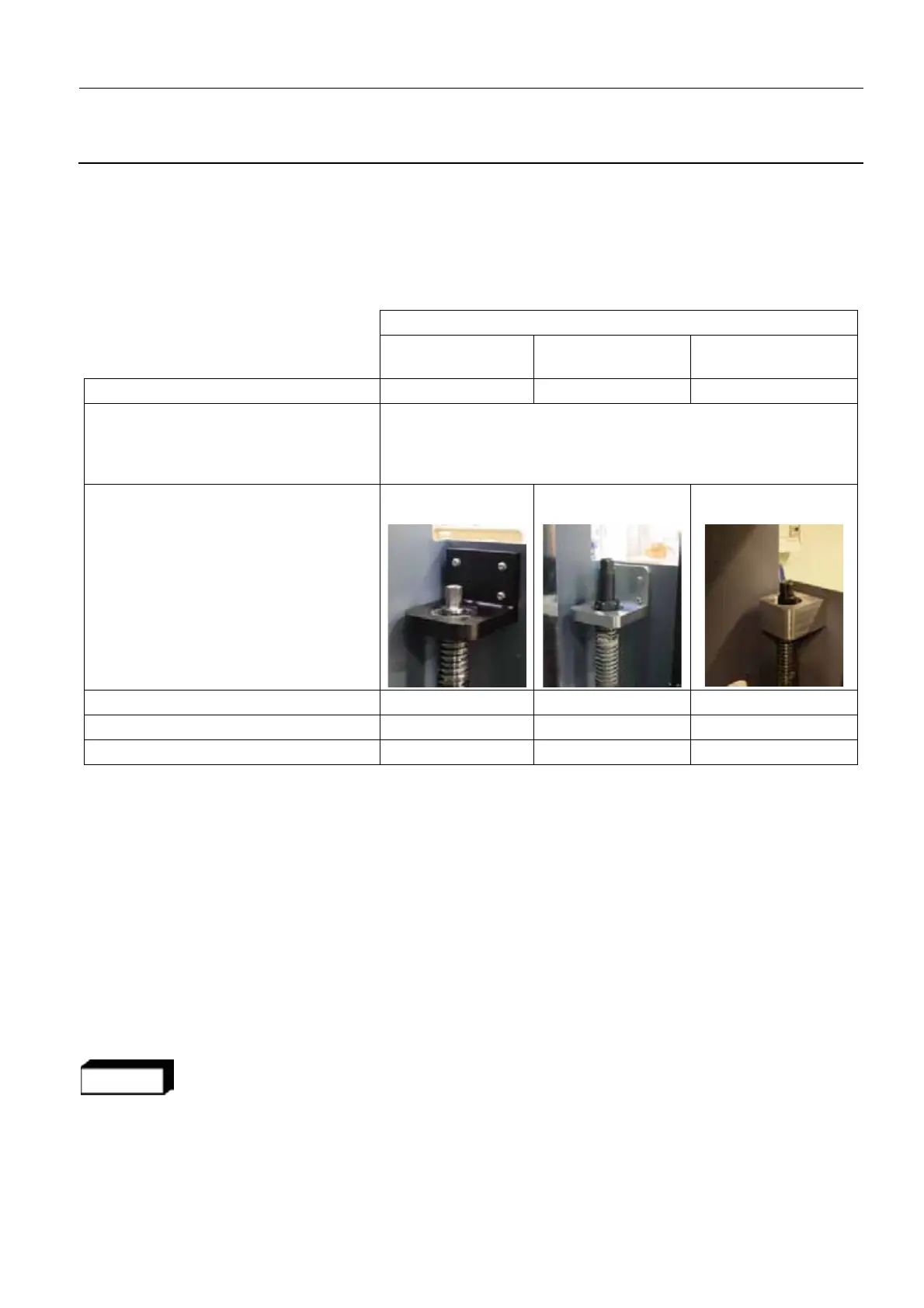

TABLE 1 - LIFT SCREW ASSEMBLY TYPE IDENTIFICATION QUICK GUIDE
Order the appropriate Lift Motor according to the Type of Lift Screw Assembly installed in the system:
• For systems with Type 1 and Type 2, order a Type1/Type 2 Compatible Lift Motor (5212900)
• For systems with Type 3, order a Type 3 Lift Brake Motor (5413527)
2TOOLS
Standard Tool Box
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 45 minutes
4 SAFETY PRECAUTIONS
WARNING
While working on the column mechanism, shut down the equipment and switch off the
Senographe hospital supply circuit breaker. Lock it in the off position or mark it clearly
with a warning sign to prevent others from applying power.
Lift Type in Install Base System
No brake
(Type 1)
Top brake
(Type 2)
Brake motor
(Type 3)
Manufacturing Date pre-January 2008 January 2008 June 2011
Physical Identification Method
(required on Type 1 or Type 2 systems to
know if Lift Screw Assembly upgraded to
newer type)
L-bracket at top of Lift Screw Assembly Black with no
threaded holes
Silver with threaded
holes
Silver with no
threaded holes
Motor power cable YES YES YES
Motor earth cable NO YES YES
Motor brake cable NO NO YES
