GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A291 - Stop Button
Page no. 1395 Chapter 9
JC-DR-A-291.fm
Job Card D/R A291 - Stop Button Chapter 9
1SUPPLIES
Stop Button
2TOOLS
Standard Tool Box
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 30 minutes
4 SAFETY PRECAUTIONS
WARNING
Before beginning work, shut down the equipment and switch off the Generator hospital
supply circuit breaker. Lock it in the off position or mark it clearly with a warning sign to
prevent others from applying power.
Never lay a cover down with the painted side on a hard surface.
5 PREREQUISITES
None
6 PROCEDURE
1. Switch off the Senographe electrical power.
2. Remove the top column cover where the broken stop button is located (either left-hand side or right-
hand side). Refer to Job Card PHY A044 - Remove/Reinstall Gantry Covers on page 523.
3. Search for and remove the fallen retaining ring from inside the column (if found).
4. Assemble the new Stop button on to the cover. To do this, put the spring (1) under and against the
button (2) (see illustration 1).
5. Ensure that the Stop button is correctly orientated so that corner of the triangle logo is pointing down
(see Illustration 3). Then push the Stop button through the cover (see Illustration 2) so that the recess
at the end of the Stop button is fully accessible.

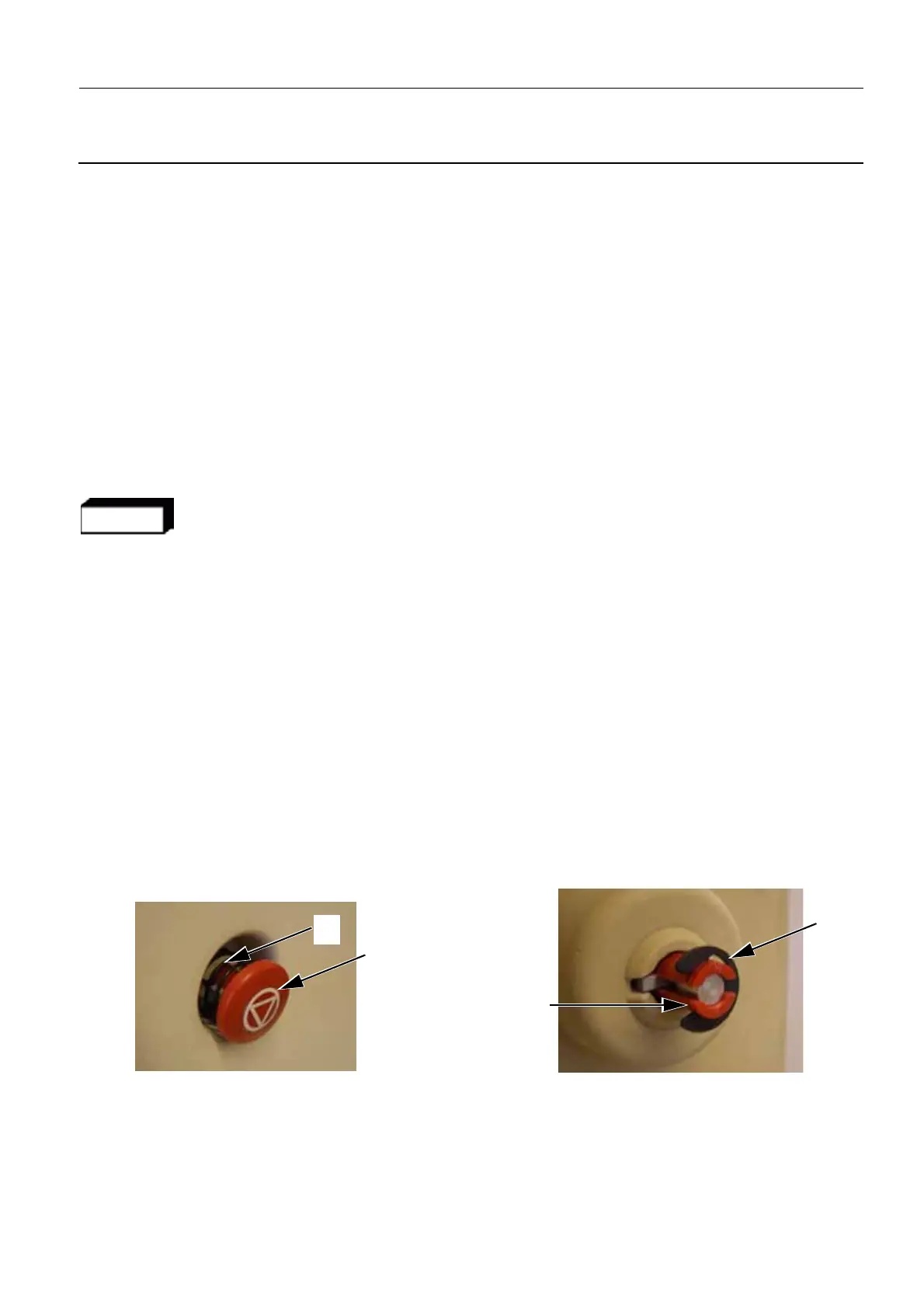

Illustration 1
Illustration 2
1
2
3
Clip the retaining ring into the
recess of the Stop button.
Ensure that the open side of
the retaining ring is oriented
towards the longitudinal cut-
out of the Stop button.
