GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A005 - Bucky Support Installation
Page no. 409 Chapter 6
JC-PHY-A-005.fm
Job Card PHY A005 - Bucky Support Installation Chapter 6
1SUPPLIES
Bucky Support Assembly
2TOOLS
3 mm allen wrench
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 15 minutes
4 SAFETY PRECAUTIONS
None
5 PRE-REQUISITES
None
6 PROCEDURE

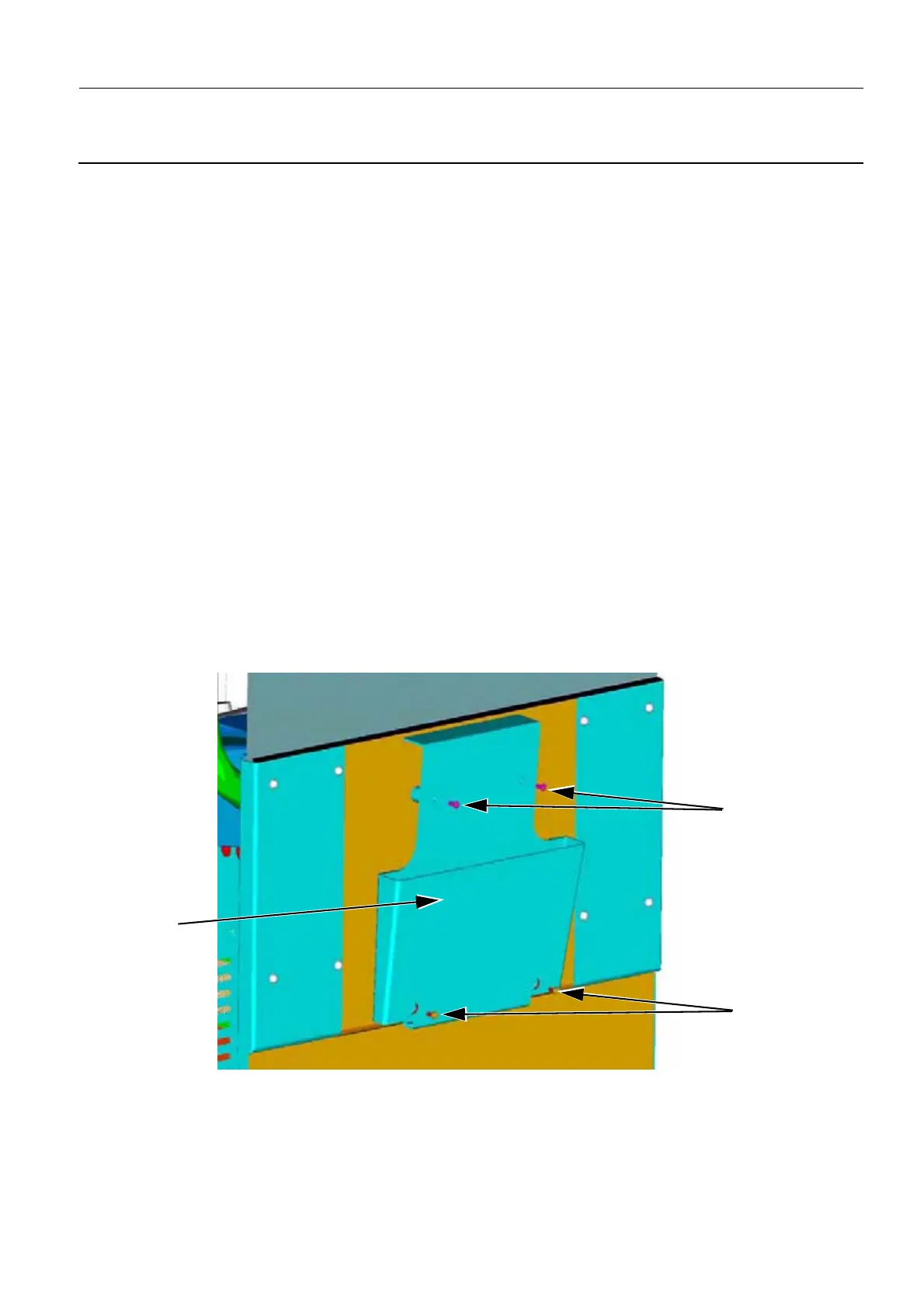

1. Put in place the Bucky Support (1) and secure it with two screws CHC 4 x 12 on the top (2) and two
screws FHC M4 x 16 on the bottom (3) (3 mm allen wrench).
2. Install the four screw covers to the fixing points of the Bucky Support (8 mm diameter on the top,
14 mm diameter on the bottom).
1
2
3
