GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A232 - Lift Screw Assembly
Page no. 1255 Chapter 9
JC-DR-A-232.fm
Job Card D/R A232 - Lift Screw Assembly Chapter 9
1 SUPPLIES
Determine the type of Lift Screw Assembly that is installed in the system, as indicated below.

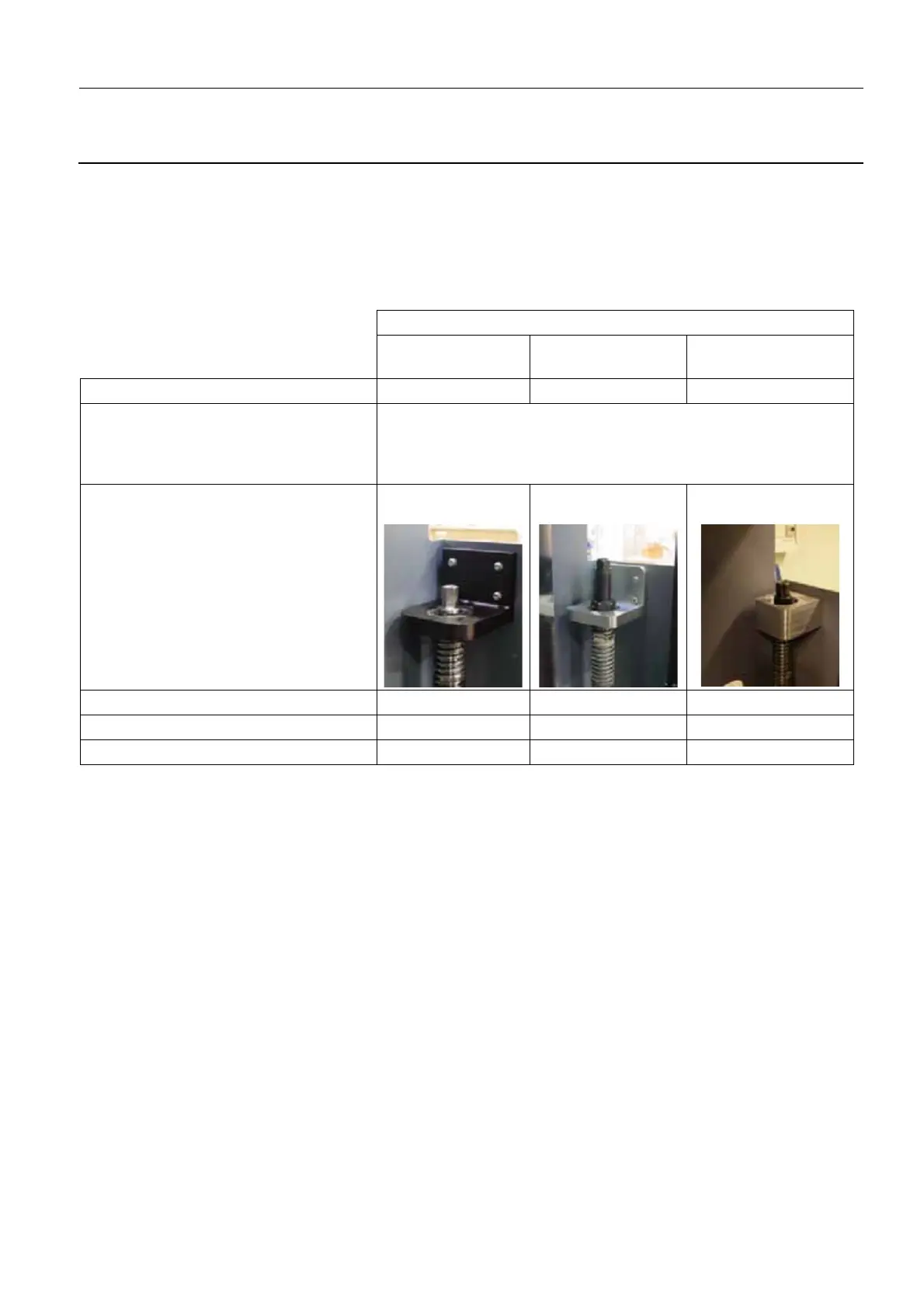

TABLE 1 - LIFT SCREW ASSEMBLY TYPE IDENTIFICATION QUICK GUIDE
Order the appropriate Lift Screw Assembly with Motor according to the Type of Lift Screw Assembly
installed in the system:
• For systems with Type 1 and Type 2, order a Type 2 Lift Screw Assembly with Motor (5191096)
• For systems with Type 3, order a Type 3 Lift Screw Assembly with Motor (5337148)
You may have determined with earlier troubleshooting that only the Lift Screw needs changing, rather
than the entire Lift Screw Assembly with Motor. In this case, order the appropriate Lift Screw according
to the Type of Lift Screw Assembly installed in the system:
• For systems with Type 1 and Type 2, order a Type 2 Lift Screw without Motor (5391083)
• For systems with Type 3, order a Type 3 Lift Screw without Motor (5373048)
2TOOLS
• Standard Tool Box including a universal joint (knuckle joint) for access to left hand side Cardan
screws located behind the Rotation board
• Gantry LOTO Tool
Lift Type in Install Base System
No brake
(Type 1)
Top brake
(Type 2)
Brake motor
(Type 3)
Manufacturing Date pre-January 2008 January 2008 June 2011
Physical Identification Method
(required on Type 1 or Type 2 systems to
know if Lift Screw Assembly upgraded to
newer type)
L-bracket at top of Lift Screw Assembly Black with no
threaded holes
Silver with threaded
holes
Silver with no
threaded holes
Motor power cable YES YES YES
Motor earth cable NO YES YES
Motor brake cable NO NO YES
