GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A403 - Capacitor Box
Page no. 1553 Chapter 9
JC-DR-A-403.fm
Job Card D/R A403 - Capacitor Box Chapter 9
1SUPPLIES
Capacitor box
2TOOLS
Standard Tool Box
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 30 minutes
4 SAFETY PRECAUTIONS
Steps in this Job Card tell you when to take appropriate action to avoid electric shock.
• Switch off the mains power supply.
• Check the residual voltage (inverter supply).
5 PREREQUISITES
None
6 PROCEDURE
6-1 Removal of Filtering Capacitors
Refer to Illustrations1 and 2 at the end of this Job Card.
1. Switch off the electrical power supply from the Mains Distribution Panel in the room. Apply an appro-
priate LOTO padlock and label. Wait 10 minutes for the components within the Generator to dis-
charge.
2. Remove the four Generator side panels (see Job Card PHY A042 - Remove/Reinstall Generator
Covers on page 513) to reveal the capacitor box.

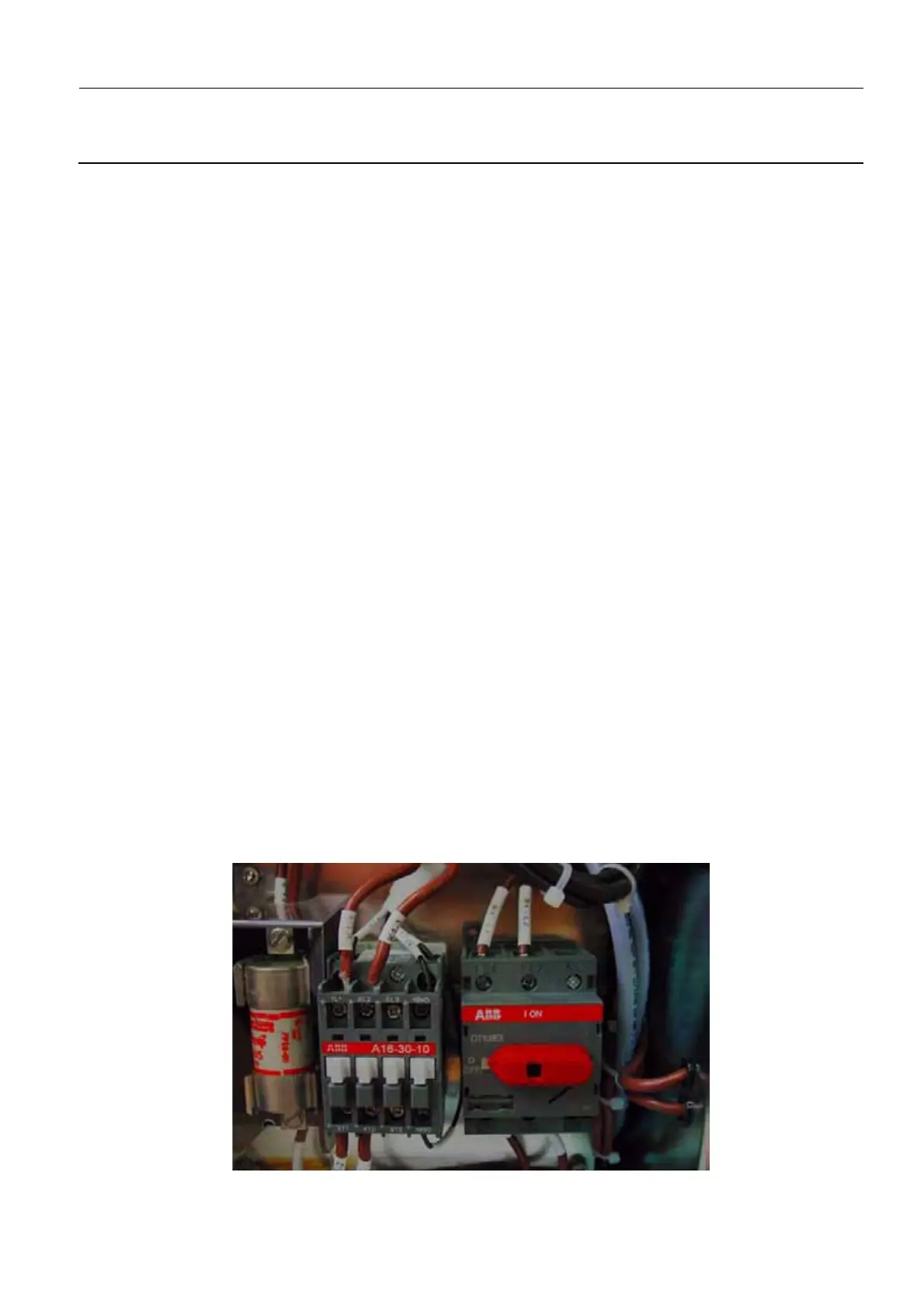

3. Switch off the electrical power supply, on the rotary switch in the Generator cabinet (position 0).
To Next Page
