GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A212 - Gantry Readout
Page no. 1215 Chapter 9
JC-DR-A-212.fm
Job Card D/R A212 - Gantry Readout Chapter 9
1SUPPLIES
Gantry Readout (LCD panel)
2TOOLS
Standard Tool Box
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 30 minutes
4 SAFETY PRECAUTIONS
WARNING
The Gantry must be powered off.
5 PREREQUISITES
• Switch off the Gantry power.

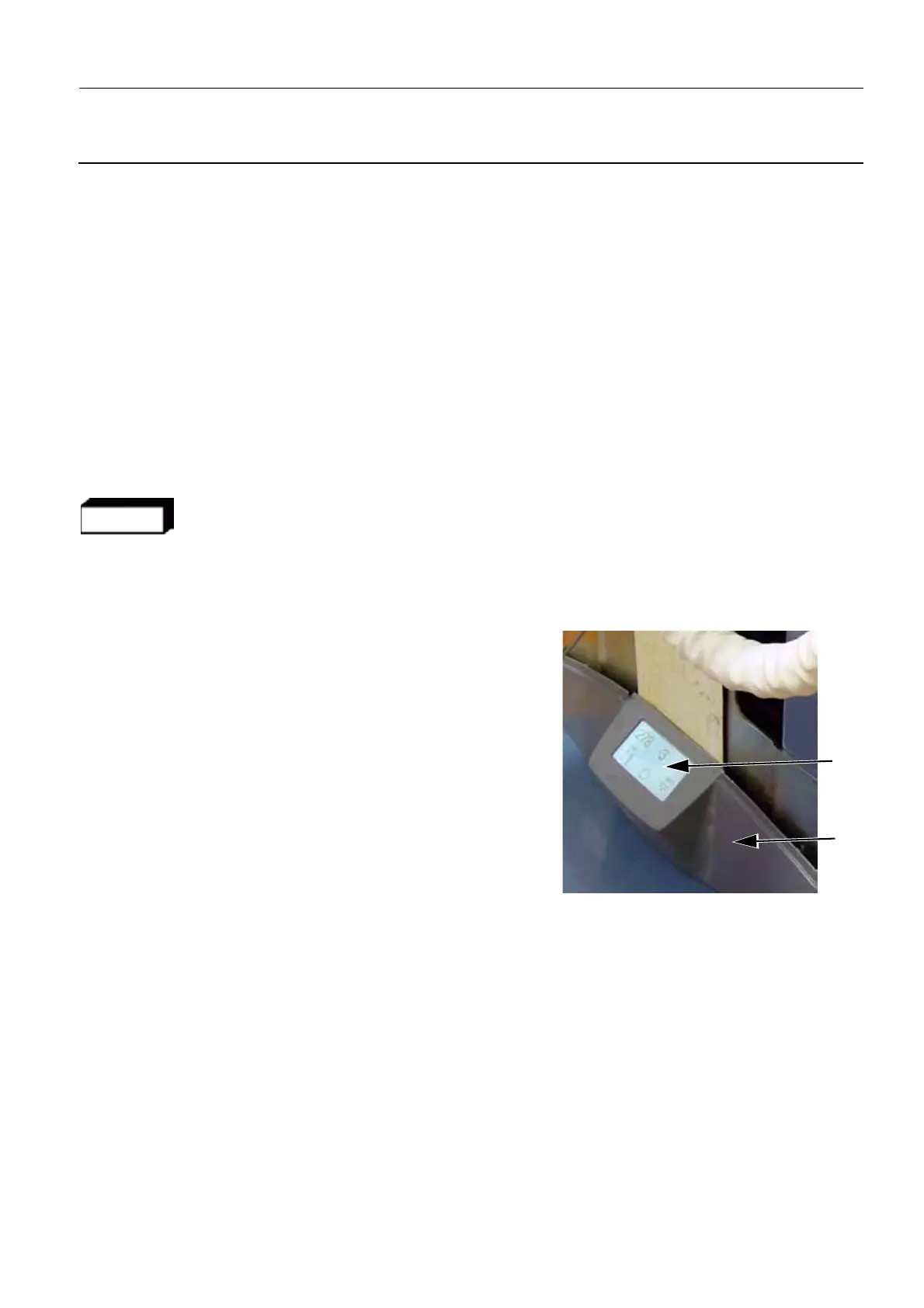

• Remove the front covers, the column covers, and the bot-
tom front cover (2) (refer to Job Card PHY A044 - Remove/
Reinstall Gantry Covers on page 523) for access to the
Gantry Readout (1).
6 PROCEDURE
6-1 Disassembly of the Gantry Readout
1. Disconnect the LCD connect cable (W204) from the Lift
Board (connector J15).
2. Carefully remove the LCD connect cable through the column.
3. Remove the four screws securing the Gantry Readout (screwdriver).
4. Remove the Gantry Readout.
6-2 Reassembly of the Gantry Readout
Reverse the disassembly procedure.
