GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A003 - Gantry and Control Station Installation
Page no. 401 Chapter 6
JC-PHY-A-003.fm
Job Card PHY A003 - Gantry and Control Station Installation Chapter 6
1SUPPLIES

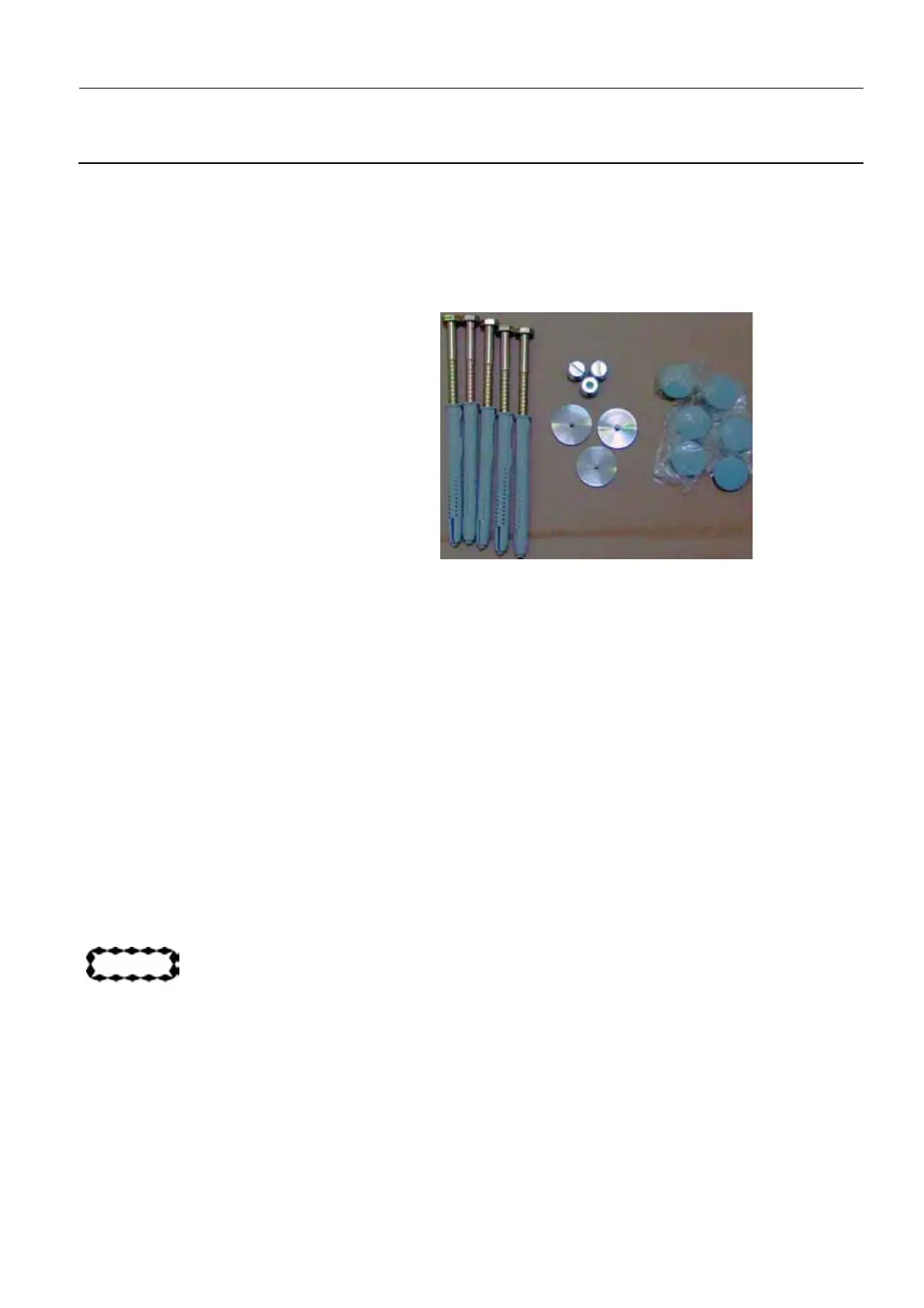

Anchoring kits:
• For Gantry:
• For Control Station
• 4 securing screws.
• 4 anchoring inserts.
• 4 jack feet.
2TOOLS
• Standard Tool Box
• Drill and drill bits (drill bit sizes and hole depths vary according to the bolts used - see Anchoring
Inserts Provided with the Senographe System (only for non-seismic areas) on page 354 and Anchor-
ing Inserts Not Provided with the Senographe System (for seismic areas) on page 355)).
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 60 minutes
4 SAFETY PRECAUTIONS
CAUTION
Follow standard safety practices for handling heavy equipment.
Never push on the covers to move the Gantry on its wheels. Push the base, or if necessary
pull on the large handle.
Before moving the Control Station on its transportation wheels, ensure that the wheels are
oriented in the desired direction of movement. If not, the Control Station can tip over.
• 5 securing screws (1).
• 5 anchoring inserts (2).
• 3 leveling screws(3).
• 3 jack feet (4).
• 6 caps for holes (5).
5
3
4
1
2
