GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A317 - Radiation Screen
Page no. 1463 Chapter 9
JC-DR-A-317.fm
Job Card D/R A317 - Radiation Screen Chapter 9
1SUPPLIES
Radiation screen
2 APPLICABILITY
This Job Card is only applicable to Control Stations higher than V1.
3TOOLS
Standard Tool Box
4 REQUIRED EFFORT
Personnel: 2 Field Engineers
Time: 60 minutes
5 SAFETY PRECAUTIONS
Power to the system must be off before beginning the procedure.
6 PRE-REQUISITES
The Control Station have been secured to the floor in its correct position.
7 PROCEDURE
7-1 Disassembly

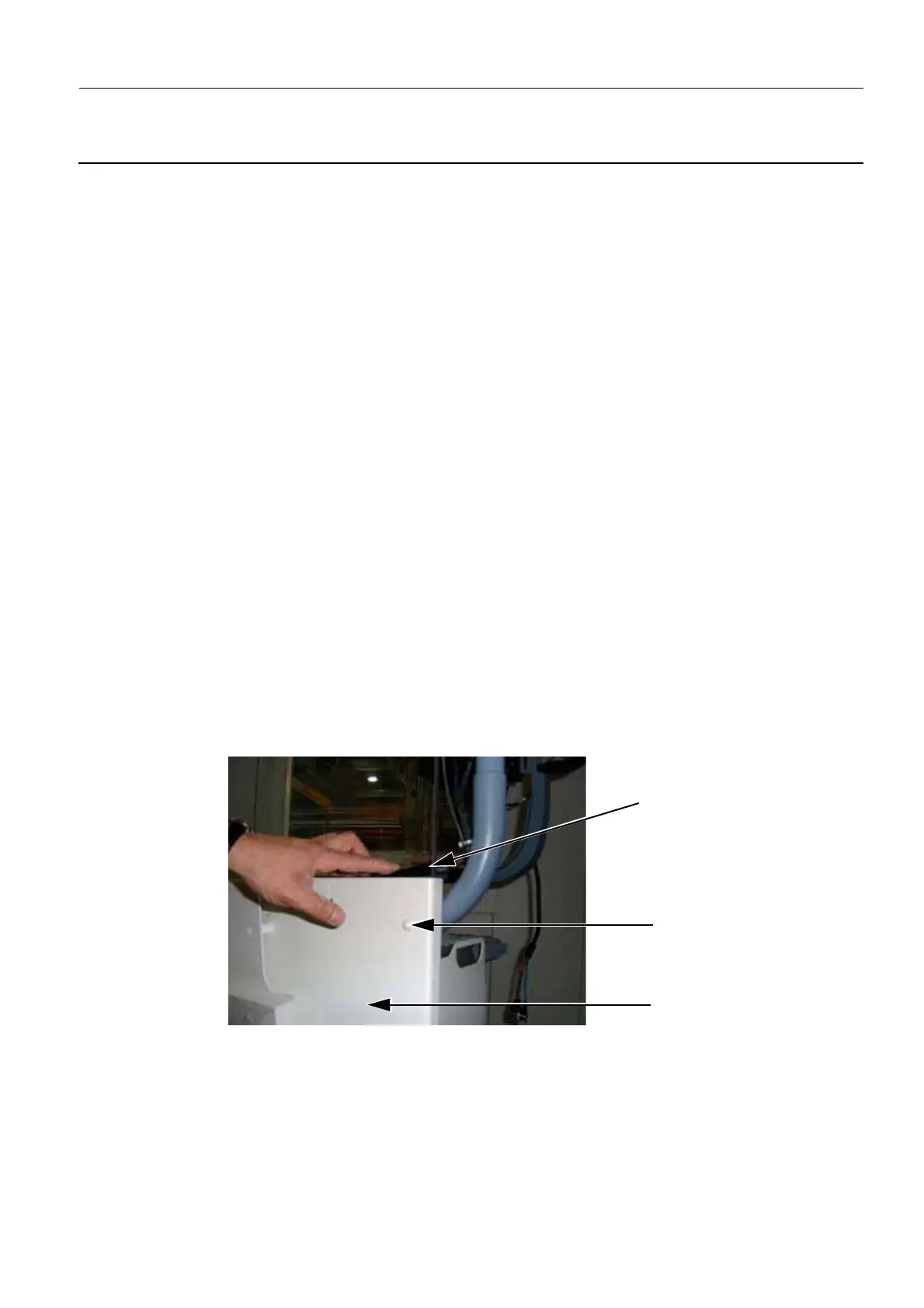

1. Remove the main frame-radshield joint (1) between the radiation screen and the frame.
2. Use a screwdriver to remove the eight screw covers (2) from the fixing points of the edge pinches (3).
3. According to the site configuration, remove the edge pinch on the side where the radiation screen
1
2
3
