GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card CAL A049 - Compression Paddle Offset Calibration
Page no. 1711 Chapter 9
JC-CAL-A-049.fm
Job Card CAL A049 - Compression Paddle Offset Calibration Chapter 9
1SUPPLIES
None
2TOOLS
Set of acrylic plates
Calipers
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 5 minutes per Compression Paddle (approximately 40 minutes for a set of Compression Paddles)
4 SAFETY PRECAUTIONS
No specific safety precautions are applicable.
5 APPLICABILITY
This Job Card should be used if you witness problems when peforming Job Card ELE A038 - AOP Mode
and SNR Check on page 707 and you have a Gantry CPU Board running NSC 1.2.13 or above.
6 PREREQUISITES
The procedure to calibrate the final offset for each Compression Paddle uses a command, whose syntax
refers to the padlle number. Before proceeding, consult Table 1 to know which paddle number corre-
sponds to each of the Compression Paddles delivered with the system.

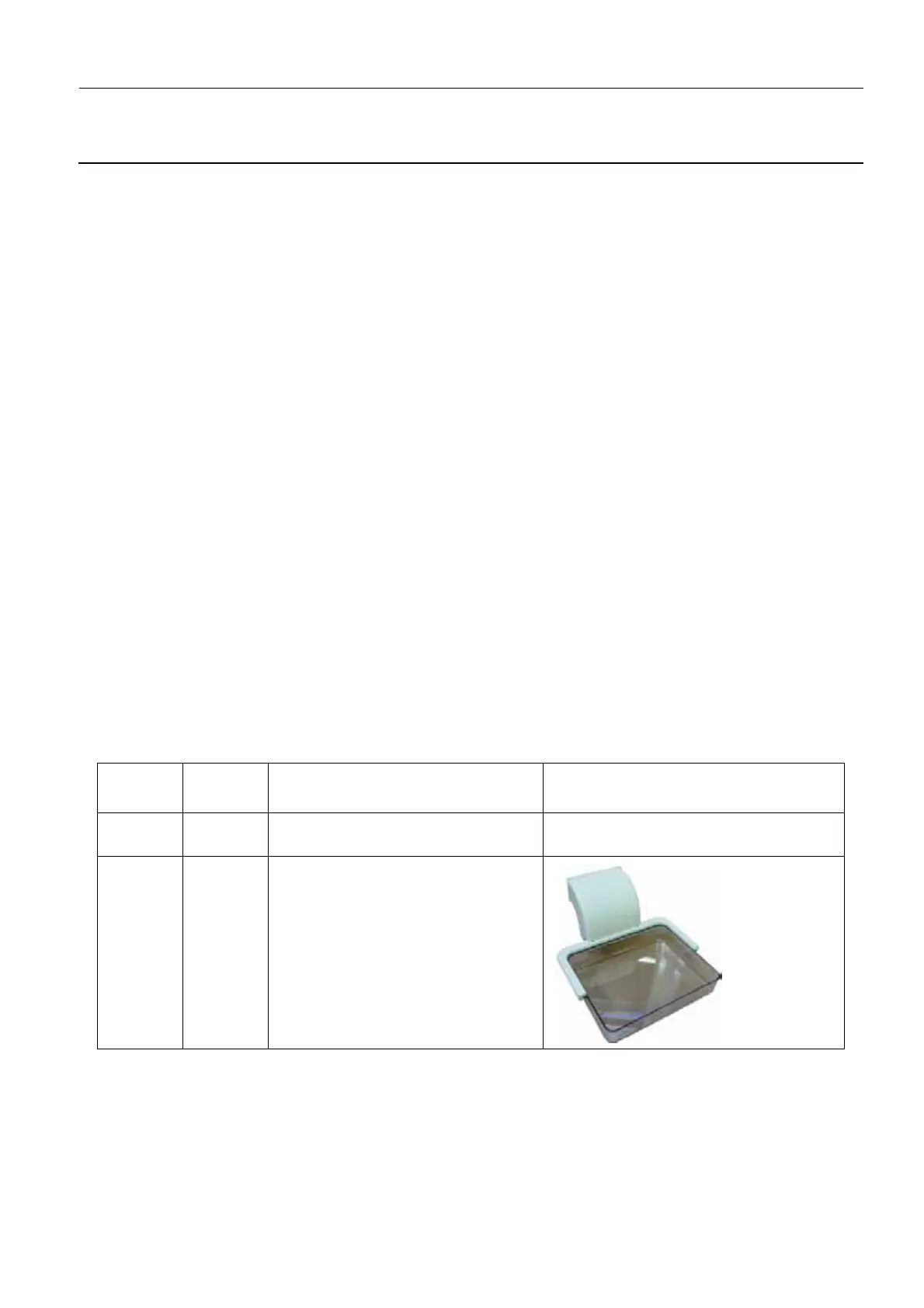

TABLE 1 - PADDLE NUMBER REFERENCES
Paddle
Number
Products Compression Paddle Name
(Ref. Number on Label)
1 DS Flexible 19x23
(2383182-2)
2 DS Standard 19x23
(2373344)
