GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A404 - HV Unit
Page no. 1559 Chapter 9
JC-DR-A-404.fm
Job Card D/R A404 - HV Unit Chapter 9
1SUPPLIES
• HV unit, equipped kV/mA
• HV grease
2TOOLS
• Standard Tool Box
3 REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 90 minutes
4 SAFETY PRECAUTIONS
Steps in this Job Card tell you when to take appropriate action to avoid electric shock.
5 PREREQUISITES
None
6 PROCEDURE
CAUTION
The HT block and kV/mA board assembly is factory calibrated. do not attempt to adjust
potentiometer P1 (HT probe frequency compensation).
6-1 Removal and the HV Unit
1. Switch off the electrical power supply from the Mains Distribution Panel in the room. Apply an appro-
priate LOTO padlock and label. Wait 10 minutes for the components within the Generator to dis-
charge.
2. Remove the four Generator side panels (see Job Card PHY A042 - Remove/Reinstall Generator
Covers on page 513) to reveal the HV Unit.

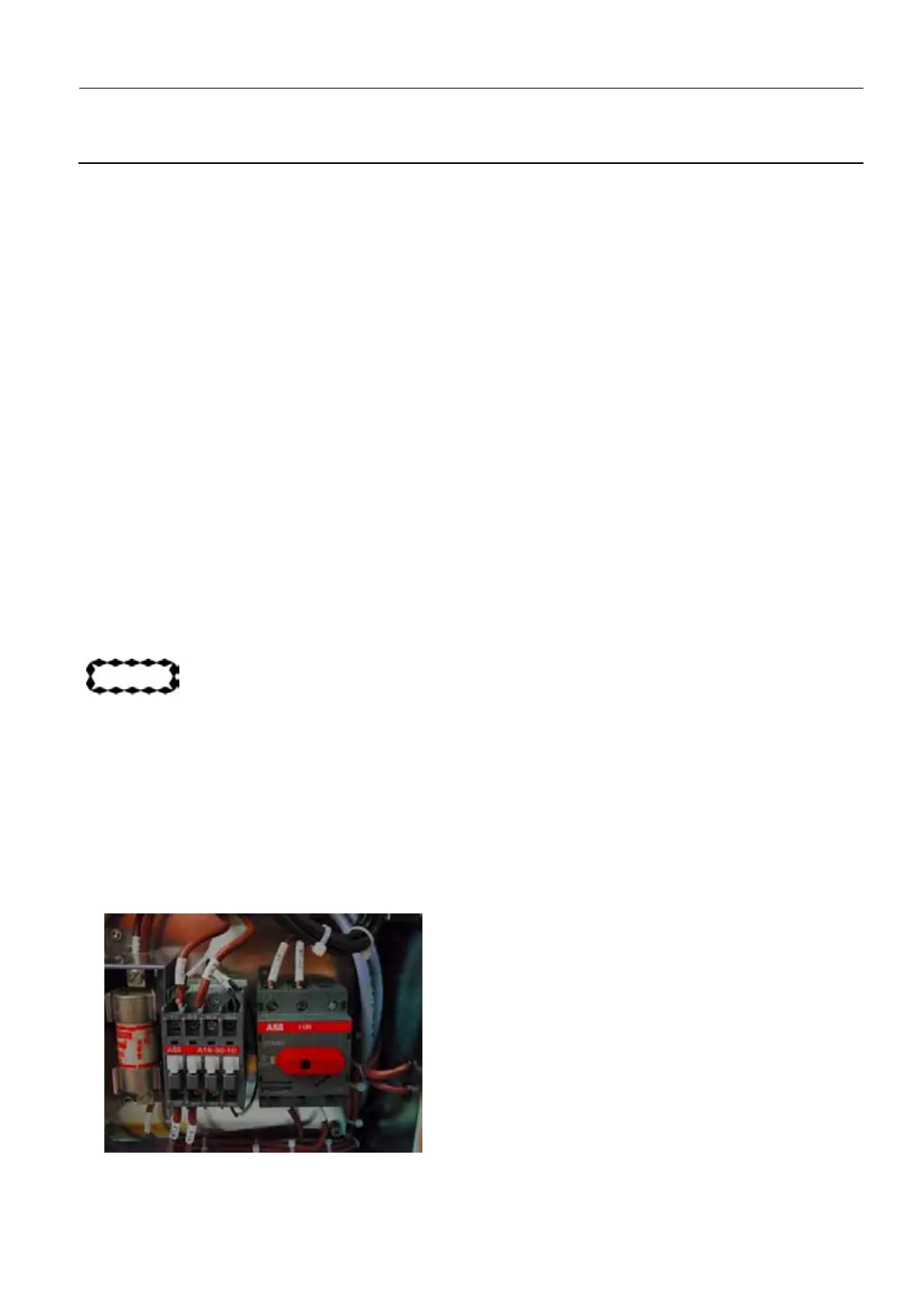

3. Switch off the electrical power supply on the rotary switch in the Generator cabinet (position 0).
To Next Page
