Chapter 9 Page no. 1324
JC-DR-A-250.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A250 - Compression Board
6 PROCEDURE
6-1 Disassembly of the Compression Board
1. Carefully disconnect all cables from the Compression board. Ensure that you do not move them too
much so it is easier to re-connect them later on.

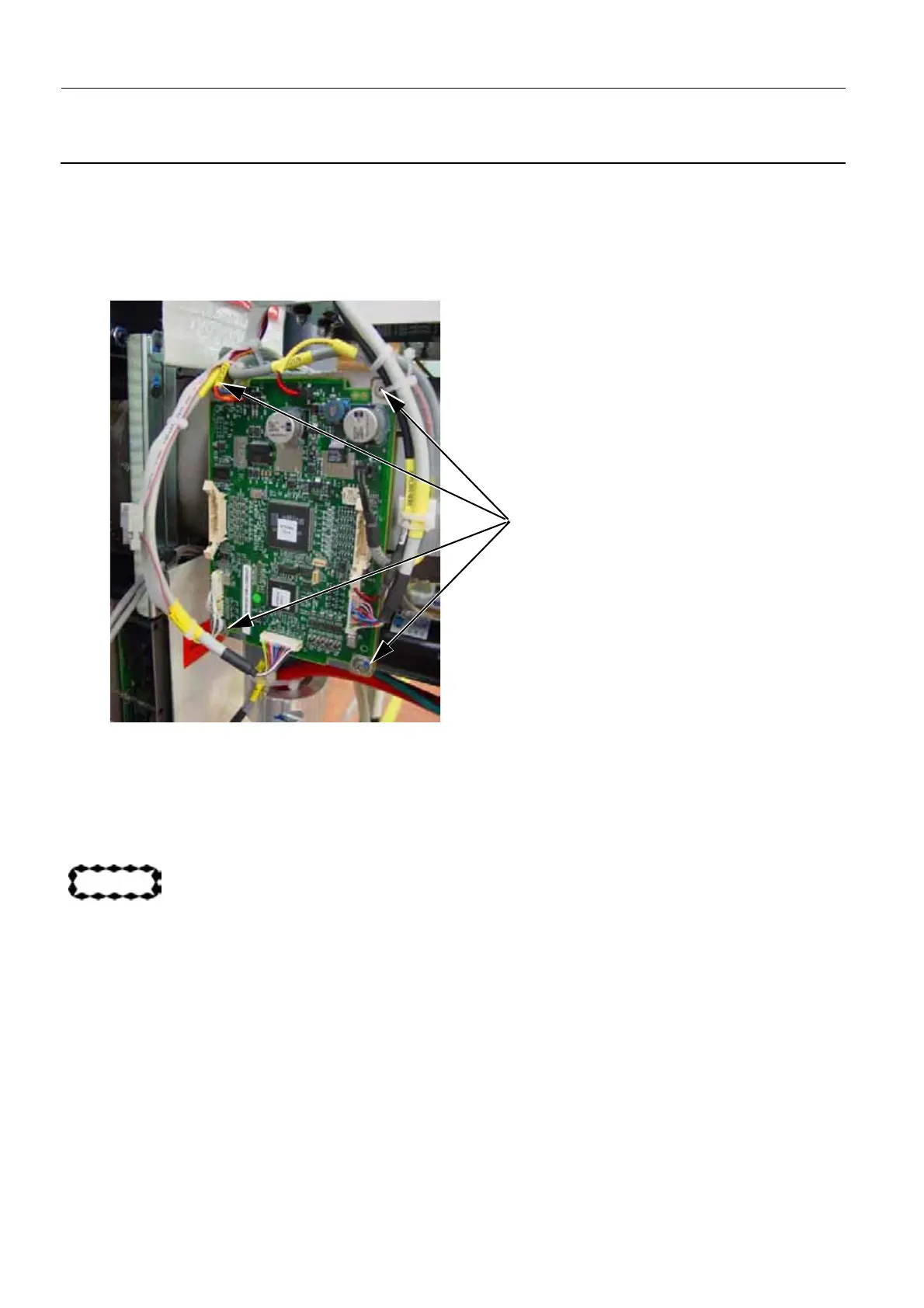

2. Remove the four screws (2) securing the Compression board (2.5 mm allen wrench).
3. Remove the Compression Board.
6-2 Reassembly of the Compression Board
1. Carefully place the new Compression board in position and secure it using the four screws (2.5 mm
allen wrench).
CAUTION
Ensure that you do not pinch the cables that are in close proximity to the Compression
board.
2. Connect all the cables to the new Compression board as summarized in the diagram and table
below.
2
