GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A319 - Rotative Arm
Page no. 1501 Chapter 9
JC-DR-A-319.fm

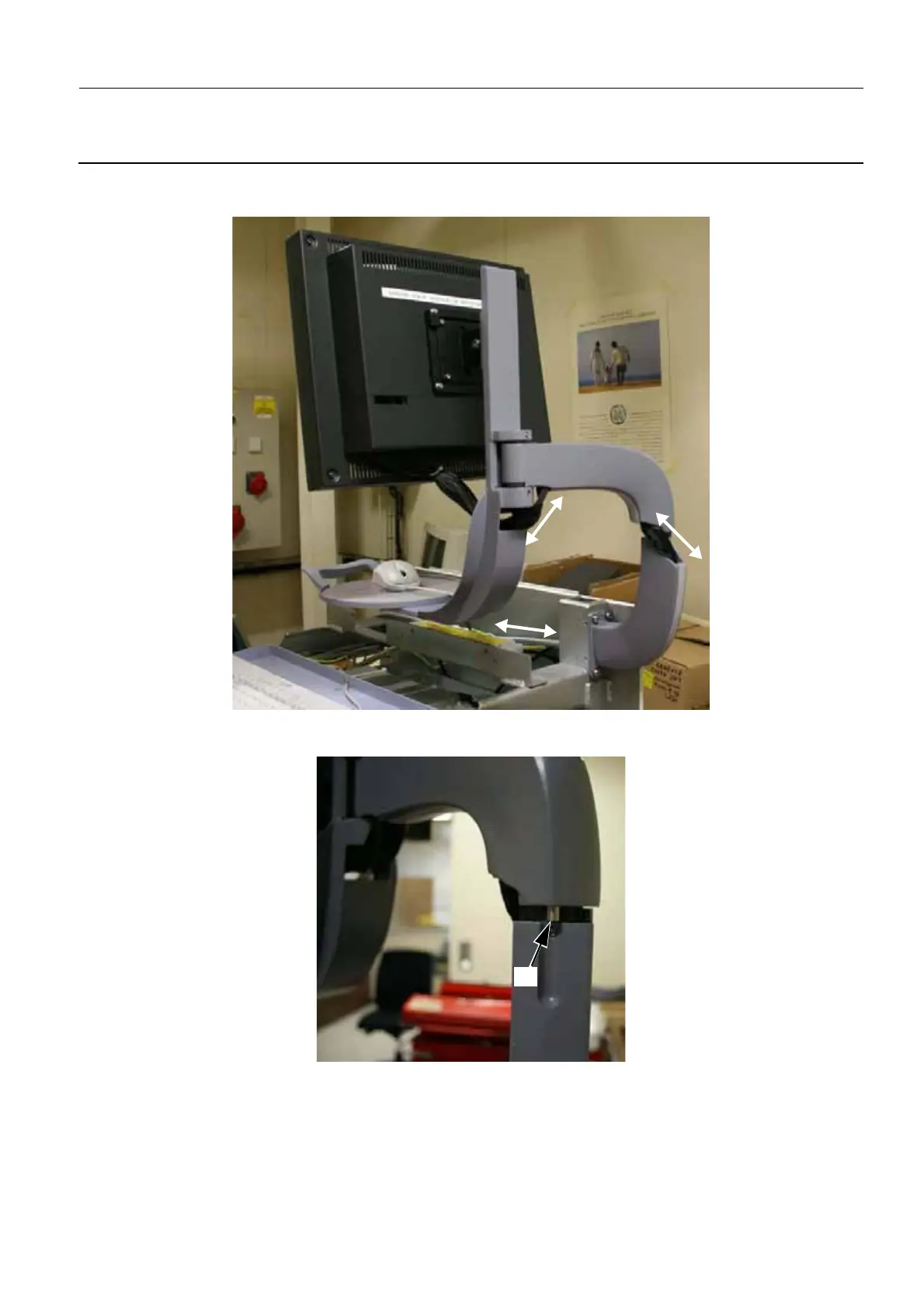

16. Turn the rotative arm though all extremes, and check that the harness, monitor cables, and mouse
cable are free to move as indicated below.
17. When moving the rotative arm through the extreme positions, check that the stop bracket screw (18)
is correctly positioned to avoid a collision with the radiation screen.
18. Reinstall the Omega cover then Top cover (refer to Job Card PHY A040 - Remove/Reinstall Control
Station Covers on page 503).
19. Reinstall and reconnect X-ray Console.
