Figure 4-3 Number example
4.1.6 Smart Cooling Product Installation
Installation Dimension
Smart cooling product outdoor units are available in three models, NetCol500-
A018, NetCol500-A020, and NetCol500-A021, Figure 4-4, Figure 4-5 and Figure
4-6 show the dimensions of NetCol500-A018, NetCol500-A020, and NetCol500-
A021.
NetCol500-A018, NetCol500-A020, and NetCol500-A021 are installed in the same way. This
manual uses gures of NetCol500-A018 as examples.

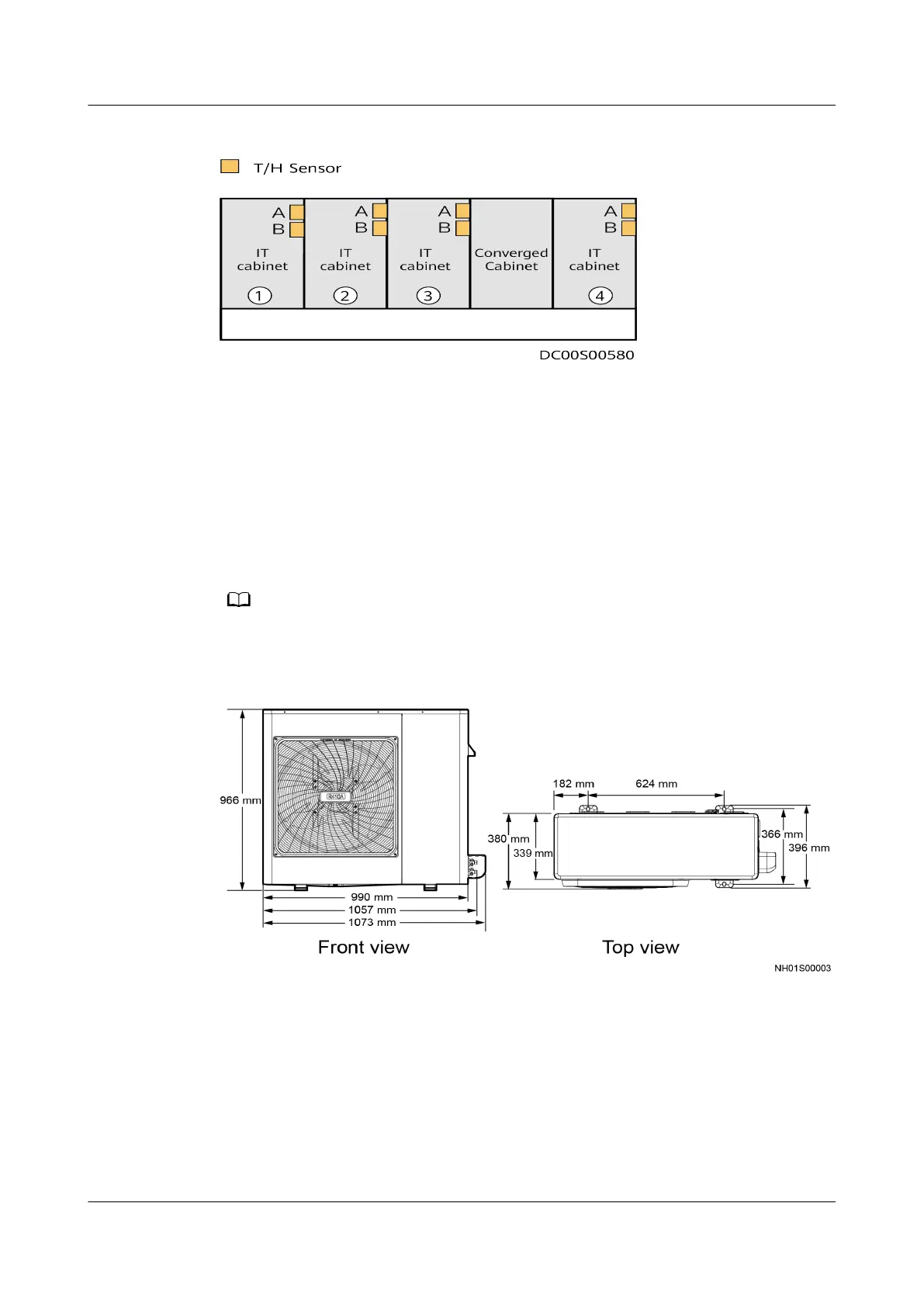

Figure 4-4 Installation dimensions of NetCol500-A018
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 99
To Next Page
