4.3.3 Power Cable Routing

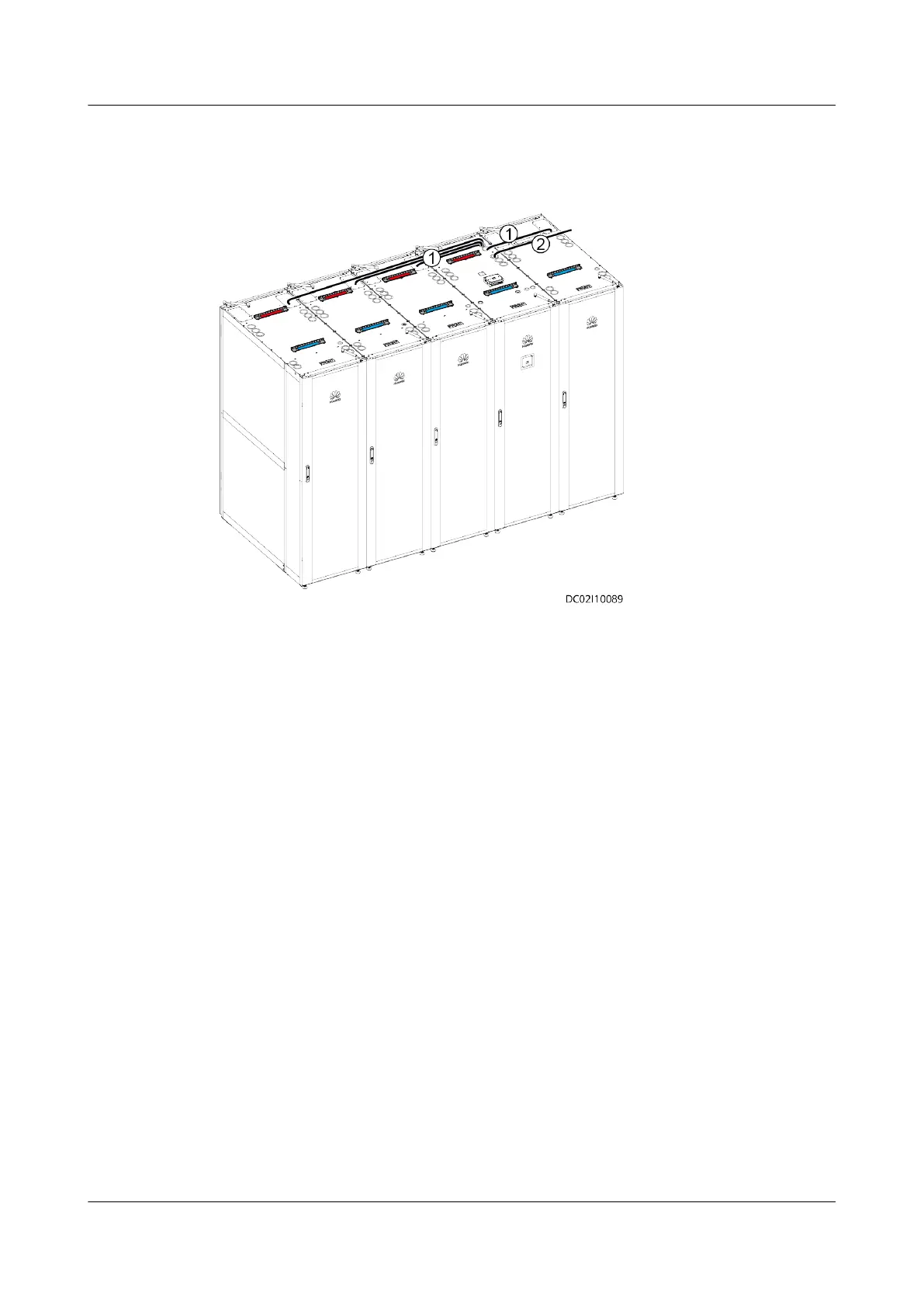

Figure 4-189 Power cable routing
(1) PDU2000 power cables (2) Mains input power cables
4.3.4 Grounding the Smart Module
1. Connect the general ground point in each cabinet to the general ground bar
in the Converged Cabinet.
2. Connect the general ground bar in the Converged Cabinet to the oor ground
bar or collective ground bar.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 222
