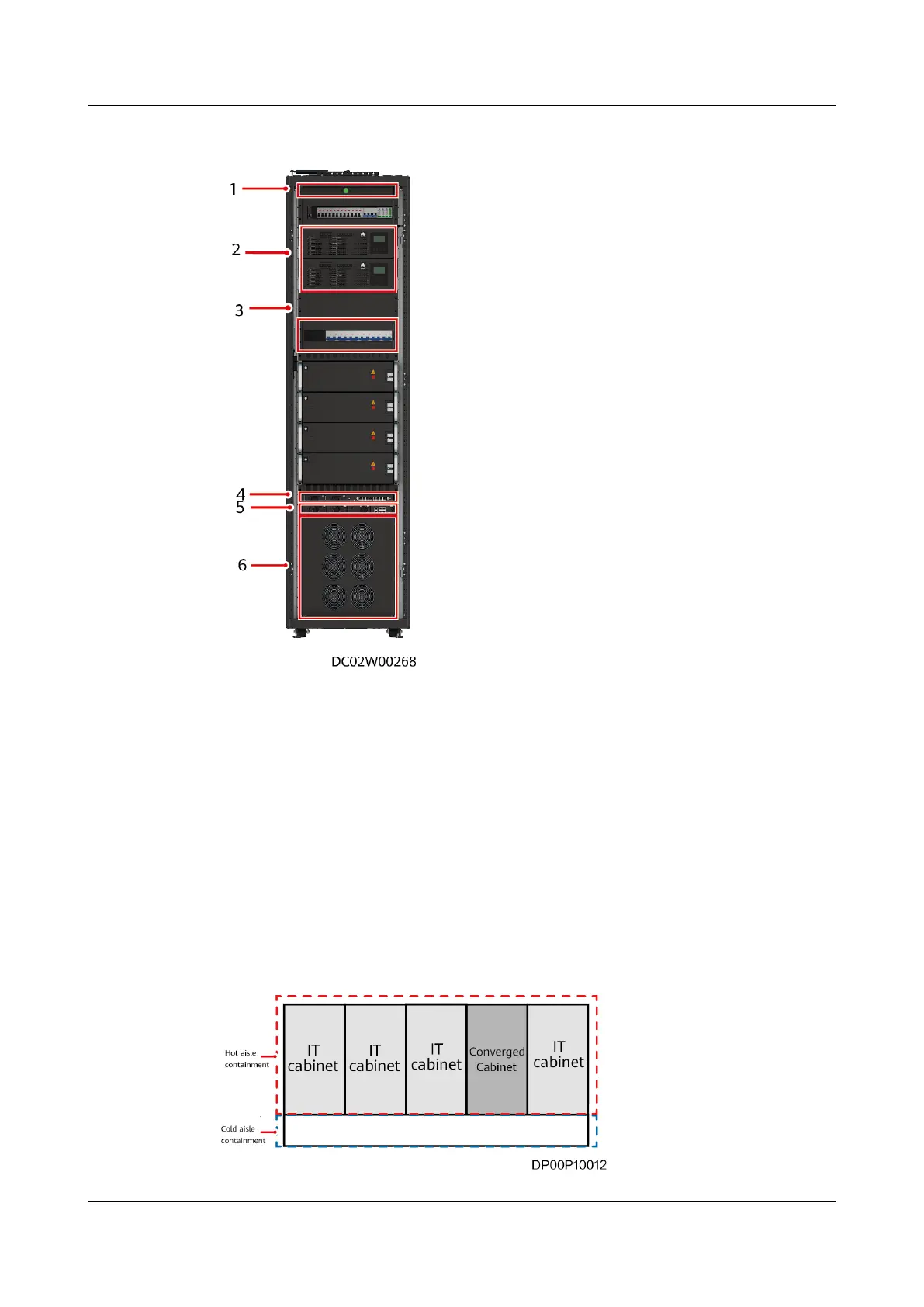

Figure 3-5 Modules in the Converged Cabinet
(1) Indicator module (2) UPS2000-G (3) Power distribution module
(4) ECC800-Pro (5) Smart cooling product
control unit
(6) Smart cooling product
indoor unit
3.1.3 Components of Single-Row Cold and Hot Aisle
Containment
The components of single-row aisle containment include an enclosed framework,
door components, and binding plates (or M-shaped cable troughs).
Single-row cold and hot aisle containment
Figure 3-6 Layout of single-row cold and hot aisle containment
