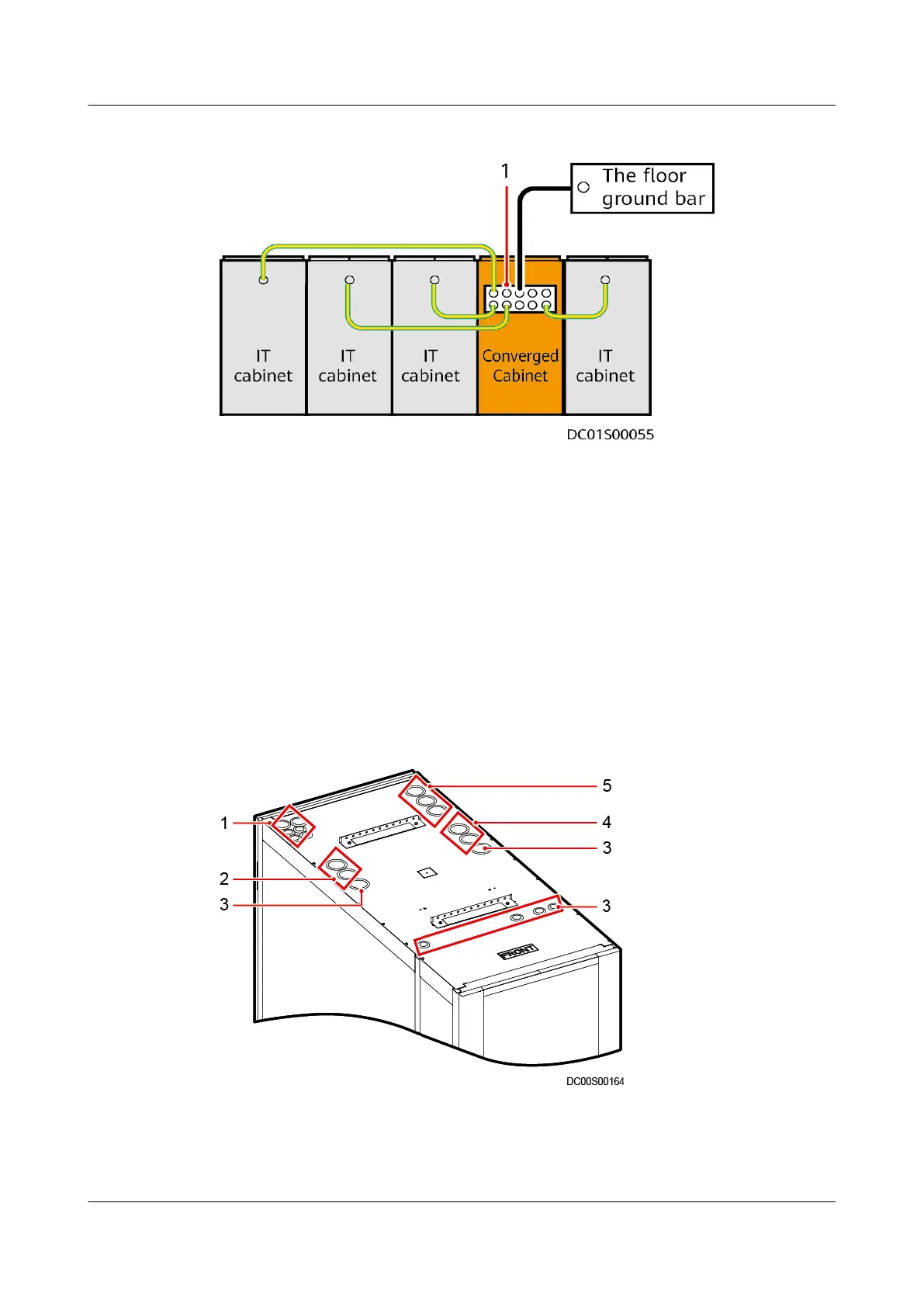

Figure 4-192 Grounding the Smart Module
(1) General ground bar
4.3.5 Cable Connections to the Power Supply and Distribution
System
4.3.5.1 Top Cable Routing
4.3.5.1.1 Cable Routing Description
Figure 4-193 Cable holes for routing cables over the top of the Converged Cabinet
(1) Holes for pipes of smart cooling products
(2) Power cable holes
(3) Signal cable holes (4) Input power cable holes
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 224
