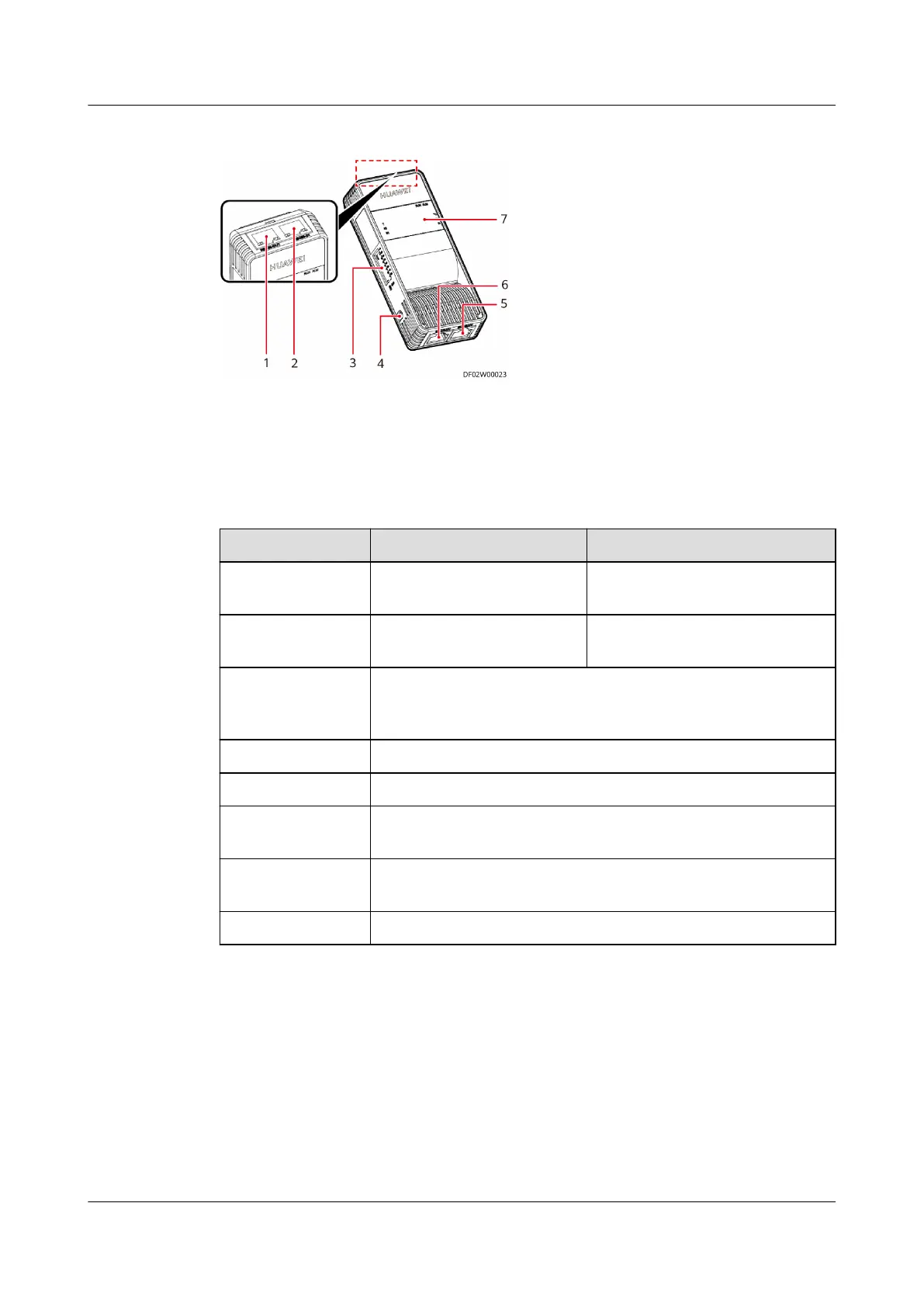

Figure 3-37 Appearance
(1) RS485-OUT (2) RS485-IN (3) DIP switch (4) Button
(5) NTC1–3 (6) NTC4–6 (7) Display
T/H Sensor (BOM Number: 02312PBL)
Table 3-42 T/H sensor specications
Item Temperature Humidity
Measurement
range
–40°C to +70°C 1%–99% RH
Measurement
precision
≤ ±1°C (25°C) ≤ ±5% RH (25°C, 20%–80%
RH)
Extended
temperature
collection port
Provides two RJ45 ports to connect to six NTC temperature
sensors, each RJ45 port connecting to three NTC
temperature sensors.
Signal port RS485
Power supply 5–16 V DC (typical value 12 V DC)
Power
consumption
< 280 mW
Storage
environment
–40°C to +70°C
Weight About 85 g
3.4.3.8.4 Temperature Sensor
The temperature sensor (BOM number: 33010348) is used for surface temperature
measurement, industrial process control, and measurement instruments.
