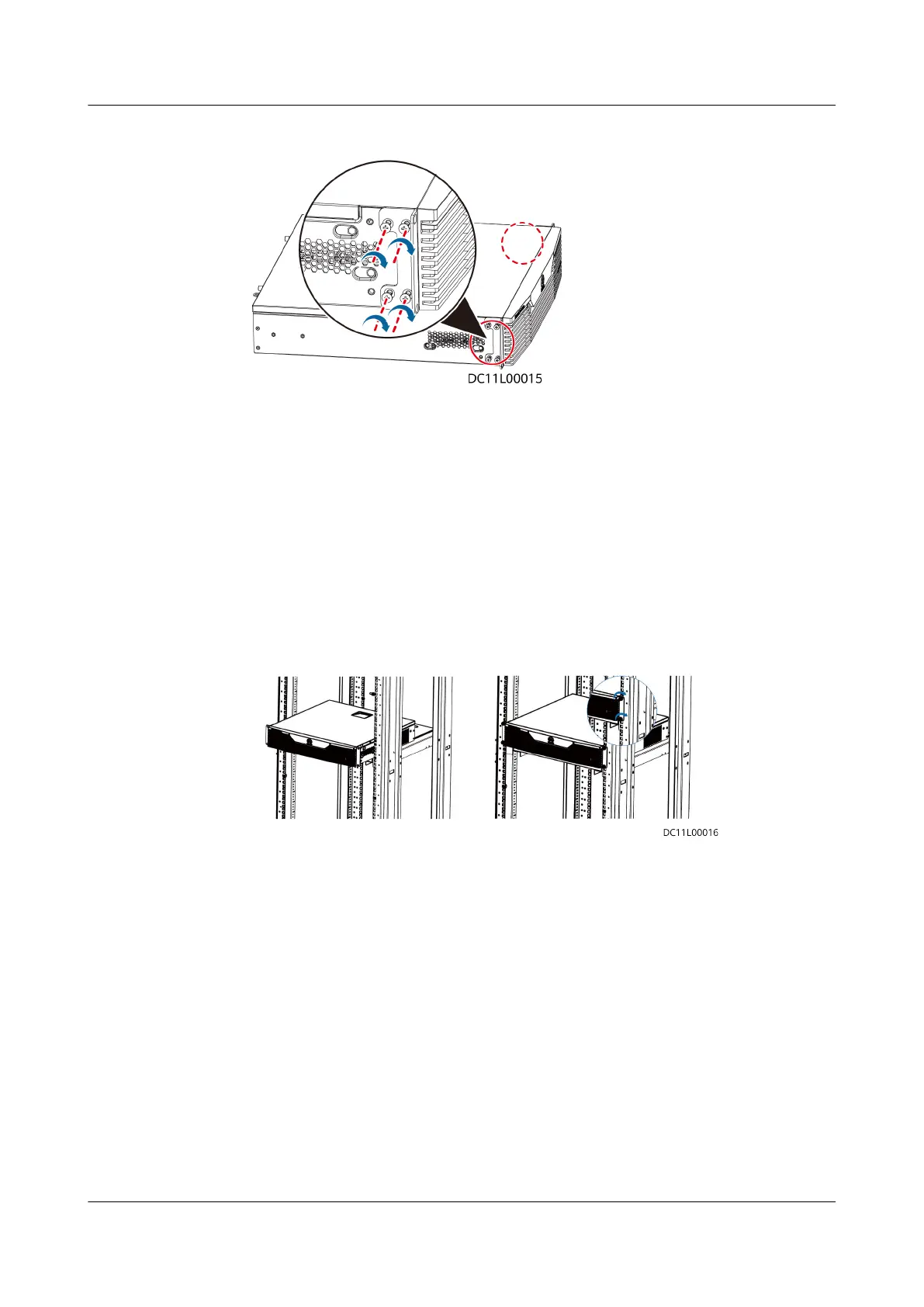

Figure 4-137 Installing mounting ears
6. Install the IVS1800 in the cabinet.
1. Lift the device from both sides and carefully position it at the front of the
cabinet.
2. Lift the device slightly above the guide rails, gently place it on the guide
rails, and then slide it into the cabinet until the mounting ears of the subrack
contact the mounting bars at the front of the cabinet.
7. Thread M6 screws (prepared by the customer) through two slotted holes on
each mounting ear. Fasten the M6 screws using a Phillips screwdriver to
x
the mounting ears on the front mounting bars of the cabinet, as shown in the
lower right gure.
Figure 4-138 Securing the device
Step 3 Power on the device.
1. Turn on the power switch.
2. Check the indicators on the front panel of the device for its running status.
----End
4.2.9.8 Installing a Smart ETH Gateway and an ETH Converter
If a smart ETH gateway is
congured, perform the following steps to install it.
Prerequisites
● The smart ETH gateway (prepared by the customer), guide rails, screws, and
other installation accessories are available.
● The number and installation positions of smart ETH gateways have been
determined.
