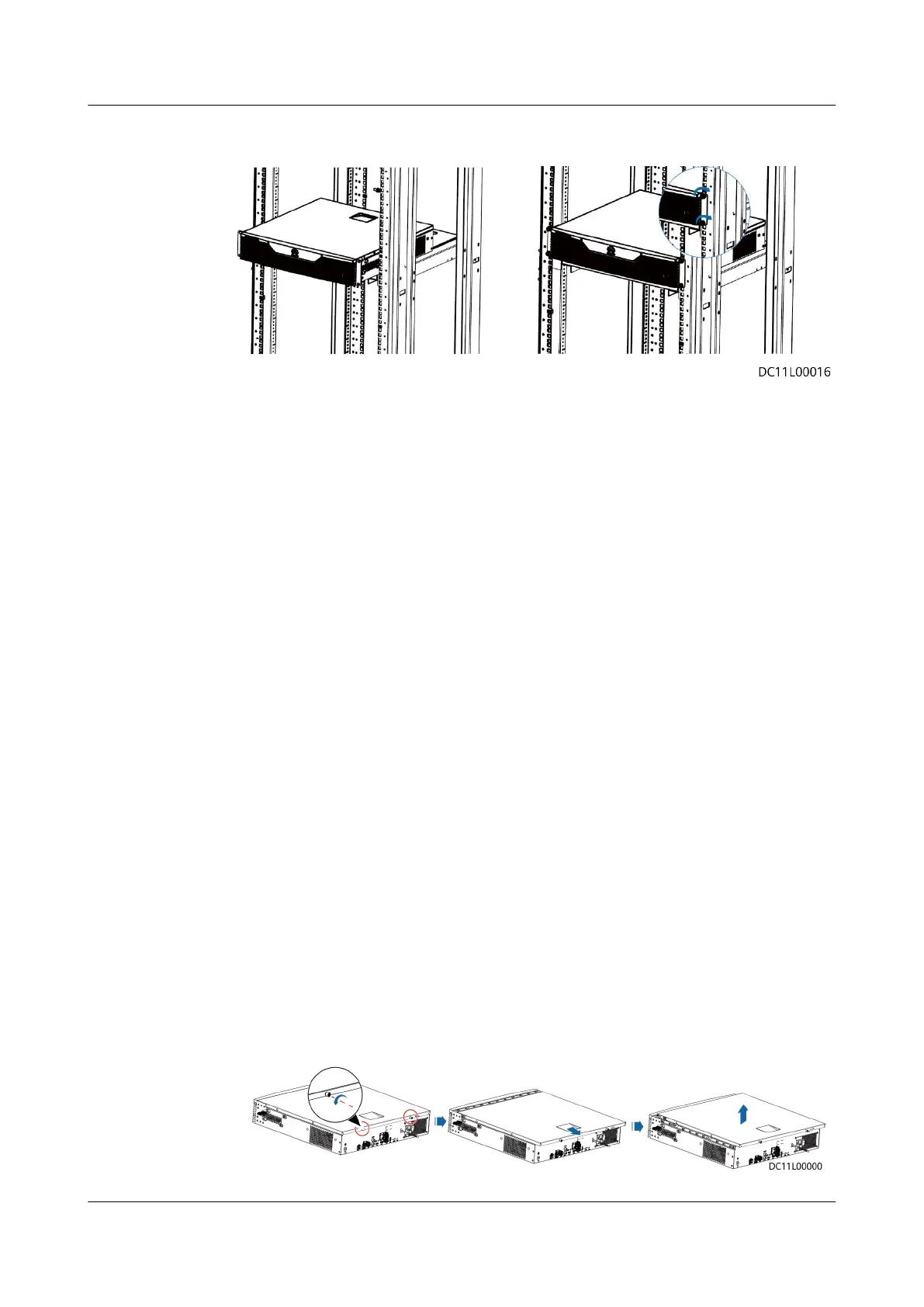

Figure 6-55 Installing a device
Step 4 Reconnect the cables to the new IVS1800.
Step 5 Turn on the power switch of the IVS1800.
Step 6 Commissioning the IVS1800. If the video recording function works properly after
commissioning, the IVS1800 is functional.
----End
6.4.4.9 Replacing a Hard Disk for the IVS1800
Prerequisites
● A hard disk needs to be replaced.
● Data in the hard disk has been backed up.
● A spare hard disk of the same model is available and functional.
● Before replacing a faulty disk, ensure that the power switch on the rear panel
is
o and disconnect the power cable to power o the device.
Context
Recommended tools and materials: Phillips screwdriver, ESD wrist strap (or ESD
gloves).
Procedure
Step 1 Put on an ESD wrist strap (or ESD gloves) and insert the ground terminal into the
ESD jack in the cabinet.
Step 2 Remove the faulty hard disk.
1. Use a PH2 screwdriver to remove the two black screws on the rear of the
chassis cover, and take
o the chassis cover.
Figure 6-56 Removing the chassis cover
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 467
