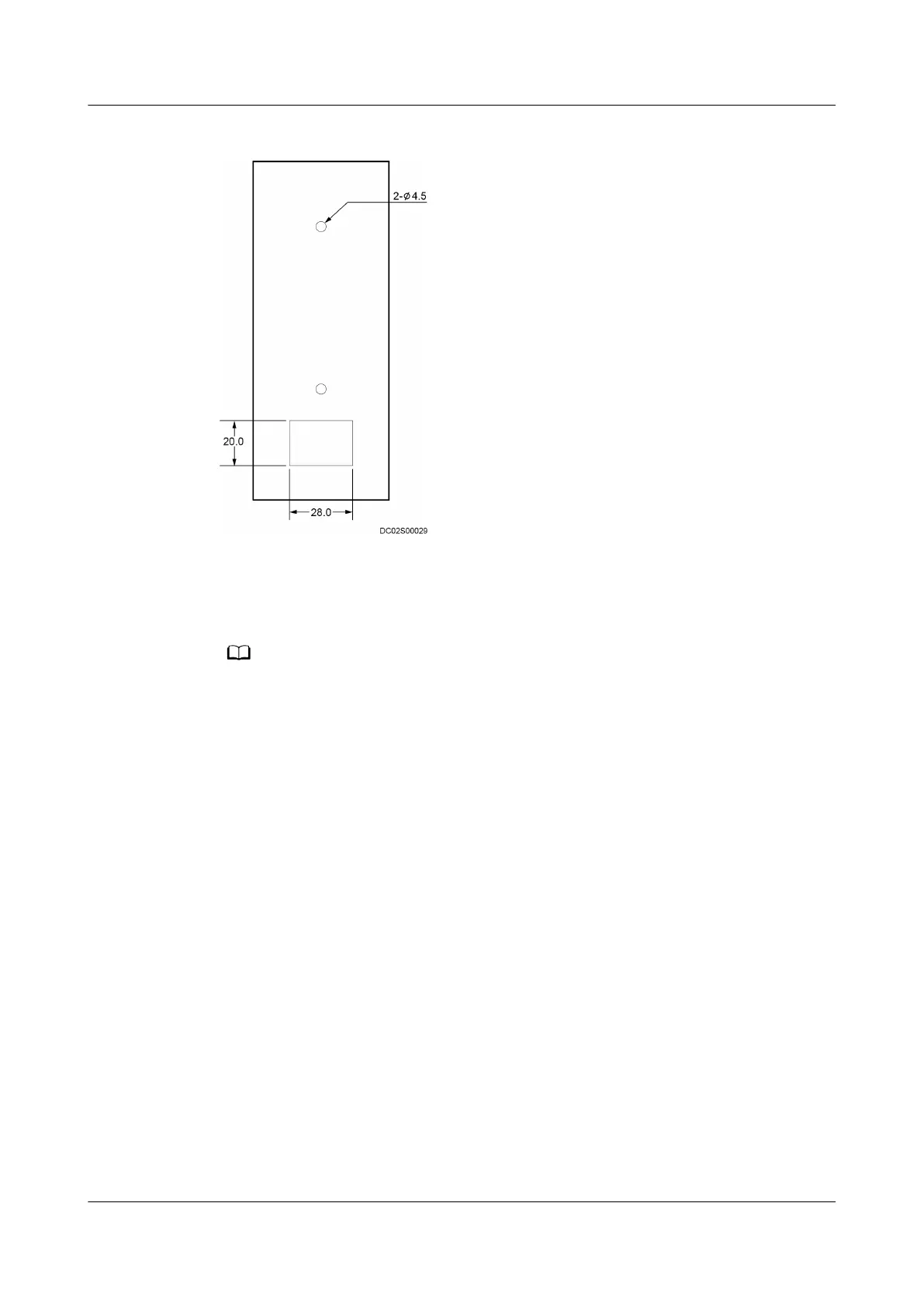

Figure 4-172 Marking mounting holes (unit: mm)
Step 3 Install the baseplate, as shown by (3) in Figure 4-171.
Step 4 Route the
ngerprint and card reader cable through the cable hole in the
baseplate, as shown by (4) in Figure 4-171.
The ngerprint and card reader is connected to the access actuator by a network cable.
Step 5 Check that cables are correctly connected.
Step 6 Secure the ngerprint and card reader to the baseplate, as shown by (5) and (6)
in Figure 4-171.
----End
4.2.9.16 (Optional) Installing an In-Room Card Reader with a Keypad
Context
● The BOM number of a card reader with a keypad is 02070172.
● It is recommended that the device be installed outside a room 1.4-1.6 m
above the
oor.
● Do not install the product in a place with heavy dust or exposed to sunlight.
Procedure
Step 1 Remove the screws (set aside) from the card reader with a keypad and take o
the baseplate, as shown by (1) in Figure 4-173.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 211
