4.2.9.17 (Optional) Installing an In-Room Exit Button
Context
The BOM number of an exit button is 52220135.
Procedure
Step 1 Remove the exit button cover using a at-head screwdriver.
Step 2 Remove screws from the exit button, remove the base, and mark mounting holes
using the base and a marker.
Step 3 Drill holes and install the exit button base.
Step 4 Take out the network cable, cut
o one end of the cable, and connect pins 6 and 7
to the NO and COM ports on the exit button.
The exit button is connected to the access actuator by a network cable.
Step 5 Route the cable through the cable hole.
Step 6 Reinstall the exit button and the cover.
----End
4.2.9.18 (Optional) Installing an In-Room Emergency Door Release Button
Context
● The BOM number of an emergency door release button is 02070053.
● It is recommended that the device be installed outside a room 1.6 m above
the oor.
Procedure
Step 1 Remove the emergency door release button.

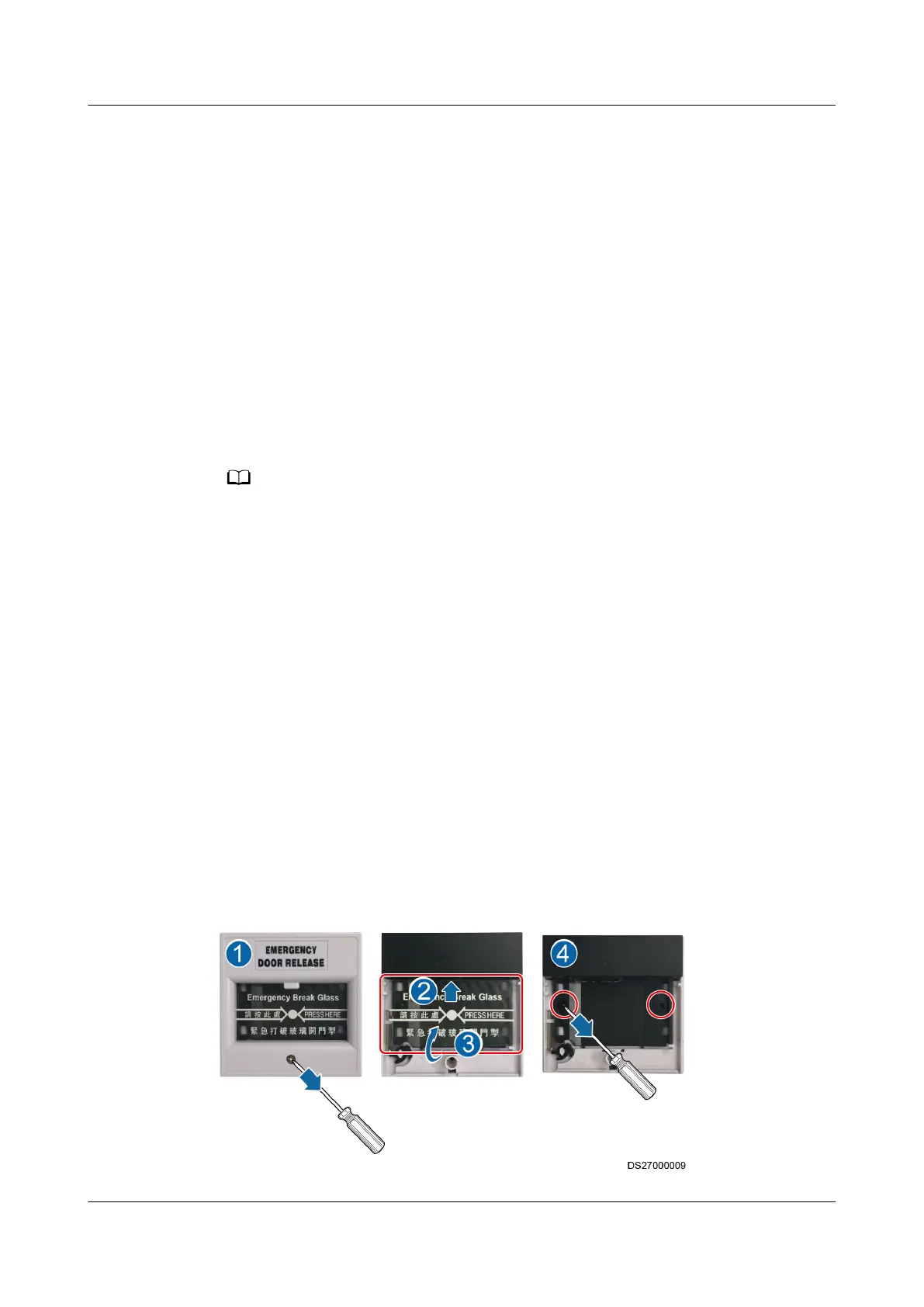

Figure 4-175 Removing an emergency door release button
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 213
