Procedure
Step 1 Label each cable based on the corresponding ports on the smart ETH gateway.
Step 2 Disconnect cables from the smart ETH gateway.
Step 3 Remove the faulty smart ETH gateway from the guide rail, as shown in Figure
6-51.

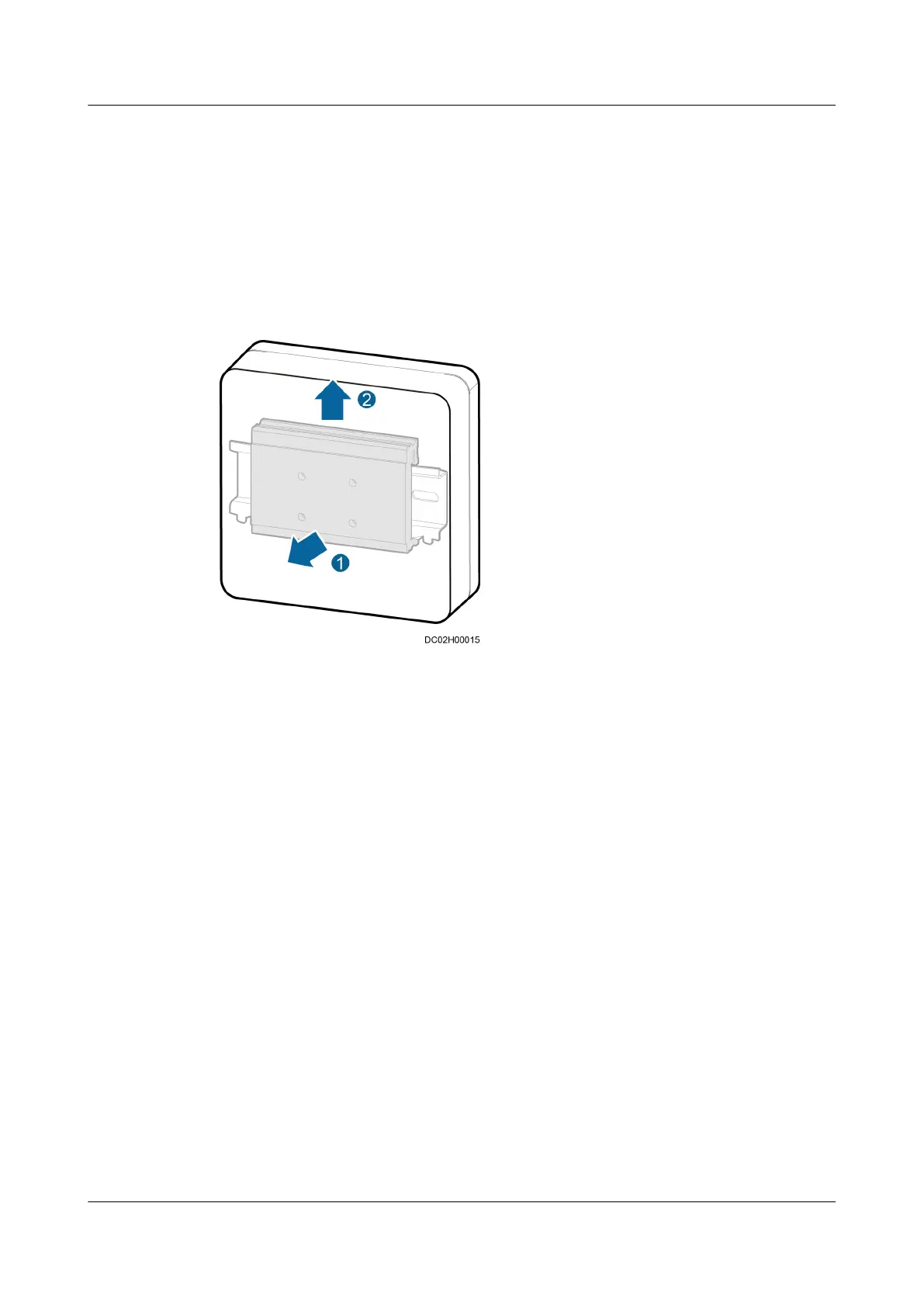

Figure 6-51 Removing the smart ETH gateway
Step 4 Install a new smart ETH gateway in the original position and connect the cables.
Step 5 Choose Monitoring > System > ECC800-Pro > Controls and delete the device
failing in communication.
Step 6 Check whether the status indicator of the smart ETH gateway is blinking slowly. If
yes, the smart ETH gateway is functional.
Step 7 Choose Home > Plan View and add a new smart ETH gateway in the appropriate
position.
----End
6.4.4.6 Replacing an ETH Converter
Prerequisites
A spare ETH converter of the same model is available and functional.
Impact on the System
The device at the rear of the ETH converter is disconnected.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 463
