Preparations
Tools: ESD wrist strap, ESD gloves, step ladder, label, marker
Material: ETH converter
Documents: none
Skill requirement: ELV engineer
Procedure
Step 1 Label each cable based on the corresponding ports on the ETH converter.
Step 2 Disconnect cables from the ETH converter.
Step 3 Remove the faulty ETH converter.
Step 4 Install the spare ETH converter in the original position and connect the cables.
----End
6.4.4.7 Replacing a Camera
Prerequisites
● Recommended tools and materials: inner hexagon screwdriver (delivered with
the product package), step ladder (2 m)
● A camera needs to be replaced.
● A spare camera of the same model is available and functional.
Procedure
Step 1 Remove the front cover of the camera in the direction shown in Figure 6-52, and
remove the screws on the front cover.

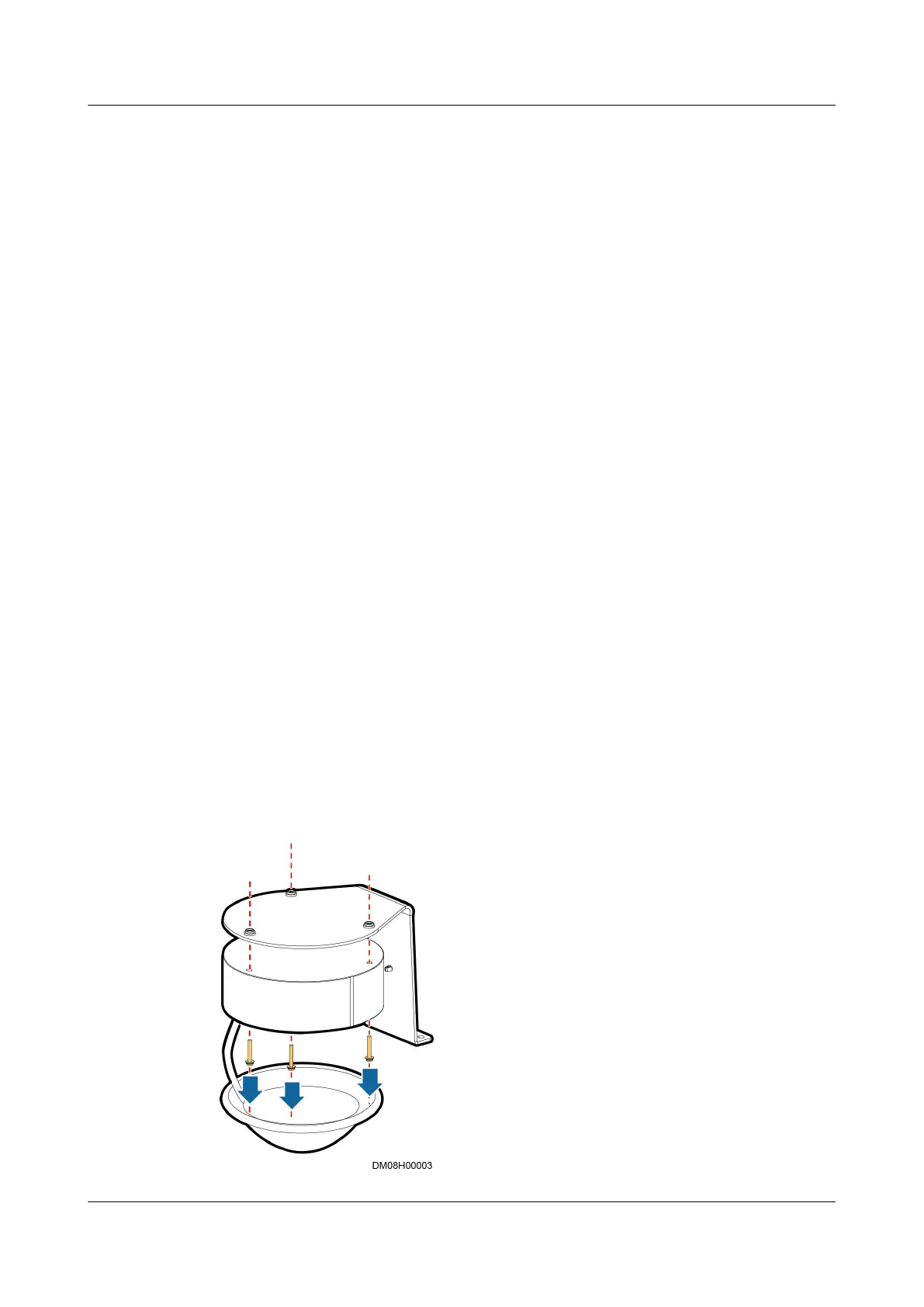

Figure 6-52 Removing the front cover
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 464
