Figure 4-126 Installing a front cover
----End
4.2.9.7 Installing an IVS1800
Context
By default, the IVS1800 is delivered without disks. After the IVS1800 is delivered to
the site, install hard disks as required and then install the IVS1800 in the cabinet.
Procedure
Step 1 Install hard disks.
1. Use a PH2 screwdriver to remove the two black screws on the rear of the
chassis cover, and take
o the chassis cover.

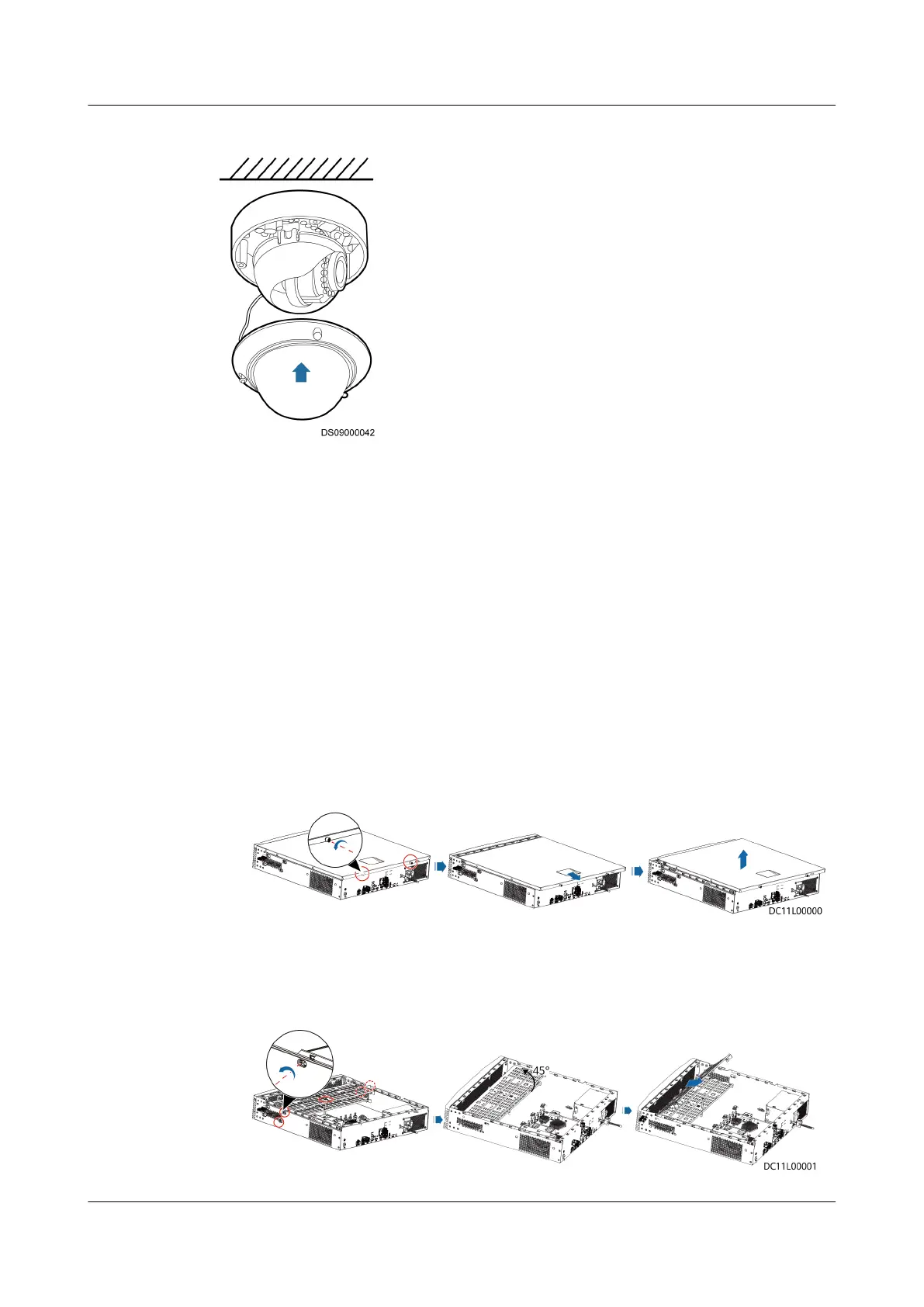

Figure 4-127 Removing the chassis cover
2. Remove two black screws on each side of the chassis and the silvery white
one on top of the hard disk tray, raise the hard disk tray by 45 degrees, and
take out the upper and then lower layers of hard disk tray.
Figure 4-128 Removing the hard disk tray
