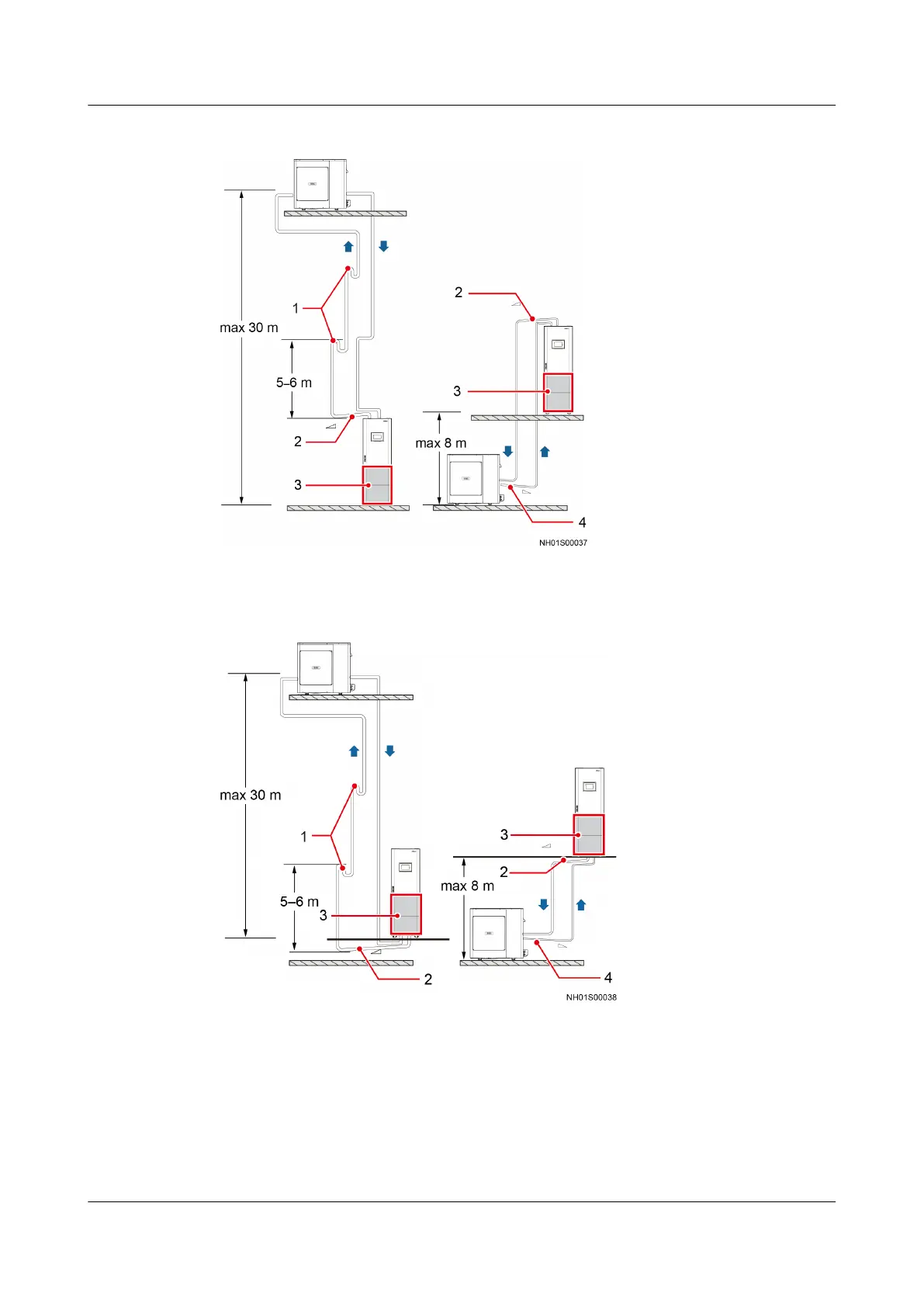

Figure 4-39 Layout of upward piping
(1) Oil trap (2) Tilted gas pipe (3) Indoor unit (4) Tilted liquid pipe
Figure 4-40 Layout of downward piping
(1) Oil trap
(2) Tilted gas pipe (3) Indoor unit (4) Tilted liquid pipe
4.2.6.3 Installing an Outdoor Unit
4.2.6.3.1 Installation Requirements
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 125
