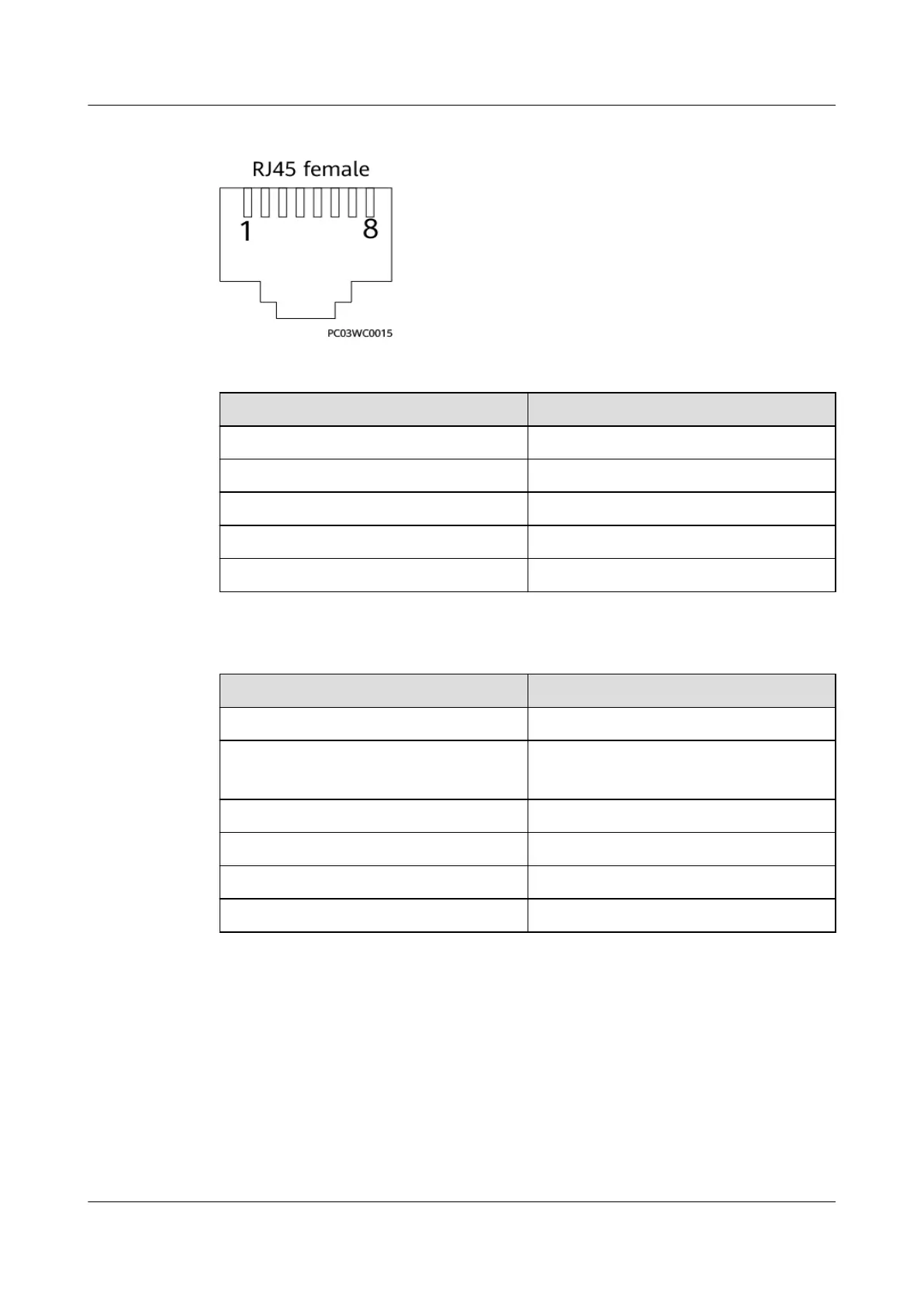

Figure 3-40 RJ45 port pins
Table 3-44 RJ45 port pin denitions
Pin Description
Pin1 or Pin 4 A
Pin2 or Pin 5 B
Pin3 V+
Pin6 V-
Pin7 Reserved
Table 3-45 T/H sensor
specications
Item
Specications
Temperature measuring range –20°C to +80°C
Temperature accuracy ±0.5°C (25°C)
≤ ±1°C (full measuring range)
Operating temperature –20°C to +80°C
Operating voltage 9–16 V DC
Storage temperature –40°C to +80°C
Output Two RJ45 ports, bidirectional cascading
3.4.3.8.6 Smoke Detector
A smoke detector detects smoke around cabinets.
FusionModule800 Smart Small Data Center
User Manual 3 System Architecture
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 70
