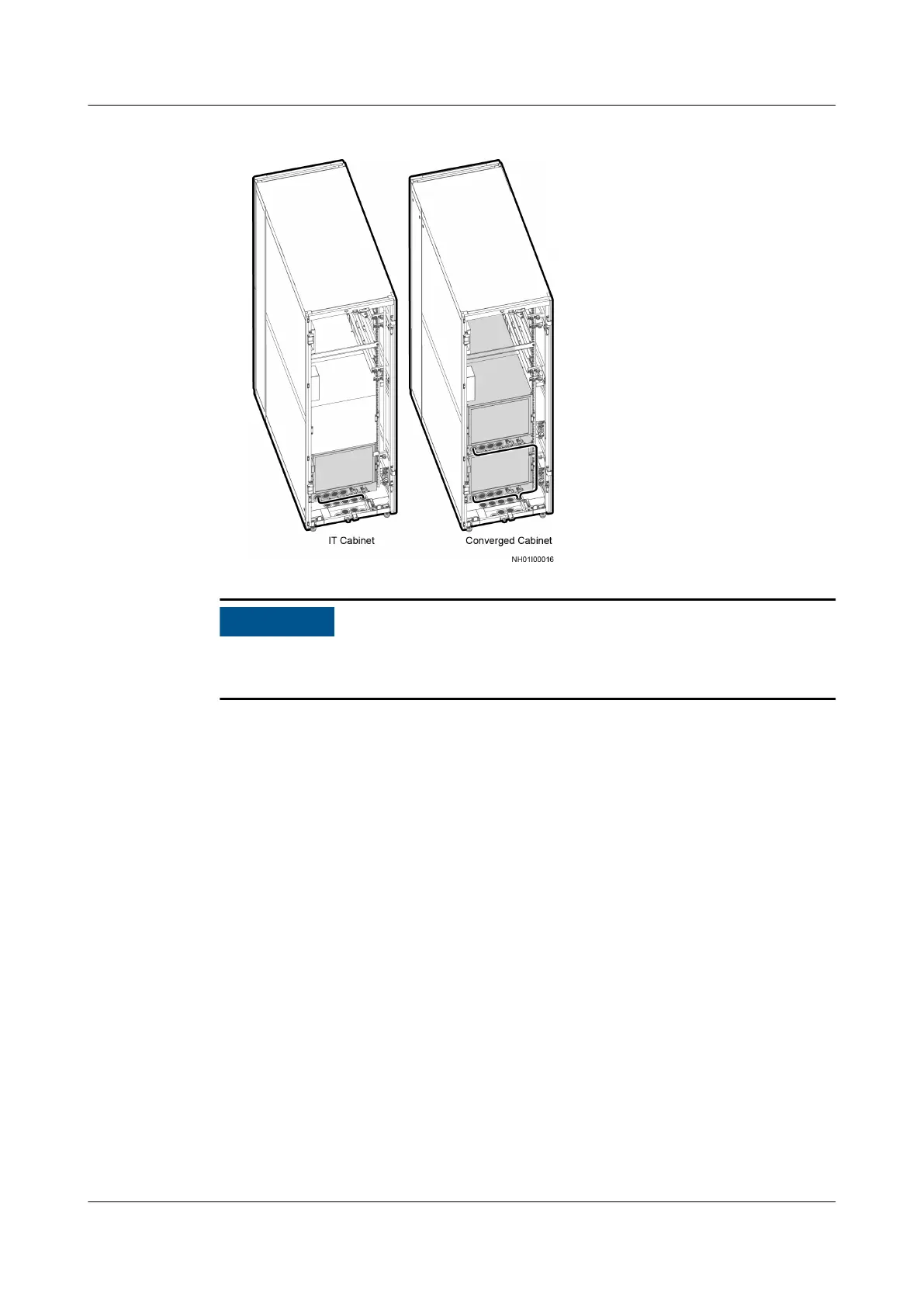

Figure 4-64 Bottom routing of the water inlet pipe
After routing water pipes, secure them to the pipe assembly using cable ties, and
seal the cable hole using restop putty.
----End
4.2.6.6.2 Connecting the Condensate Drainpipe
Context
The smart cooling product condensate drainpipe inside the cabinet can be routed
from top or bottom. Determine the pipe routing mode based on site conditions.
● In top pipe routing, connect the drainpipe to the check valve and then to the
cabinet top. The drain outlet reserved on the top of the cabinet connects to
an external pipe over the drainpipe connector in the
tting bag.
● In bottom pipe routing, the drainpipe connects to an external pipe over the
drainpipe connector in the
tting bag.
Figure 4-65 shows how to connect a drainpipe.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 143
