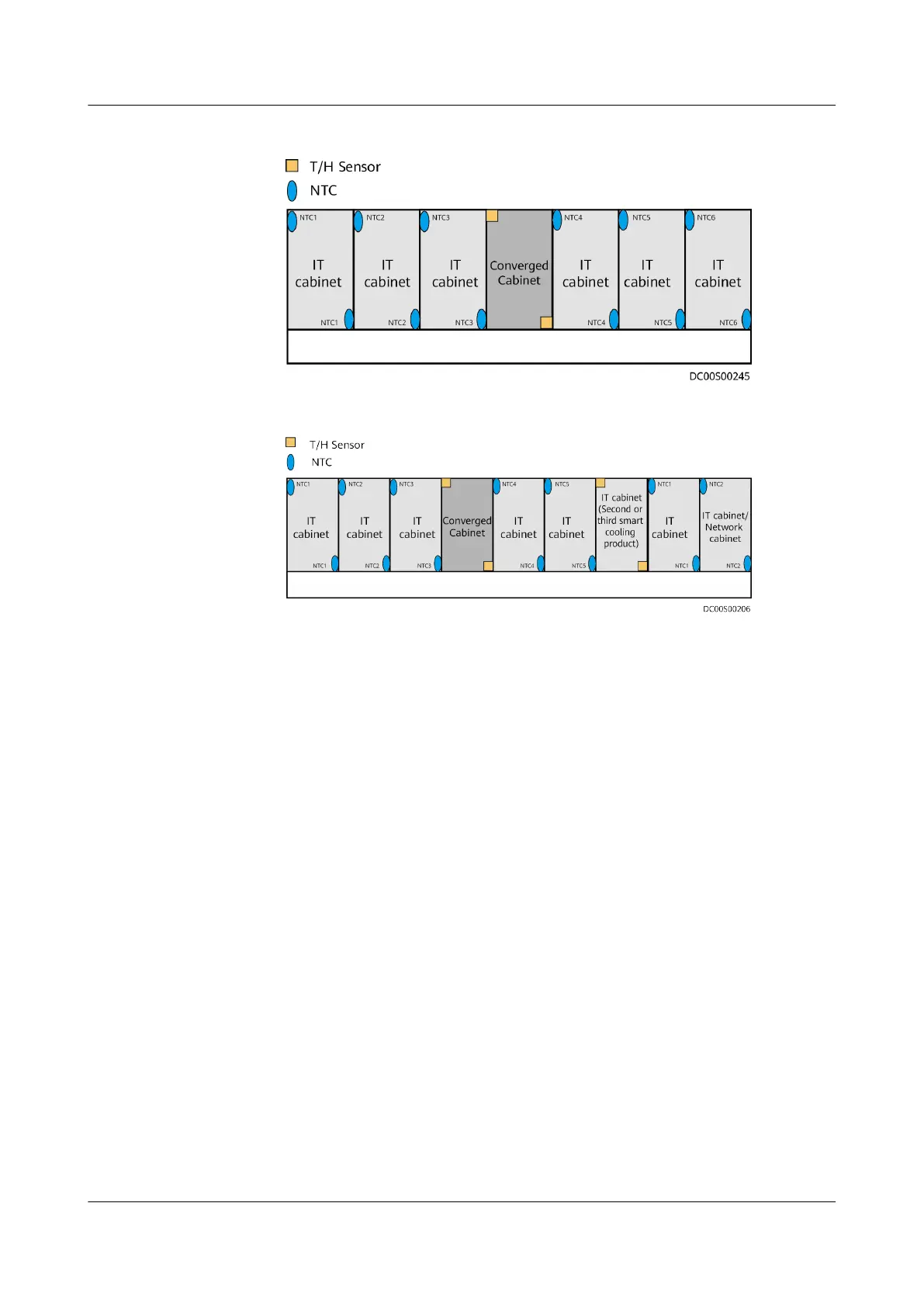

Figure 4-109 Temperature sensor conguration (example 1)
Figure 4-110 Temperature sensor conguration (example 2)
4.2.9.4.2 Installing T/H Sensors
Procedure
Step 1 Install T/H sensors.
1. Open the front door of a cabinet.
2. Install the T/H sensor base at the right post position of the IT cabinet about
1.6 m high above the
oor in the aisle, and then clamp the T/H sensor onto
the base.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 175
