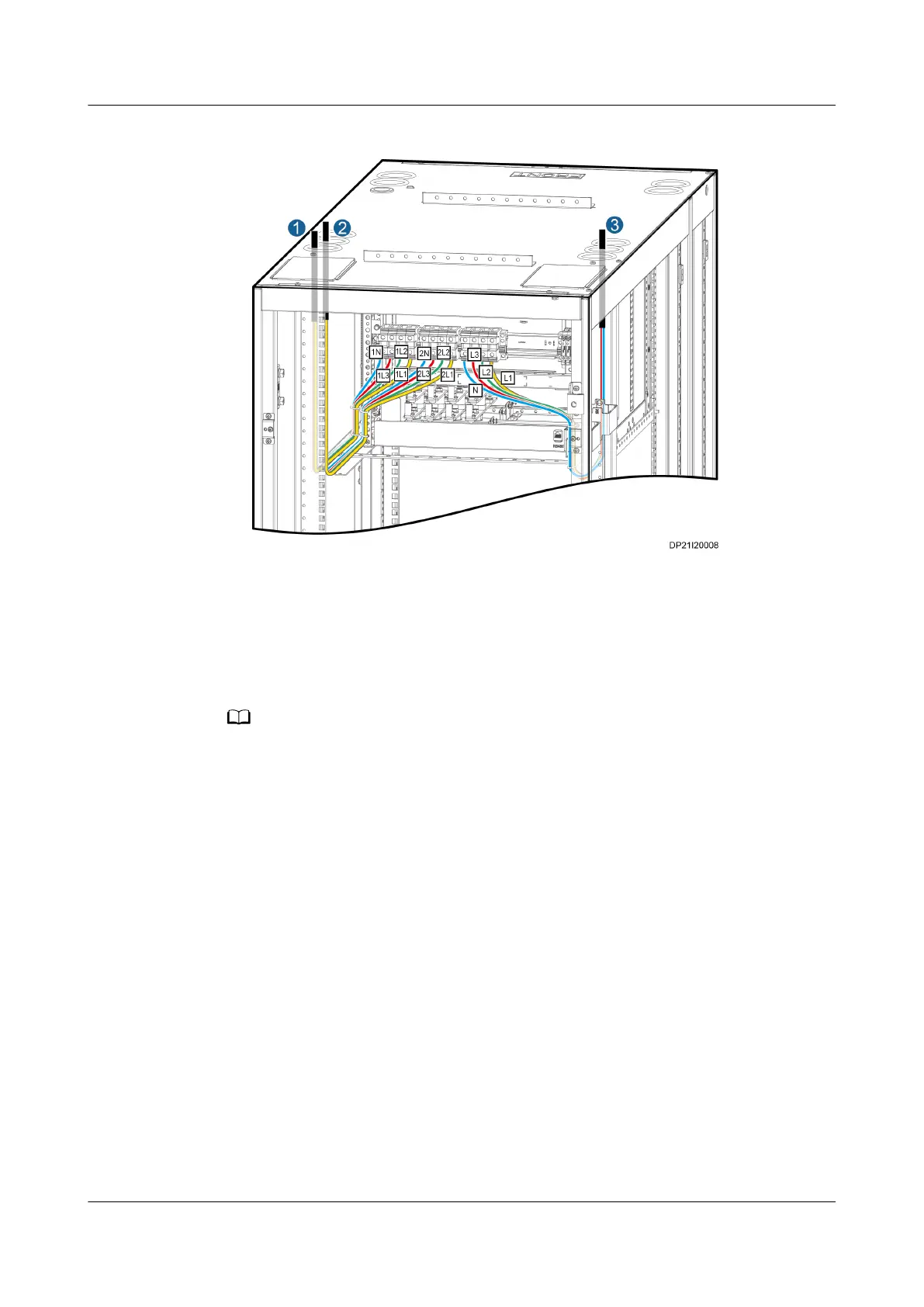

Figure 4-198 Connecting cables to the ATS subrack
(1) ATS I input (2) ATS II input (3) ATS output (to the
Converged Cabinet)
4.3.5.1.3 Connecting Input Power Cables to the Converged Cabinet
Context
● For details about the cable connection positions in the Converged Cabinet, see the
Electrical Wiring Diagram
.
● The power distribution subrack position in the cable connection description is for
reference only. The actual position prevails.
Procedure
Step 1 Connect input power cables to the PDU.
1. Remove the transparent protective panel at the rear of the PDU.
2. Connect input power cables to the PDU.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 227
