6.4.4.14 Replacing a WLDS900 Water Sensor and Water Detection Rope
Prerequisites
● Recommended tools and materials: Phillips screwdriver, crimping tool
● A water sensor needs to be replaced.
● A spare water sensor of the same model is available and functional.
Context
The water detector is installed in the Converged Cabinet and bound to the rack
rail using cable ties. The binding position is 5 U away from the cabinet bottom.

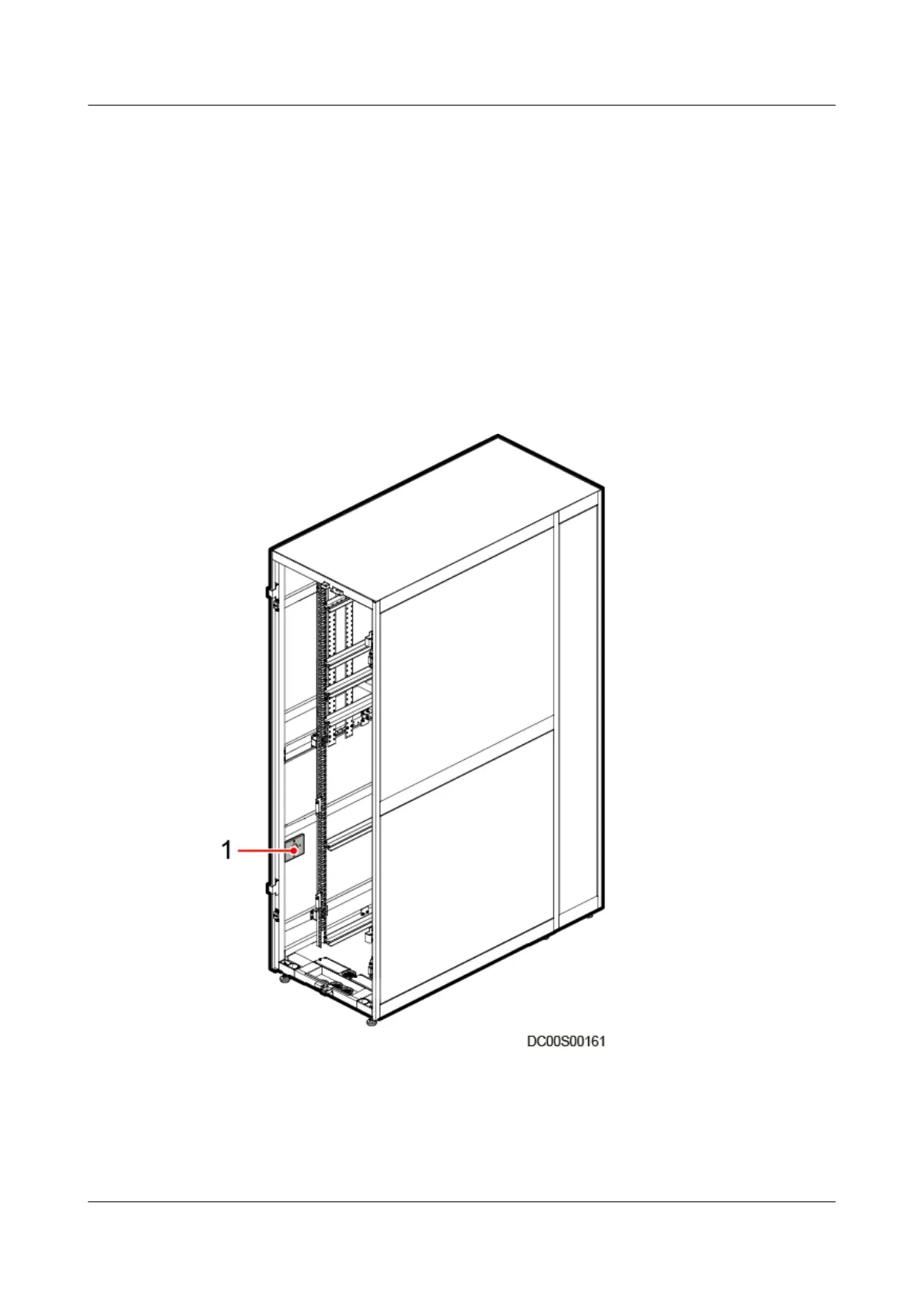

Figure 6-65 Sensor positions
(1) Smoke detector
A water sensor consists of a water detection rope, water detector, and conversion
cable. The water detection rope is laid out on the oor and connected to the
water detector placed near the collector by the conversion cable.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 475
