Procedure
Step 1 Remove the screw that secures the card reader with a keypad, and remove the
cable, as shown by (1), (2), and (3) in Figure 6-80.

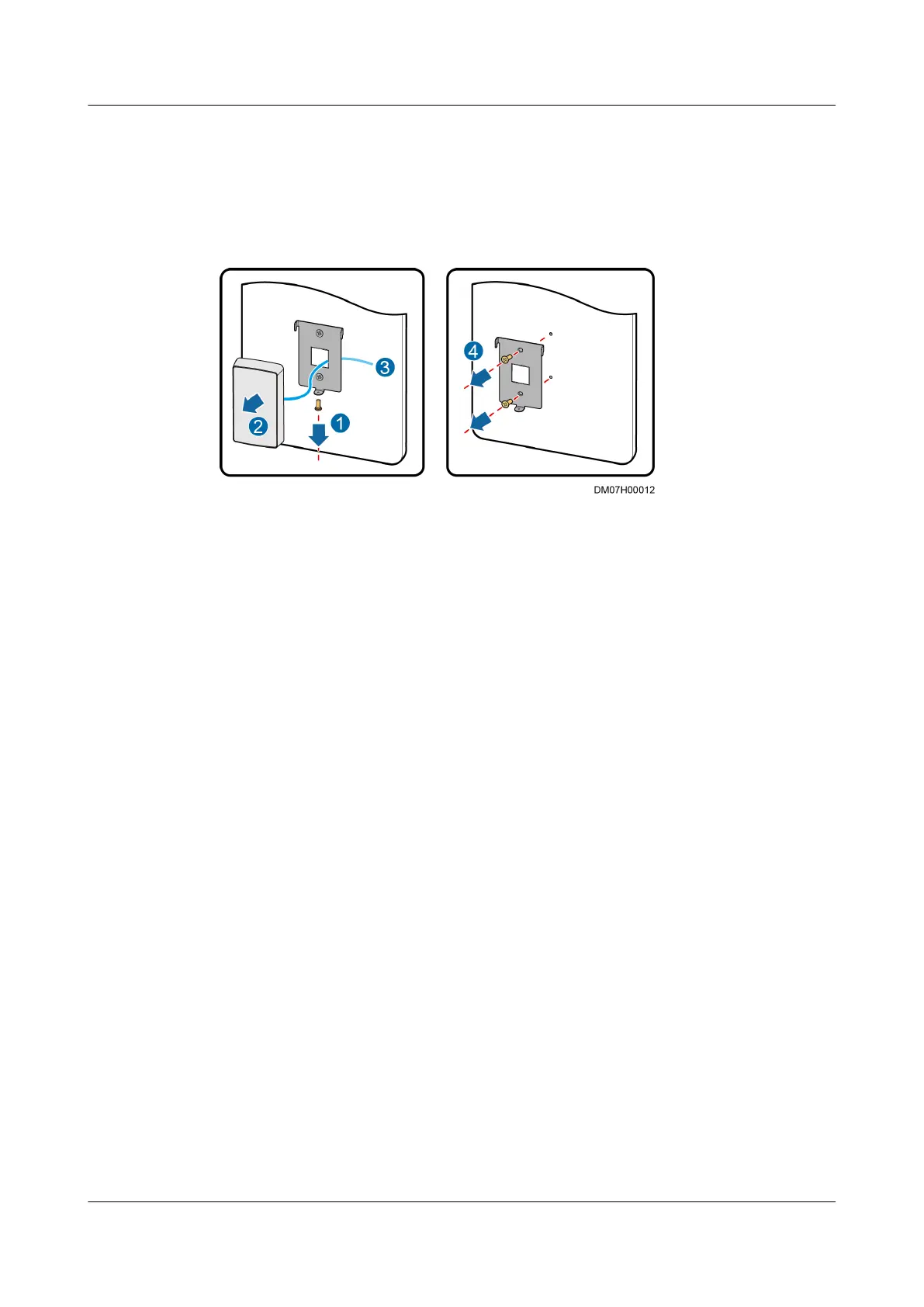

Figure 6-80 Removing the bottom plate
Step 2 Remove the original bottom plate, as shown by (4) in Figure 6-80.
Step 3 Take out the bottom plate of the new card reader with a keypad and secure it.
Step 4 Connect the cable.
Step 5 Secure the card reader with a keypad to the bottom plate.
Step 6
Congure the new card reader with a keypad by following the instructions
provided in the document delivered with it.
Step 7 Choose Monitoring > System > ECC800 > Controls and delete the device failing
in communication.
Step 8 Refer to the section about commissioning the in-room access control system in the
installation guide and check that the
ngerprint and card reader with a keypad
functions properly.
----End
Follow-up Procedure
Congure the new card reader with a keypad by following the instructions
provided in the document delivered with the ECC800-Pro.
6.4.4.23 Replacing an Emergency Door Release Button
Prerequisites
● Recommended tool: Phillips screwdriver
● An emergency door release button needs to be replaced.
● A spare emergency door release button of the same model is available and
functional.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 486
