Indicat
or
Color Name Status Description
Blinking The indicator blinks at super
short intervals for 0.5s
(blinking at 10 Hz, on for
0.05s and then o for 0.05s)
and then turns o for 0.5s.
The cycle lasts for 10s.
ALM Red Alarm
indicator
Steady on A system failure alarm is
generated.
O No system alarm is
generated.
3.4.3.6 Smart ETH Gateway
A smart ETH gateway allows the extension of the 53.5 V DC power supply and FE
communication for the ECC800-Pro and can be
exibly deployed in a smart
module.

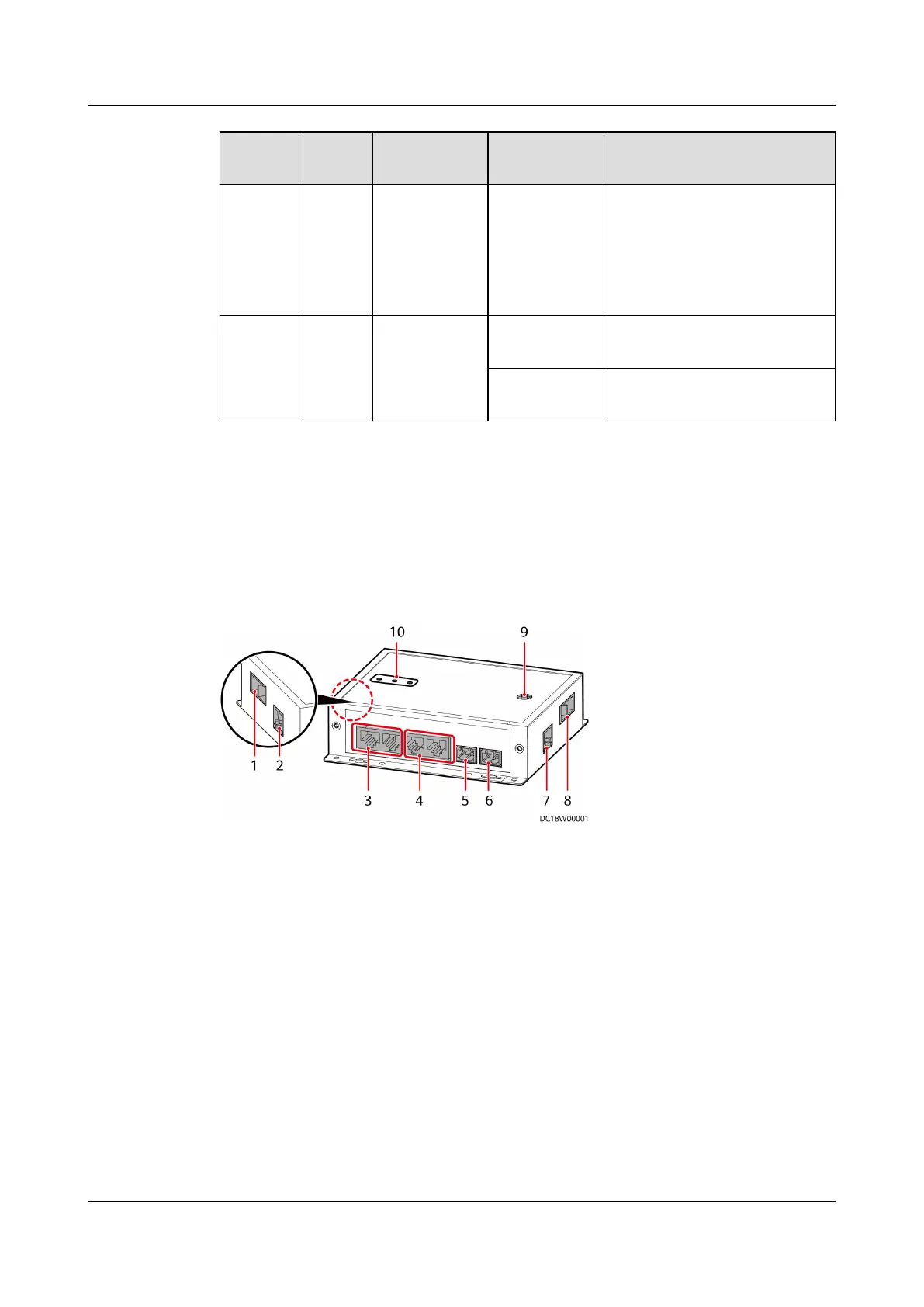

Figure 3-32 Smart ETH gateway
(1) PWR_IN cascading
power port
(2) FE_1 cascading
signal port
(3) POE_1–2 ports (4) POE_3–4 ports
(5) 48V_OUT1 power
output port
(6) 48V_OUT2 power
output port
(7) FE_2 cascading
signal port
(8) PWR_OUT
cascading power port
(9) BLINK button (10) Status indicator
FusionModule800 Smart Small Data Center
User Manual 3 System Architecture
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 62
