3.4.1 Overview
The management system implements data collection and management for various
processes and infrastructure of the smart module.
The ECC800-Pro manages the real-time status, alarms, and conguration
information about the devices inside the smart module. It also provides a
graphical user interface (GUI) for ease of operating and maintaining devices inside
the smart module.

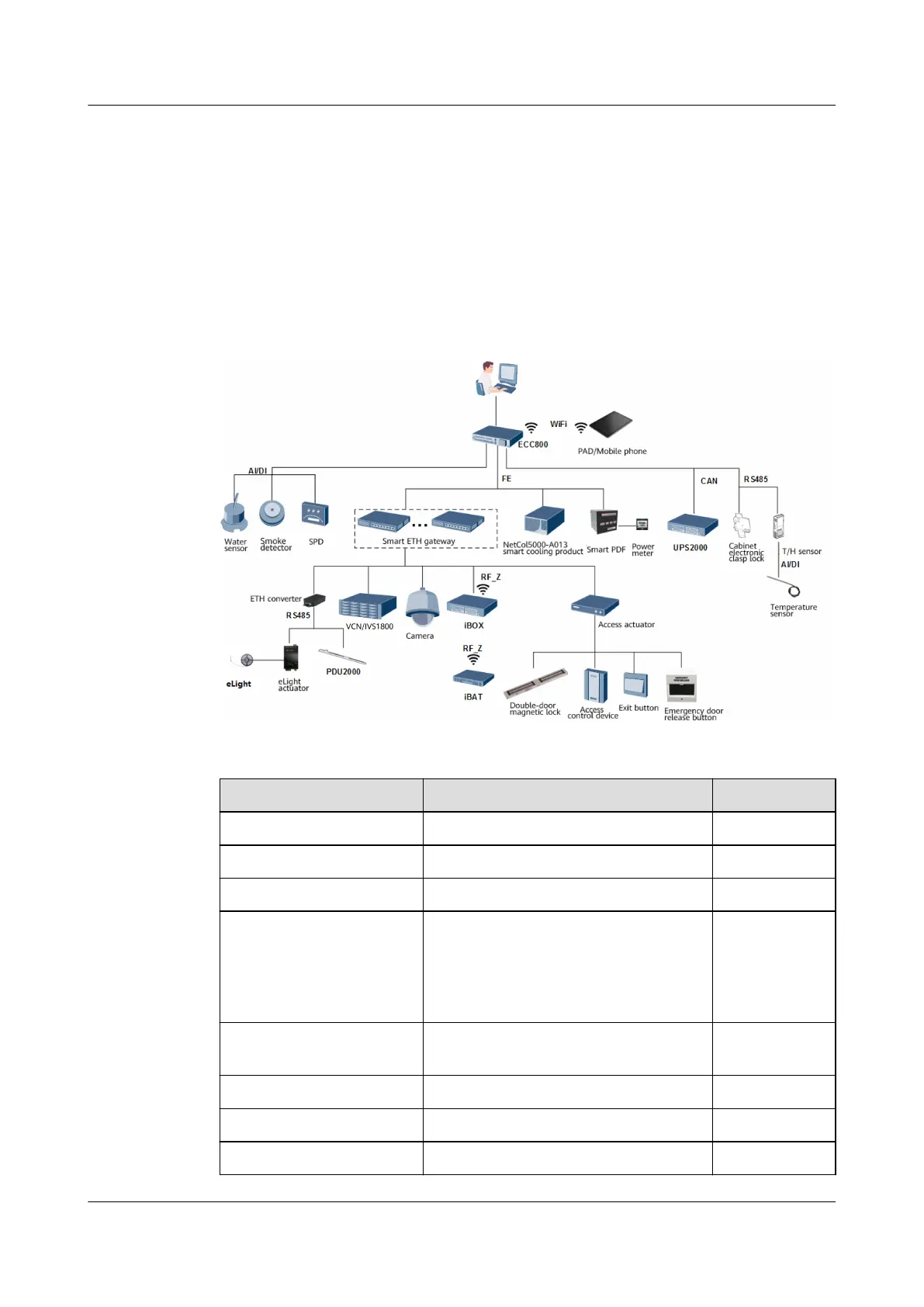

Figure 3-22 Management system network diagram
Table 3-14
Network diagram description
Device
Maximum Quantity Port
Camera 3 FE
VCN/IVS1800 1 FE
Smart ETH gateway 8 FE
Access actuator 2 (One access actuator connects to
at most one magnetic lock, one
access control device, one exit
button, and one emergency door
release button.)
FE
NetCol5000-A013 smart
cooling product
4 FE
UPS2000 4 RS485
Smoke detector 1 DI
T/H sensor 8 RS485
FusionModule800 Smart Small Data Center
User Manual 3 System Architecture
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 42
