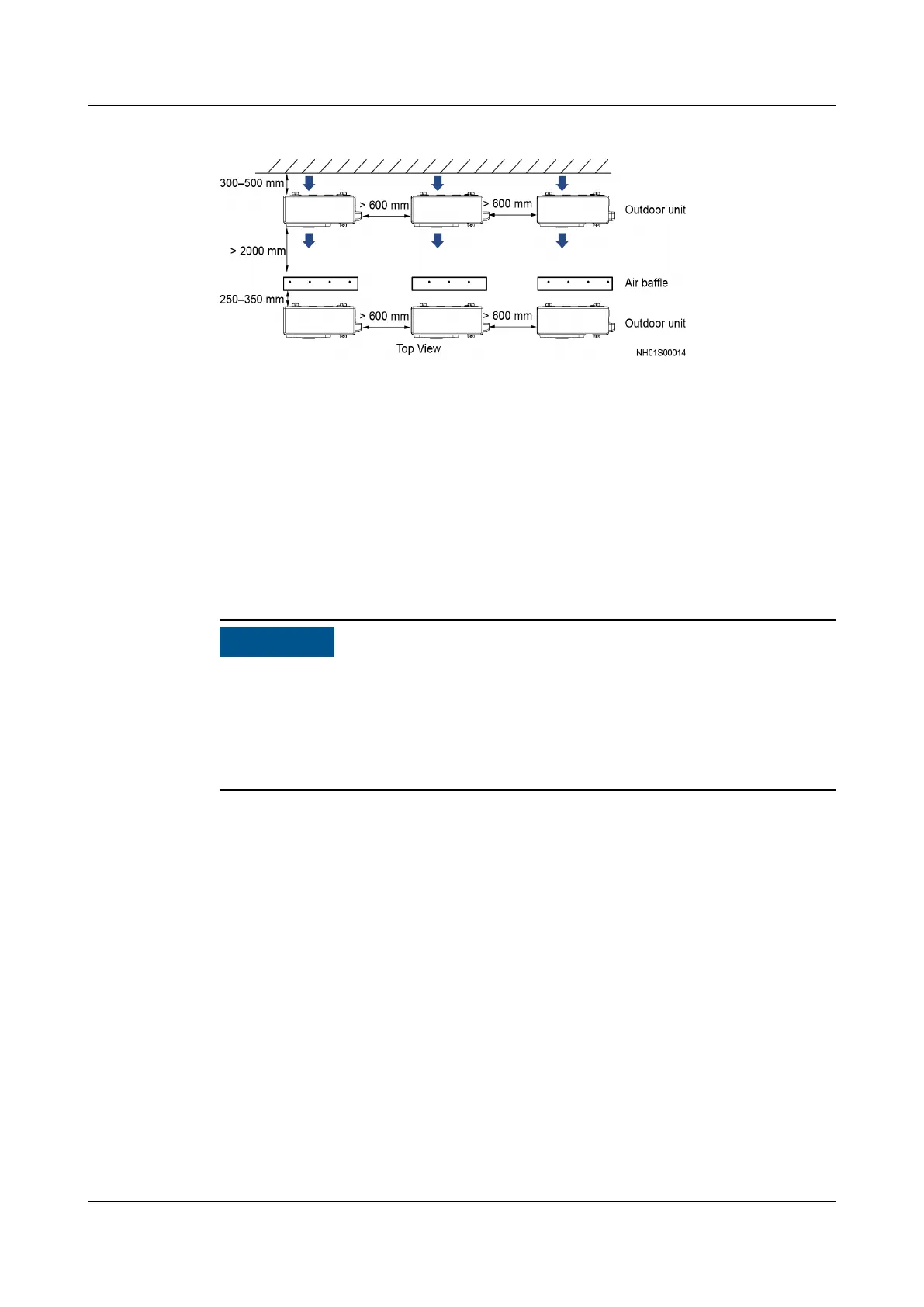

Figure 4-45 Space requirements for installing multiple outdoor units
4.2.6.3.3 Securing an Outdoor Unit
Prerequisites
● The M10 expansion bolts used for securing an outdoor unit have been
prepared.
● The concrete groundwork is prepared.
Context
● Move the outdoor unit close to the installation position before unpacking. You
are recommended to stand the outdoor unit during transportation. If tilt is not
avoidable, the tilt degree cannot exceed 15°.
● Do not hold the fan guard on the shell. Otherwise, it will be deformed.
● Do not touch the blades using hand or any other object.
Procedure
Step 1 Determine the four mounting holes of the outdoor unit based on the installation
dimensions and drill holes in the concrete base.
Step 2 Align the outdoor unit mounting holes with the holes in the concrete base, and
secure the outdoor unit to the concrete base using four M10 expansion bolts, as
shown in Figure 4-46.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 129
