(7) Transformer

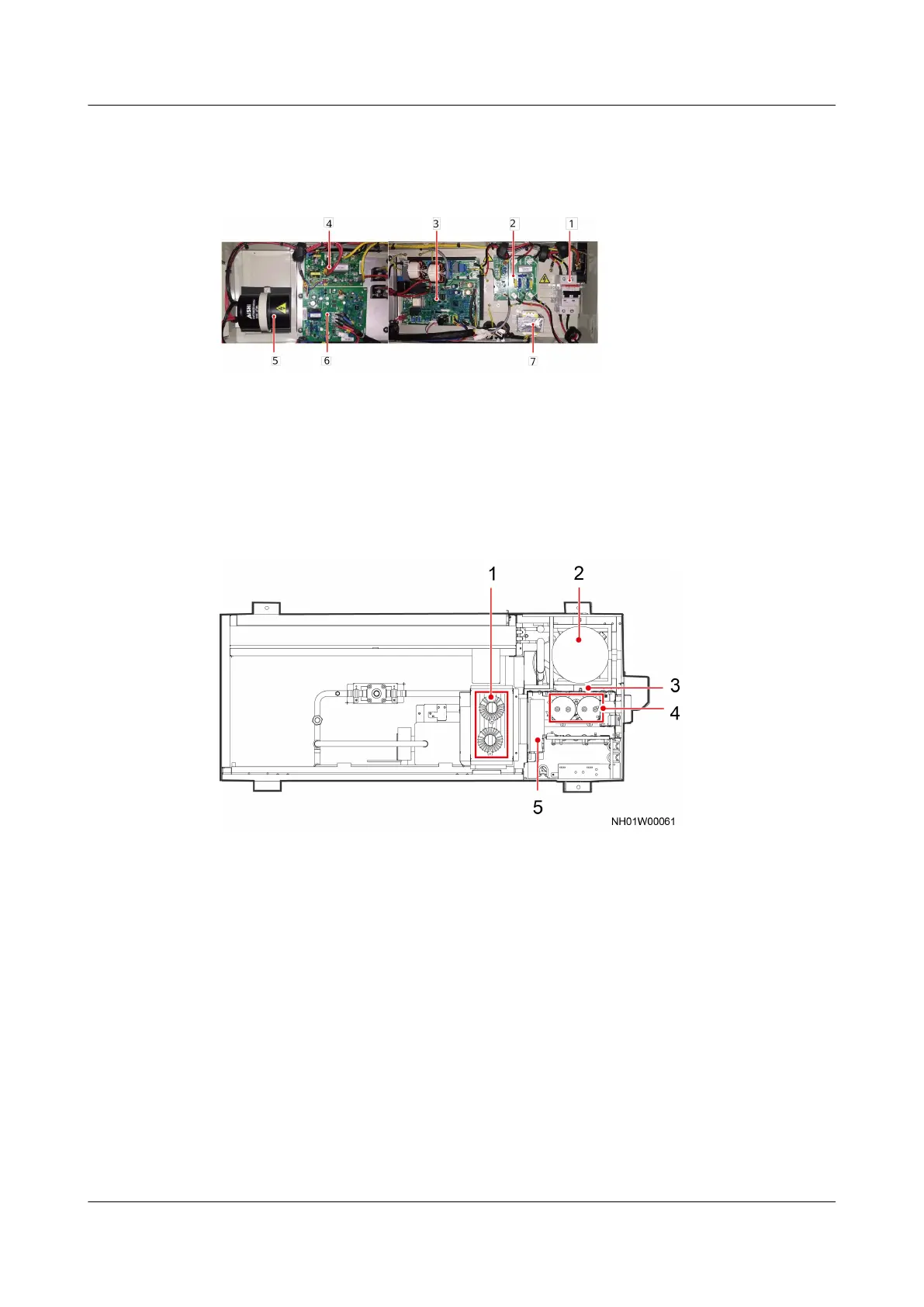

Figure 6-26 NetCol500-A018 components (top view)
(1) Circuit breaker (2) Surge protection board
(SPD)
(3) Outdoor unit control board
(4) PFC board (5) Large capacitor (6) Compressor drive (IPM)
board
(7) Transformer
Figure 6-27 NetCol500-A021 components (top view)
(1) Inductor
(2) High pressure container (3) Control board
(4) Capacitor (5) Module board
6.4.3.2.1 Replacing an Outdoor Fan
Prerequisites
● An outdoor fan needs to be replaced.
● A spare outdoor fan of the same model is available and functional.
Context
● Tools: Phillips screwdriver, small wrench, cable tie, diagonal pliers.
● Preparation: Power o the outdoor unit.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 434
