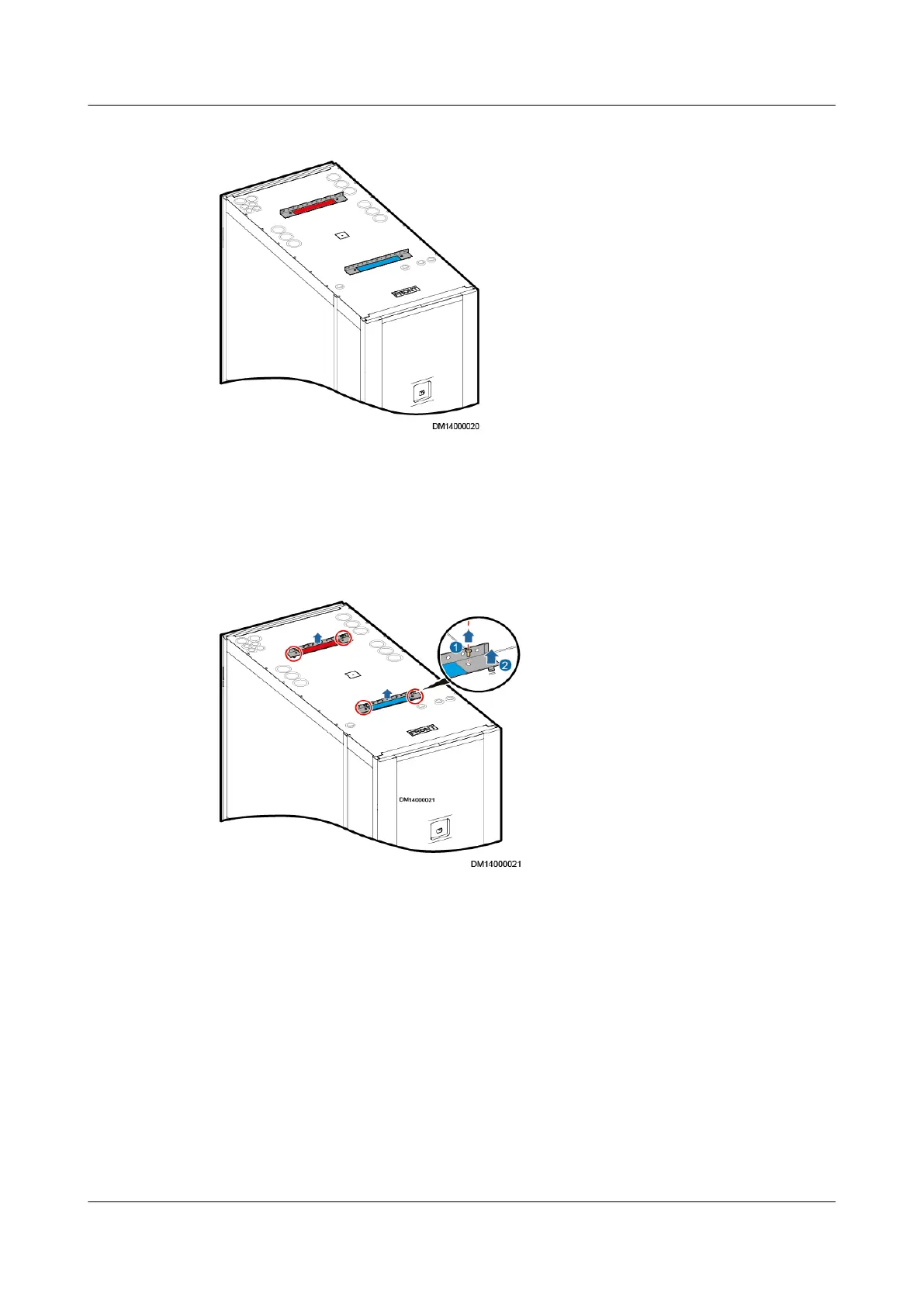

Figure 4-87 Binding plate installation position
Procedure
Step 1 Remove the two M5 tapping screws from the binding plate and then remove the
binding plate from the cabinet top.
Figure 4-88 Removing a binding plate
Step 2 Remove other binding plates in the same way.
----End
4.2.8.2 Installing a 600 mm Wide Cable Trough
Context
Install two 600 mm wide cable troughs on the top of every 600 mm wide cabinet.
When installing cable troughs,
rst install two cable troughs at the top of the end
cabinet, and then install the other cable troughs at the top of other cabinets along
the aisle in sequence.
Figure 4-89 shows a 600 mm wide cable trough. Its BOM number is 21501142.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 164
