Step 5 On the ECC800-Pro WebUI, choose Monitoring > Aisle > eLight Actuator Group
> eLight Actuator, and check the parameters and communication status of the
eLight actuator to ensure that the device communication is normal.
----End
6.4.4.18 Replacing an eLight Power Supply
Impact on the System
The eLight strip light is o during replacement.
Prerequisites
● Tools: ESD gloves, Phillips screwdriver, step ladder, label, marker
● Material: eLight actuator

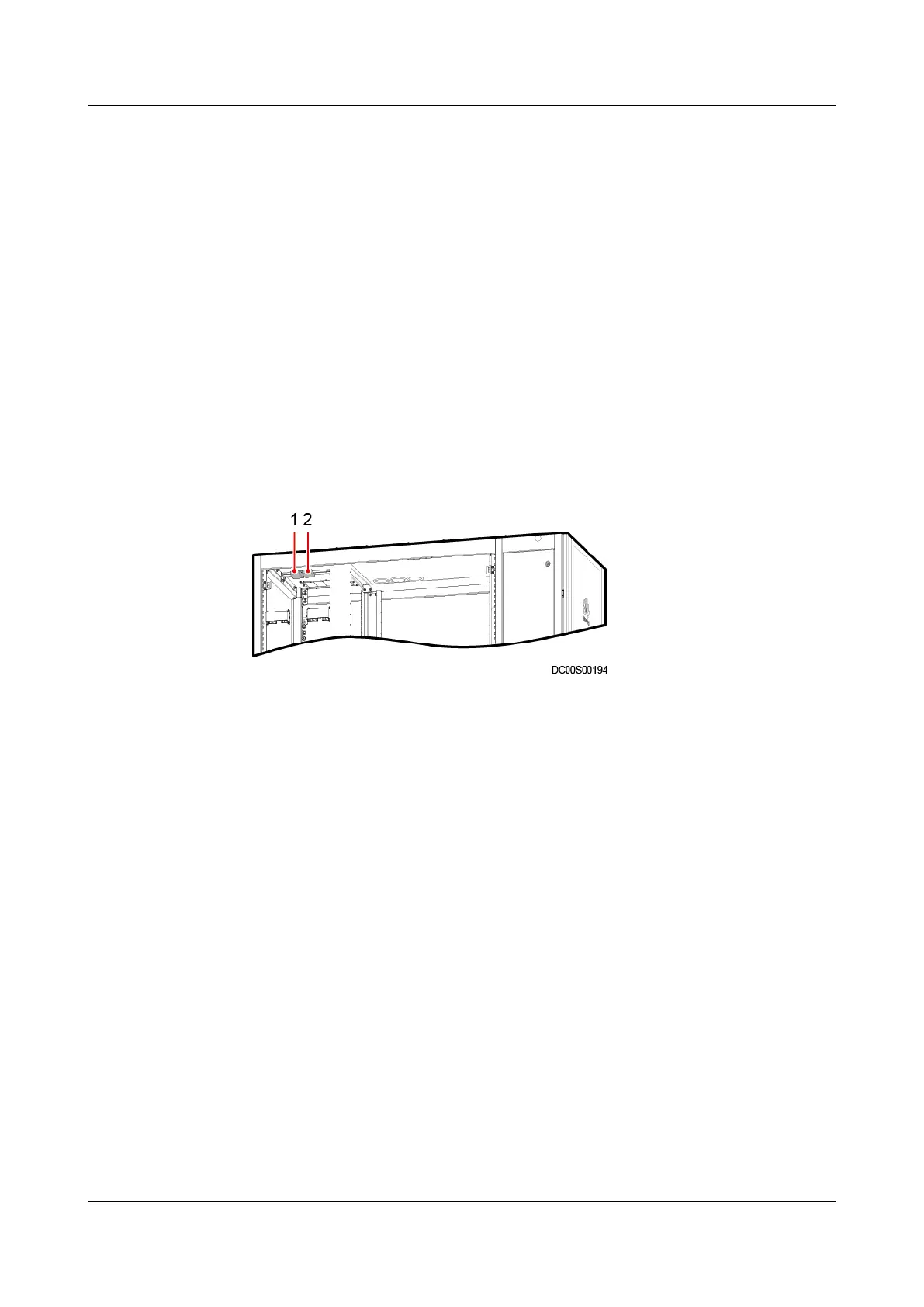

Figure 6-72 Positions of the eLight actuator and power module
(1) eLight actuator
(2) eLight power module
Procedure
Step 1 Disconnect the upstream fuse for the eLight power supply.
Step 2 Label each cable based on the corresponding ports on the eLight actuator.
Step 3 Remove cables from the eLight actuator.
Step 4 Remove the old eLight actuator from guide rails.
Step 5 Install the spare eLight actuator in the original position and connect the cables.
Step 6 Connect the upstream fuse for the eLight power supply.
----End
6.4.4.19 Replacing an Access Actuator
Prerequisites
● Recommended tool: Phillips screwdriver
● An access actuator needs to be replaced.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 480
