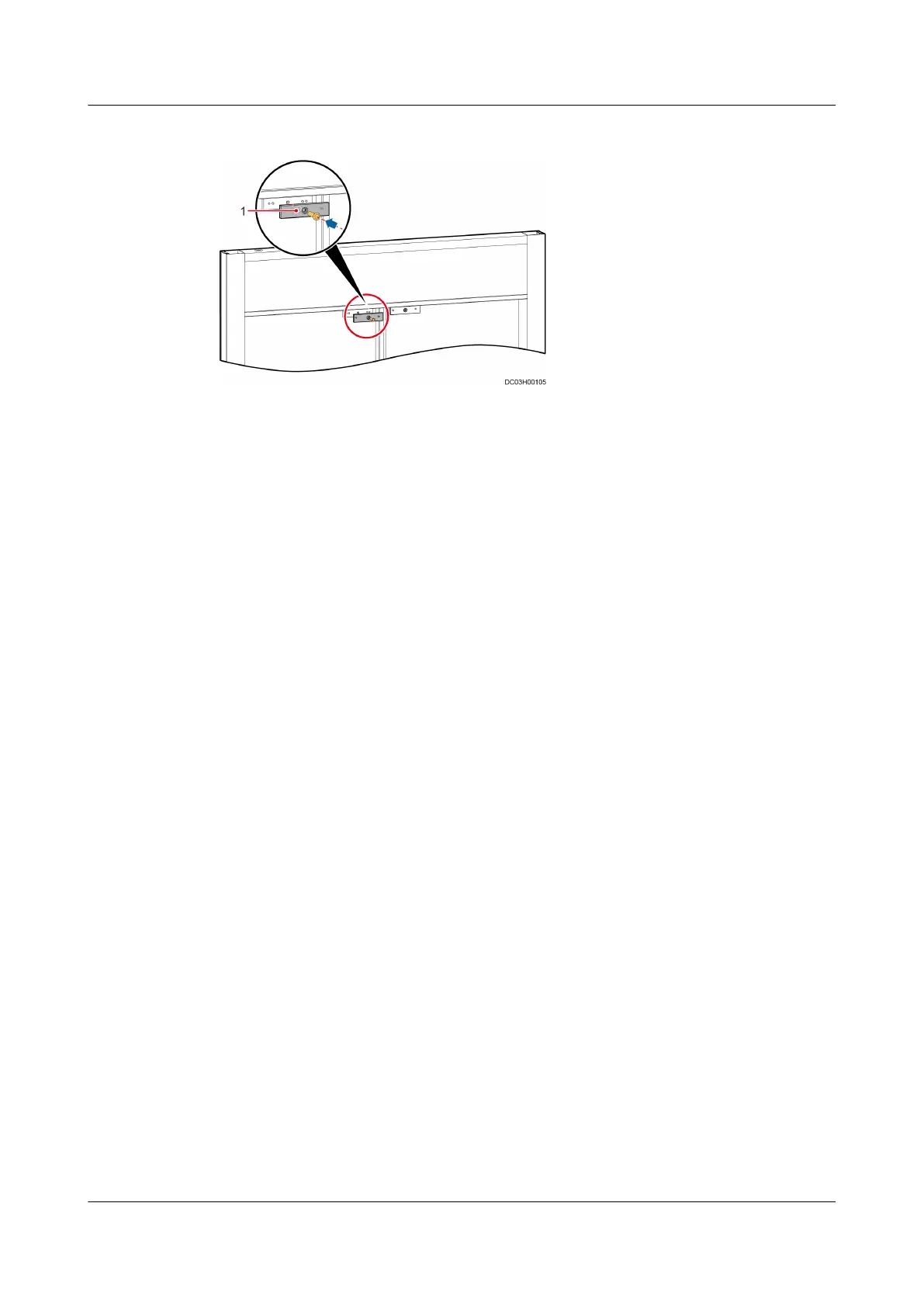

Figure 4-162 Installing the magnet
(1) Rubber pad
Step 7 (Optional) Adjust the magnet.
1. If the magnet cannot attract the door properly after power-on, place a
magnetized metal part near the magnet to check whether the magnet
provides a proper magnetic force.
2. If the magnetic lock and the magnet do not work properly, check and
troubleshoot the circuit.
----End
4.2.9.13 (Optional) Installing an In-Room Single Door Magnetic Lock
Prerequisites
● Verify that the room door is a revolving single-swing wooden door, and that
the door frame is wider than 42 mm.
● The cable routes are planned.
Context
● The BOM number of a single door magnetic lock is 02070081.
● A single door magnetic lock is installed on a room door.
Procedure
Step 1 Fold the cutout template delivered with the device 90 degrees along the dotted
line, as shown by (2) in Figure 4-163.
Step 2 Close the door, place the cutout template near the door top at the far end of the
door axis, mark the mounting holes, and drill holes, as shown in Figure 4-163.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 205
